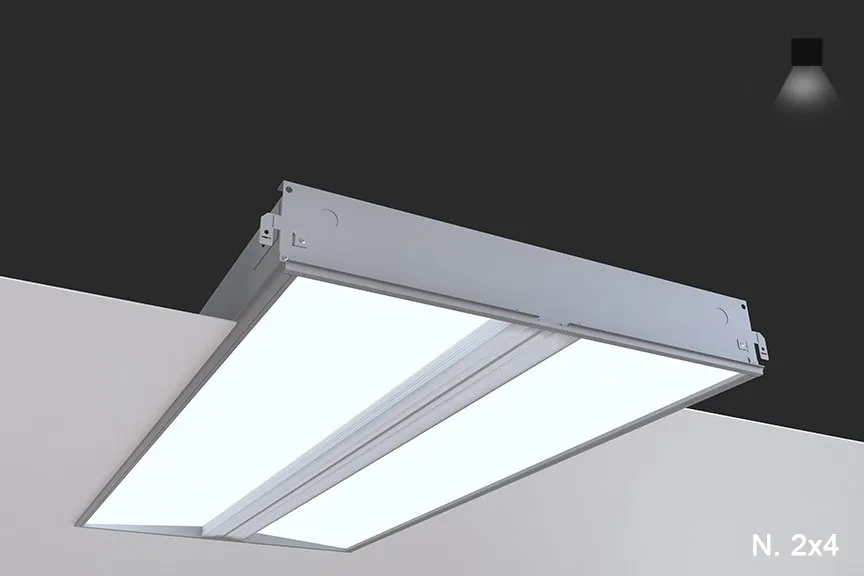

2 ft by 4 ft recessed troffer with a central aluminum rail for sensor integration, delivering 5,000 or 7,000 lumens at up to 103 lm/W in 2700-4000K.
| Wattage | 48.5–70.5 W |
|---|---|
| Luminous flux | 5000–7000 lm |
| Efficacy | 99 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Recessed (15/16 flat tee grid), Recessed (9/16 flat tee grid), Recessed (9/16 tegular / slot grid tee), Recessed (sheetrock ceiling) |
| Dimensions | 24" x 48" (2x4); 3-1/2" fixture height |
| Distribution | Direct |
| Finishes | Standard White (powder coat), Custom (consult factory) |
| Dimming | 0-10V 1% dimming standard; non-dim and Lutron EcoSystem 1% selectable; PoE, DALI, DMX on request; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Rail 2x4 is the 24-by-48-inch member of Picasso Lighting's Rail Series, a relative of the Jacqueline and EZ-Rail troffers built with an aluminum rail in the center instead of an acrylic panel, allowing occupancy sensors and other sensing equipment to be installed in the fixture. The housing is die-formed 20-gauge steel with an integral powder-coated high-reflectivity LED reflector and a 3-1/2 inch fixture height; side lenses are frosted standard or soft white acrylic optional, with lift-and-shift removal. Published packages deliver 5,000 total lumens at 48.5 W (103 lm/W) or 7,000 total lumens at 70.5 W (99 lm/W) at 3000K, in 2700K, 3000K, 3500K, and 4000K at 80+ or 90+ CRI, with tunable white and warm dim available as special LED colors. Drivers are UL-recognized, universal 110-277 VAC with 0-10V 1% dimming standard; non-dim, Lutron EcoSystem 1%, and custom controls are selectable, with PoE, DALI, and DMX available on request, plus options for emergency battery backup, occupancy sensor, plaster frame with remote driver, and Lutron Athena wireless nodes. It mounts recessed in slot grid, T-bar, and sheetrock ceilings, is IBEW manufactured and assembled in the USA with a BABAA-compliant ordering option, UL listed for dry and damp locations, rated for 50,000-hour LED life, and covered by a limited five-year warranty.
Pick from Rail 2x4's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
