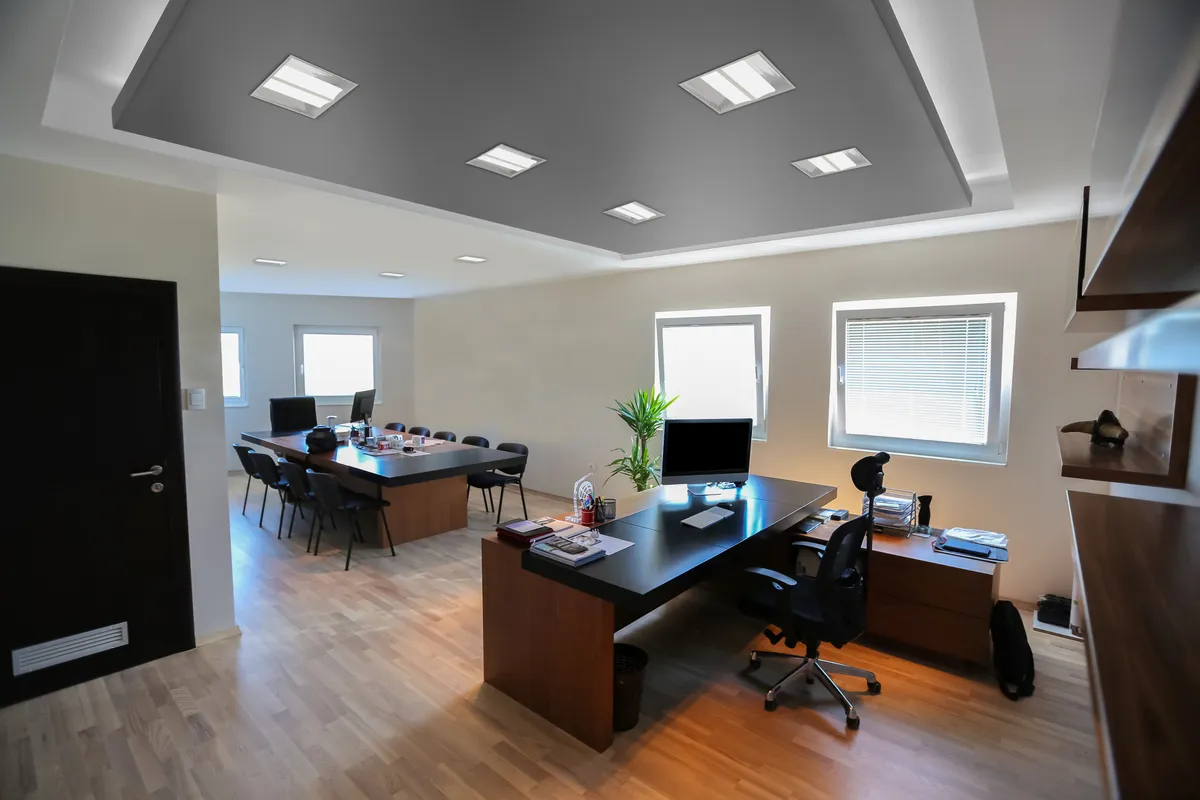

2 ft by 2 ft recessed troffer with a thin aluminum center rail and oblique acrylic lenses, delivering 2,800 lumens at 34 W in 2700-4000K plus tunable white.
| Wattage | 34 W |
|---|---|
| Luminous flux | 2800 lm |
| Efficacy | 82 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Recessed (15/16 flat tee grid), Recessed (9/16 flat tee grid), Recessed (9/16 tegular / slot grid tee), Recessed (sheetrock ceiling) |
| Dimensions | 24" x 24" (2x2); 4-1/4" fixture height |
| Distribution | Direct |
| Finishes | Standard White (powder coat), Custom (consult factory) |
| Dimming | 0-10V 1% dimming standard; non-dim and Lutron EcoSystem 1% selectable; PoE, DALI, DMX on request; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Eliana 2x2 is the 24-inch-square member of Picasso Lighting's Eliana Series, a relative of the Jacqueline and Rail troffers that pairs a thin aluminum center rail with oblique acrylic lenses to hide and diffuse the LED boards. The housing is die-formed 20-gauge steel with welded and sanded corners for a seamless troffer with no light leaks, an integral powder-coated high-reflectivity reflector, frosted extruded swing-down lenses, and a 4-1/4 inch fixture height. The published package delivers 2,800 total lumens at 34 W (82 lm/W at 3000K), in 2700K, 3000K, 3500K, and 4000K at 80+ or 90+ CRI, with tunable white 2700-5000K also selectable. Drivers are UL-recognized, universal 110-277 VAC with 0-10V 1% dimming standard; non-dim, Lutron EcoSystem 1%, and custom controls are selectable, with PoE, DALI, and DMX available on request, plus options for emergency battery backup, occupancy sensor, 6 ft whip, and Lutron Athena wireless nodes. Recessed-only, mounting in slot grid, T-bar, and sheetrock ceilings, it is IBEW manufactured and assembled in the USA with a BABAA-compliant ordering option, UL listed for dry and damp locations, rated for 50,000-hour LED life, and covered by a limited five-year warranty.
Pick from Eliana 2x2's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
