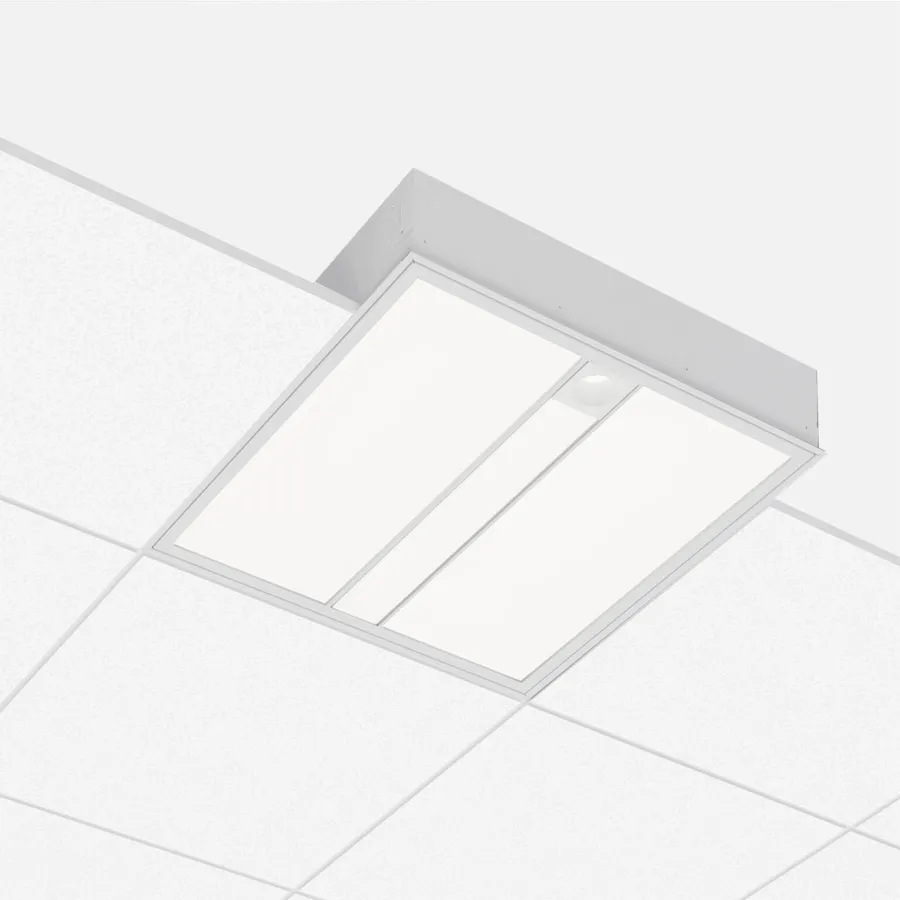

Healthwerx multifunctional medical troffer in recessed 2'×2' and 2'×4' sizes, combining a gasketed EPDO center optic with frosted or nano-prismatic side optics for Exam, Ambient, and optional Reading modes — 4000 to 12 500 delivered lumens at up to 120 lm/W, in static white, BIOS, or Full Spectrum, sealed IP44/IP54/IP64.
| Wattage | 35–120 W |
|---|---|
| Luminous flux | 4000–12500 lm |
| Efficacy | 104 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Recessed (grid ceiling), Recessed (drywall trim kit) |
| Dimensions | Recessed 2'×2' and 2'×4'; T-bar / tegular grid or drywall trim-kit mounting |
| Distribution | Direct |
| Finishes | Matte white, Aluminum, White Antimicrobial (Silverwerx), Custom |
| Dimming | 0–10V 1% standard; DALI; Lutron Hi-lume 1% EcoSystem; PoE compatible; 120V / 277V / 347V input |
| Rated environments | Dry, Damp location |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Medico Plus is Lumenwerx's Healthwerx multifunctional medical troffer, designed to address both patient and staff needs in multi-patient healthcare rooms with low-glare illumination and no light trespass. Recessed in 2'×2' and 2'×4' sizes for T-bar/tegular grid ceilings or drywall ceilings with a trim kit, it pairs a central Environmentally Protected Direct Optic (EPDO) — a gasketed polycarbonate lens flanked by white side-kicking reflectors — with side optics available as a Uniform Lambertian Optic (ULO, frosted acrylic) or Nano-Prismatic Optic (NPO). Independent function control drives Exam and Ambient modes, with an optional Medico Plus Reading Function (MPRF) module adding a 537–1338 lm reading light in 10°–90° beams. Delivered output (side + center) runs from 4000 lm on the 2'×2' to 12 500 lm on the 2'×4' — meeting IES RP-29-16 when total output is at least 11 000 lm at a 9' mounting height — with efficacy published up to 120 lm/W. The light source is a custom mid-flux LED array in 2700/3000/3500/4000K at 80+ CRI (90+ CRI with elevated R9 optional, 3 SDCM), with BIOS SkyBlue Static/Dynamic circadian and Full Spectrum options that raise the Cyanosis Observation Index; Chromawerx SOLA and DUO tuning are also available. Sealing is tiered: a gasketed frame (GFR) is IP44, a gasketed side optic (GSO) is IP54, and a polycarbonate door with tamper-resistant screws (PTR) is IP64 and IK10. LEDs are LM-80 tested to L80 > 60,000 hours. Dimming reaches 1% via 0–10V, DALI, or Lutron Hi-lume 1% EcoSystem, with PoE compatibility, on 120V, 277V, or 347V input. ETL listed for indoor dry/damp locations, NSF2 listed for non-food zones, offered in matte white, aluminum, or White Antimicrobial Silverwerx finishes, and backed by a five-year limited warranty.
Pick from Medico Plus's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
