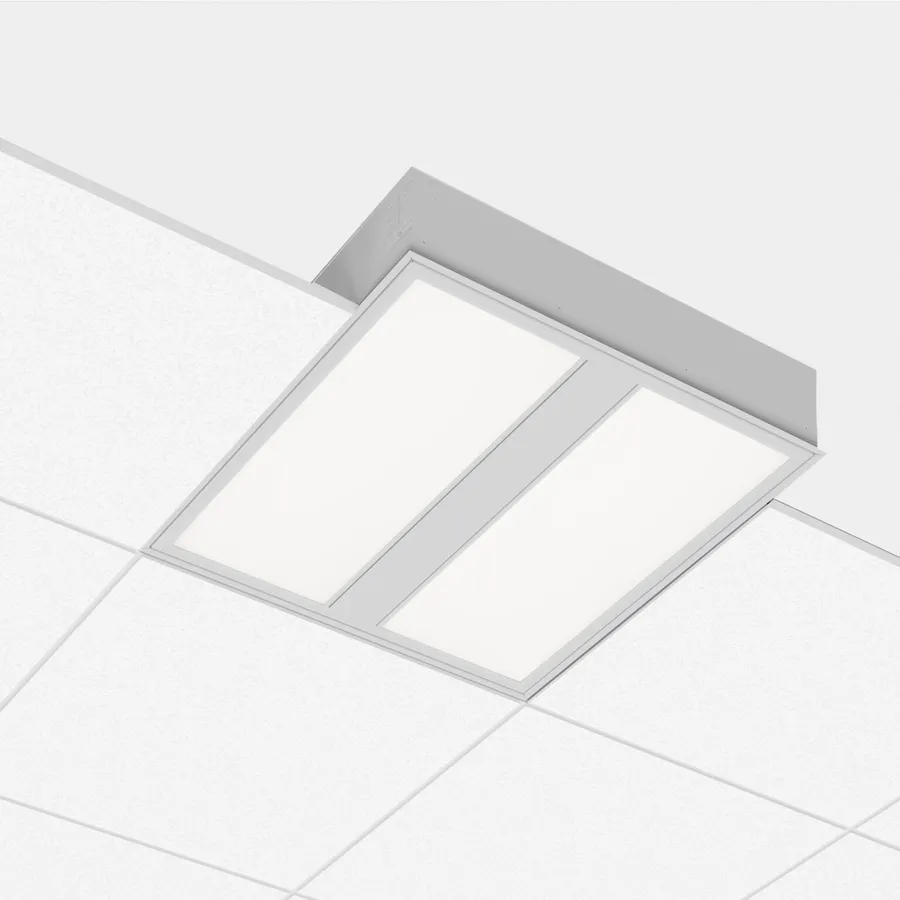

Healthcare medical troffer in recessed 2'x2' and 2'x4' sizes, delivering 1500 to 11 000 lm of low-glare ambient light through Lambertian or Nano-Prismatic side optics, with an optional central parabolic-louver, downlight, or micro-spot exam module, in static white, BIOS circadian, or Full Spectrum.
| Wattage | 10.8–89.1 W |
|---|---|
| Luminous flux | 1500–11000 lm |
| Efficacy | 123 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Recessed (grid ceiling), Recessed (drywall trim kit) |
| Dimensions | Recessed 2'x2' (23" nominal) and 2'x4' (47" nominal) troffer for exposed/concealed T-bar, tegular, or drywall ceilings; 4 1/64" fixture depth; 2'x2' 28 lb / 2'x4' 55 lb |
| Distribution | Direct |
| Finishes | Matte white, Aluminum, White antimicrobial (Silverwerx), Custom (RAL) |
| Dimming | 0-10V 1% (D1), DALI, Lutron Hi-lume 1% EcoSystem, and step dimming (10%-70%); low-voltage controller (LVC) for patient pillow-switch / bed-rail / wall-switch Exam and Ambient control; PoE compatible; 120/277/347V input |
| Rated environments | Dry, Damp location |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Medico is Lumenwerx's Healthwerx medical troffer, a recessed 2'x2' or 2'x4' luminaire engineered to serve both patients and staff in healthcare spaces. Ambient illumination is delivered by side optics — a Uniform Efficiency Lambertian Optic (ULO, up to 88% transmission) or a glare-free Nano-Prismatic Optic (NPO) — in delivered packages from 1500 lm (2'x2') up to 11 000 lm (2'x4'), at efficacies published up to 139 lm/W. The central channel can be left blank or fitted with a parabolic louver, a COB downlight, or one/two micro-spot exam modules, so a single fixture provides both Ambient and Exam functions (meeting ANSI/IES RP-29-16 when total side-plus-module output reaches 11 000 lm at a 9' mounting height). Static white is offered in 2700/3000/3500/4000K at 80 CRI or 90 CRI with elevated R9 (3 SDCM), with a 95 CRI Full Spectrum option, plus BIOS SkyBlue Static and Dynamic circadian solutions that shift peak spectral intensity toward the sky-blue circadian response. Environmental sealing scales across the family: an IP44 gasketed frame (GFR), an IP54 gasketed side optic (GSO), or an IP64/IK10 polycarbonate door with tamper-resistant screws (PTR). Fixtures dim via 0-10V 1%, DALI, Lutron Hi-lume 1% EcoSystem, or step dimming, and can be driven from a patient pillow switch, bed rail, or wall switch through the low-voltage controller (LVC); PoE is compatible, and 120/277/347V input is supported. Finishes include matte white, aluminum, White antimicrobial Silverwerx, and custom RAL. ETL listed to UL 1598 and CSA C22.2 No. 250.0 for indoor dry/damp locations, NSF2 listed for non-food zones, WELL-aligned for circadian, glare, and color-quality features, and backed by a five-year limited warranty.
Pick from Medico's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
