Picasso Lighting · Panel Light
Trimless pocket-mount recessed Nubez stretch-fabric luminous panel in 2x2 to 8x12 sizes with a 17,000 lm package (473 lm/sq ft at 4.88 W/sq ft, 97 lm/W) in 2700-4000K at 80+ or 90+ CRI.
| Luminous flux | 17000 lm |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Recessed (pocket mount, trimless) |
| Dimensions | 2x2 (24" x 24") to 8x8 (96" x 96") squares plus 2x4, 3x4, 4x5, 5x6, 6x8, 5x10, 8x12 (96" x 144") rectangles; output specified per sq ft |
| Distribution | Direct |
| Finishes | Standard White, Standard Black, Standard Silver, Custom (RAL / Pantone powder coat), Wood finish |
| Dimming | 0-10V 1% dimming standard; non-dim and Lutron EcoSystem 1% selectable; PoE, DALI, DMX on request; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

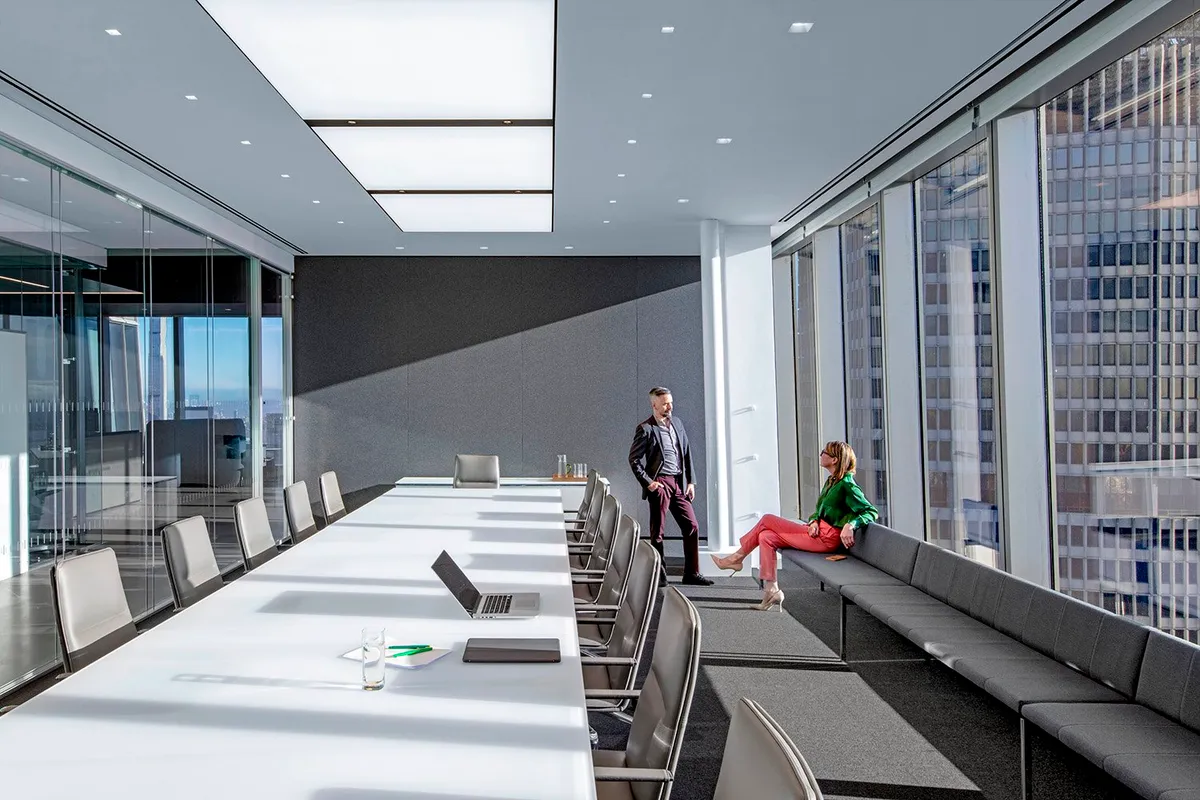

Nubez Pocket Trimless (NUB-RP) is the pocket-mounted trimless recessed member of Picasso Lighting's Nubez stretch-fabric series, creating a skylight-like luminous ceiling by stretching dual layers of clear and opal-white flexible membrane over a die-formed 20-gauge steel troffer housing with welded, ground corners and no light leaks; the opal-white layer faces the room. A single ordering sheet covers 2x2 through 8x8 squares plus 2x4, 3x4, 4x5, 5x6, 6x8, 5x10, and 8x12 (96 by 144 in) rectangles in a trimless pocket mount. The ordering format lists one 17,000-total-lumen direct package, and the published quick-reference table specifies 473 lm/sq ft at 4.88 W/sq ft and 97 lm/W at 3000K, in 2700K, 3000K, 3500K, and 4000K at 80+ or 90+ CRI (3 SDCM), with tunable white 2700-5000K selectable and custom lumens available. Drivers are UL-recognized, universal 110-277 VAC with 0-10V 1% dimming standard; non-dim, Lutron EcoSystem 1%, and custom controls are selectable, with PoE, DALI, and DMX available on request, plus options for Lutron Athena wireless nodes, emergency battery backup, and an NRC-0.55 acoustical membrane. Standard powder-coat finishes are white, black, and silver, with RAL and Pantone colors, processed wood finishes, anodized aluminum, and chrome or gold plating available, and the wider Nubez series is also offered flush-trim recessed, dropped trimless, surface-mounted, and pendant-mounted. Fixtures are IBEW manufactured and assembled in the USA with a BABAA-compliant ordering option, UL listed for dry and damp locations, rated for 50,000-hour LED life, and covered by a limited five-year warranty.
Pick from Nubez Pocket Trimless's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
