Edge-lit architectural LED panel with a slim aluminium frame, delivering 4,556–11,374 lm in suspended or ceiling mounts.
| Wattage | 159–405 W |
|---|---|
| Luminous flux | 4556–11374 lm |
| Efficacy | 28 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5700K |
| CRI | ≥90 |
| IP rating | IP40 |
| Mounting | Suspended, Ceiling |
| Dimensions | 1000 × 1000 – 2000 × 3000 mm (100–200 mm frame width) |
| Distribution | Direct |
| Finishes | White, Black, Custom RAL/NCS/Pantone |
| Dimming | Dimmable |
| Rated lifetime | 60,000 h |
| Warranty | 2 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Frame is Folio's rectangular edge-lit LED panel built from aluminium and methacrylate with Nichia LEDs. It is offered in suspended and ceiling versions, in square and rectangular formats from 1000 × 1000 mm up to 2000 × 3000 mm, with either remote or integrated power supply. Standard CCTs run 2700–5700 K at CRI Ra ≥ 90 (R9 ≥ 50), driven at 24 V DC and rated IP40 for indoor use.
Pick from Frame's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
Lithonia Lighting · Panel Light
Contractor Select flat panel in 1×4, 2×2, and 2×4 with switchable lumens and CCT (3500K/4000K/5000K) — the stocked, budget-friendly panel for schools, offices, and retail.
Picasso Lighting · Panel Light
24" recessed round acrylic luminaire delivering 2,500 lumens at 27 W (94 lm/W) with a shadowless concave opal-white diffuser, 2700-4000K CCTs and slot-grid, T-bar, trim or trimless mounting.

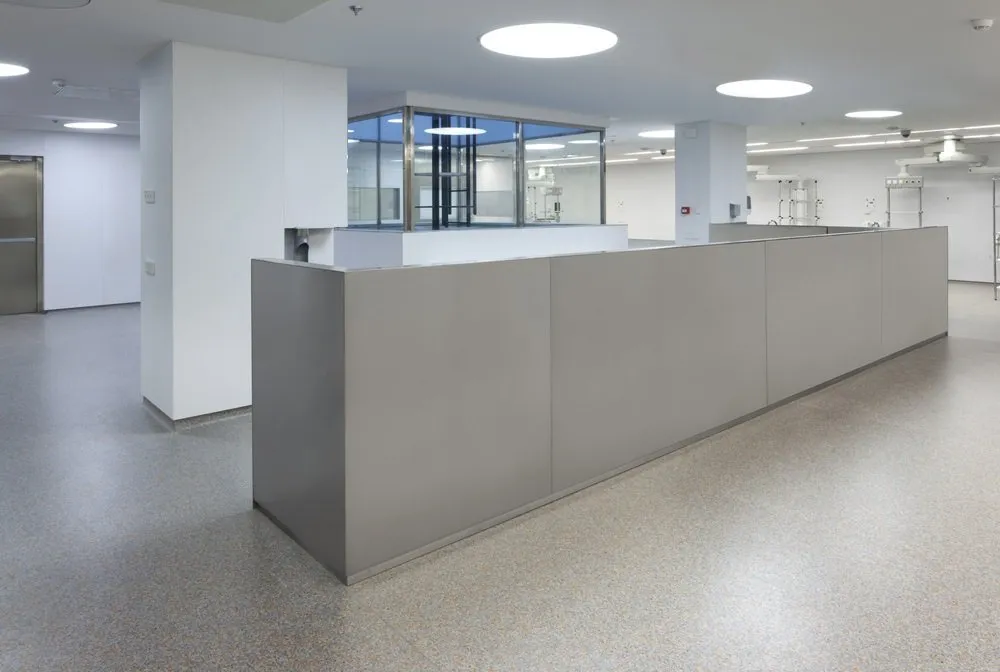

Picasso Lighting · Panel Light
