Picasso Lighting · Panel Light
Recessed flush-trim Nubez stretch-fabric luminous panel for slot-grid, T-bar, and spackle-flange drywall ceilings, specified at 250-625 lm/sq ft (4,000-10,000 lm referenced to a 4x4 panel) in 2700-4000K at 80+ or 90+ CRI.
| Wattage | 44.7–111.8 W |
|---|---|
| Luminous flux | 4000–10000 lm |
| Efficacy | 89 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Recessed (9/16" slot grid, flush trim), Recessed (9/16" and 15/16" T-bar, flush trim), Recessed (spackle flange, drywall, flush trim) |
| Dimensions | 2x2 (24" x 24") to 4x4 (48" x 48") squares plus 2x4, 3x4 rectangles; 5x5 (60" x 60") to 8x8 (96" x 96") squares plus 4x5, 5x6, 6x8, 5x10, 8x12 (96" x 144") rectangles; output specified per sq ft |
| Distribution | Direct |
| Finishes | Standard White (special applications by factory consultation) |
| Dimming | 0-10V 1% dimming standard; non-dim and Lutron EcoSystem 1% selectable; PoE, DALI, DMX on request; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

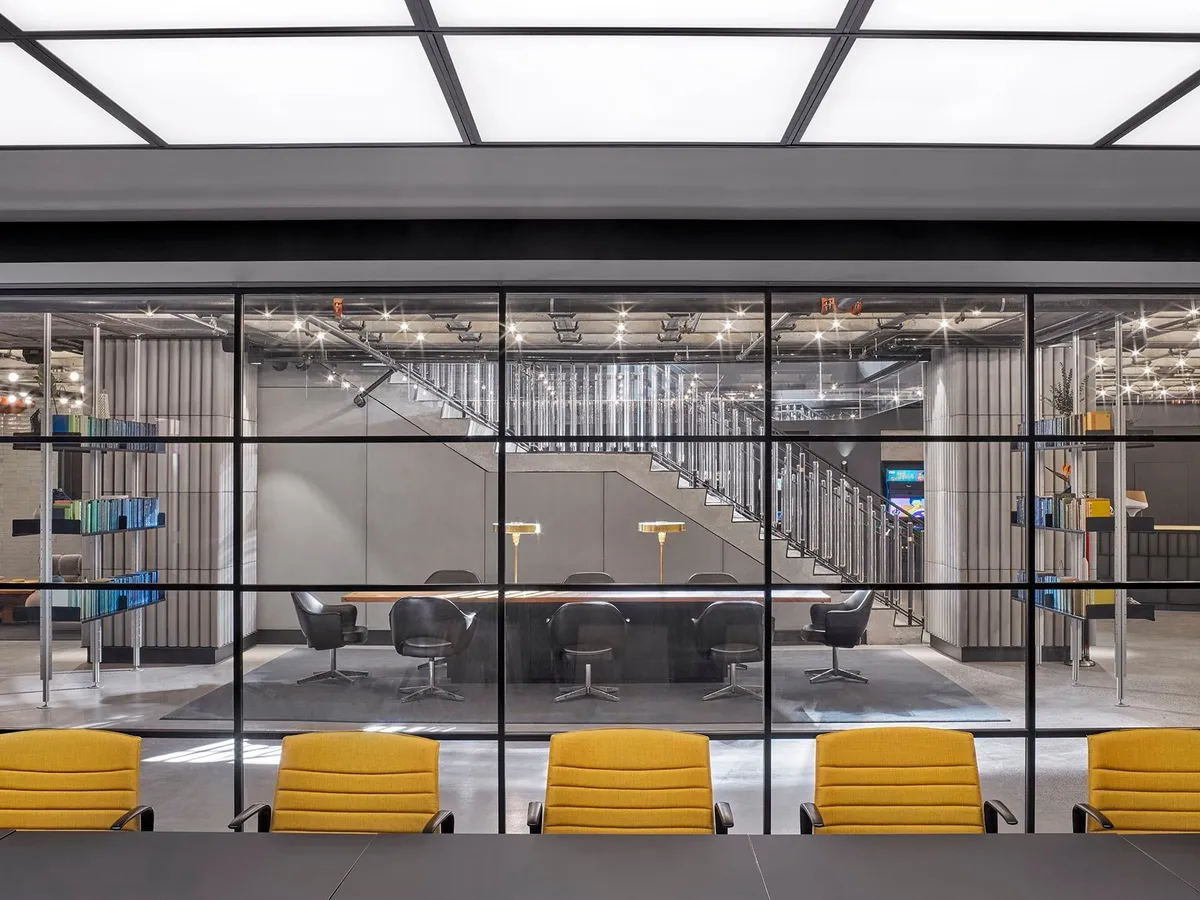

Nubez Recessed Flush Trim (NUB-RF) is the trimmed recessed member of Picasso Lighting's Nubez stretch-fabric series, creating a skylight-like luminous ceiling by stretching dual layers of clear and opal-white flexible membrane over a die-formed 20-gauge steel troffer housing with welded, ground corners and no light leaks; the opal-white layer faces the room and ceiling thickness is unrestricted. The family is published in two spec sheets folded here: sizes smaller than 4x4 (2x2, 3x3, and 4x4 squares plus 2x4 and 3x4 rectangles) and sizes larger than 4x4 (5x5 through 8x8 squares plus 4x5, 5x6, 6x8, 5x10, and 8x12 rectangles). Output is specified per square foot in 250, 375, 500, and 625 lm/sq ft packages: the published quick-reference table, referenced to a 4x4 panel, lists 4,000 to 10,000 total lumens at 44.7 to 111.8 W and 90 lm/W at 3000K, in 2700K, 3000K, 3500K, and 4000K at 80+ or 90+ CRI (3 SDCM), with tunable white 2700-5000K selectable and custom lumens available. Flush-trim mounting options cover 9/16 in slot grid, 9/16 in and 15/16 in T-bar, and a spackle flange for drywall ceilings. Drivers are UL-recognized, universal 110-277 VAC with 0-10V 1% dimming standard; non-dim, Lutron EcoSystem 1%, and custom controls are selectable, with PoE, DALI, and DMX available on request, plus options for Lutron Athena wireless nodes, emergency battery backup, an occupancy sensor, a 6 ft whip, and an NRC-0.55 acoustical membrane. The standard powder-coat finish is white, with special applications by factory consultation, and the wider Nubez series is also offered surface- and pendant-mounted. Fixtures are IBEW manufactured and assembled in the USA with a BABAA-compliant ordering option, UL listed for dry and damp locations, rated for 50,000-hour LED life, and covered by a limited five-year warranty.
Pick from Nubez Recessed Flush Trim's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
