Picasso Lighting · Panel Light
Round surface-mount luminous panel in 24", 36" and 48" diameters with 2,000 to 12,000 delivered lumens, 90+ CRI, 2700-4000K, and pendant, surface and wall mounting variants.
| Wattage | 16–96.6 W |
|---|---|
| Luminous flux | 2000–12000 lm |
| Efficacy | 124 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Surface (mounting pan to J-box), Pendant, Wall |
| Dimensions | 24", 36" or 48" diameter round profile; custom sizes by consultation |
| Distribution | Direct, Direct/Indirect |
| Finishes | White, Black, Custom (RAL/Pantone, wood, plated aluminum) |
| Dimming | 0-10V dimming 1% standard (120/277/347 VAC) or non-dim; DALI, DMX, Lutron Hi-lume 1% EcoSystem, Xitanium SR and emergency driver options; universal 110-277 VAC HPF drivers |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

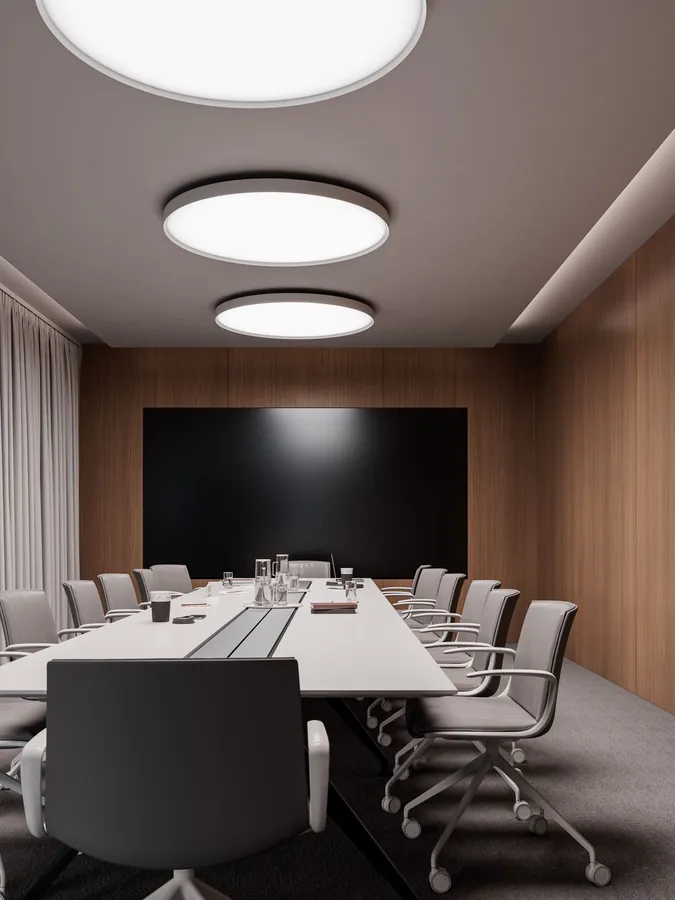

Juliette Round is the circular member of Picasso Lighting's Juliette Hex and Round series: an extruded-aluminum housing, formed and welded, with a flat diffuse acrylic PMMA lens for smooth uniform illumination and an optional back soft-glow for direct/indirect ambient enhancement. Three profile sizes are offered — 24", 36" and 48" diameters — with integral drivers and pendant, surface and wall mounting applications; the surface version mounts via a pan attached to a standard J-box. Published output spans 2,000 total lumens (24" low) to 12,000 total lumens (48" high) at 16.0-96.6 W and 121 lm/W, in 2700/3000/3500/4000K with 90+ CRI, 3 SDCM LEDs and 50,000-hour rated LED life; drivers can be tuned to specific lumen outputs, with tunable white and warm dim available. Standard finishes are white and black powder coat, with RAL/Pantone colors, wood finishes and aluminum plating as custom options plus selectable canopy and power-cord colors. High-power-factor universal 110-277 VAC drivers include 0-10V 1% dimming standard (120/277/347V variants) and non-dim options, with DALI, DMX, Lutron Hi-lume 1% EcoSystem and emergency battery-backup drivers offered. Certified to UL and CSA standards for dry and damp locations, Class A fire rated per ASTM E84, IBEW-assembled in the USA, and backed by a limited five-year warranty.
Pick from Juliette Round's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
