Compact edge-lit wall-mounted LED panel delivering 964–2,304 lm from a 50 mm aluminium frame.
| Wattage | 27–44 W |
|---|---|
| Luminous flux | 964–2304 lm |
| Efficacy | 52 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5700K |
| CRI | ≥90 |
| IP rating | IP40 |
| Mounting | Wall |
| Dimensions | 300 × 300 – 500 × 500 mm (50 mm frame width) |
| Distribution | Direct |
| Finishes | White, Black, Custom RAL/NCS/Pantone |
| Dimming | Dimmable |
| Rated lifetime | 60,000 h |
| Warranty | 2 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

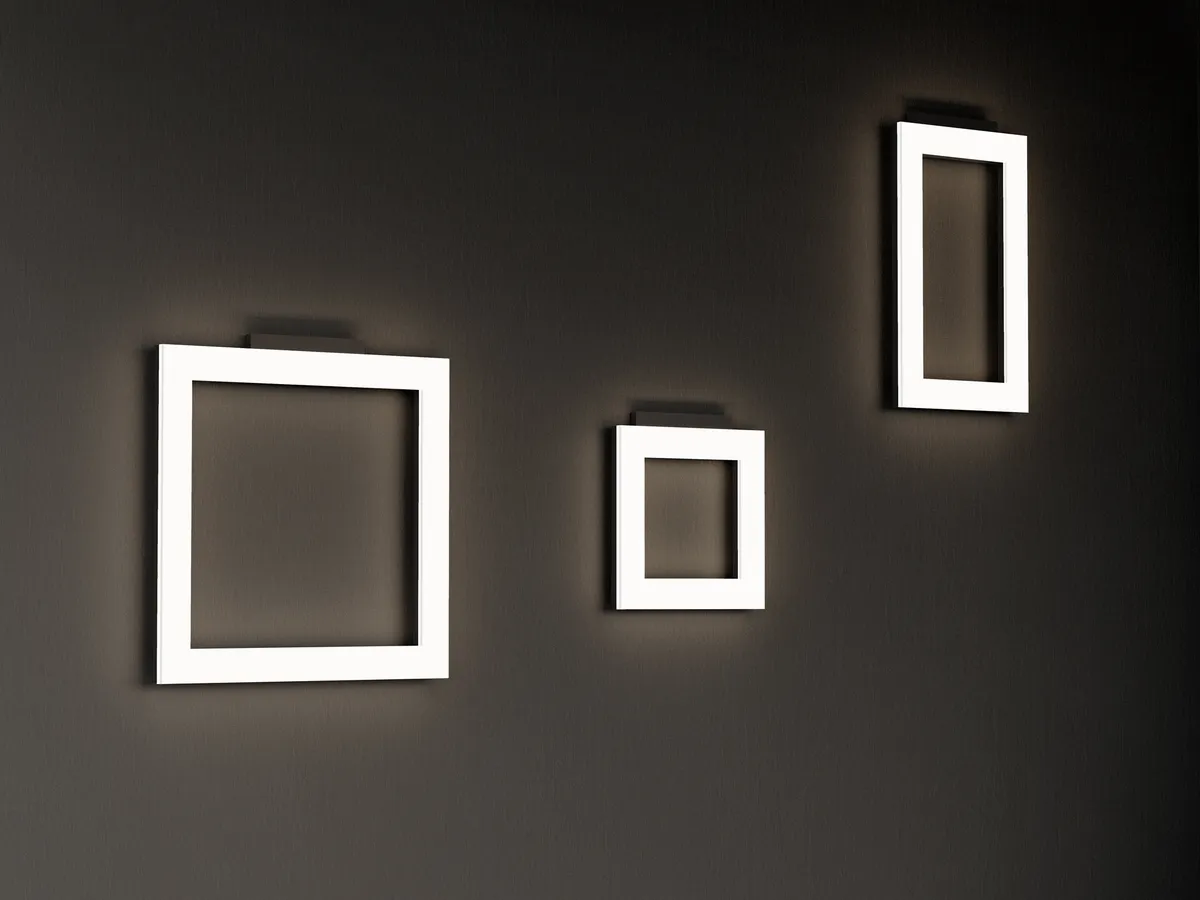

Loom is Folio's wall-mounted edge-lit LED panel in aluminium and methacrylate with Nichia LEDs. It is offered in square and rectangular formats from 300 × 300 mm up to 500 × 500 mm, with a 50 mm frame width and remote or integrated power supply. Standard CCTs run 2700–5700 K at CRI Ra ≥ 90 (R9 ≥ 50), driven at 24 V DC and rated IP40 for indoor use.
Pick from Loom's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
