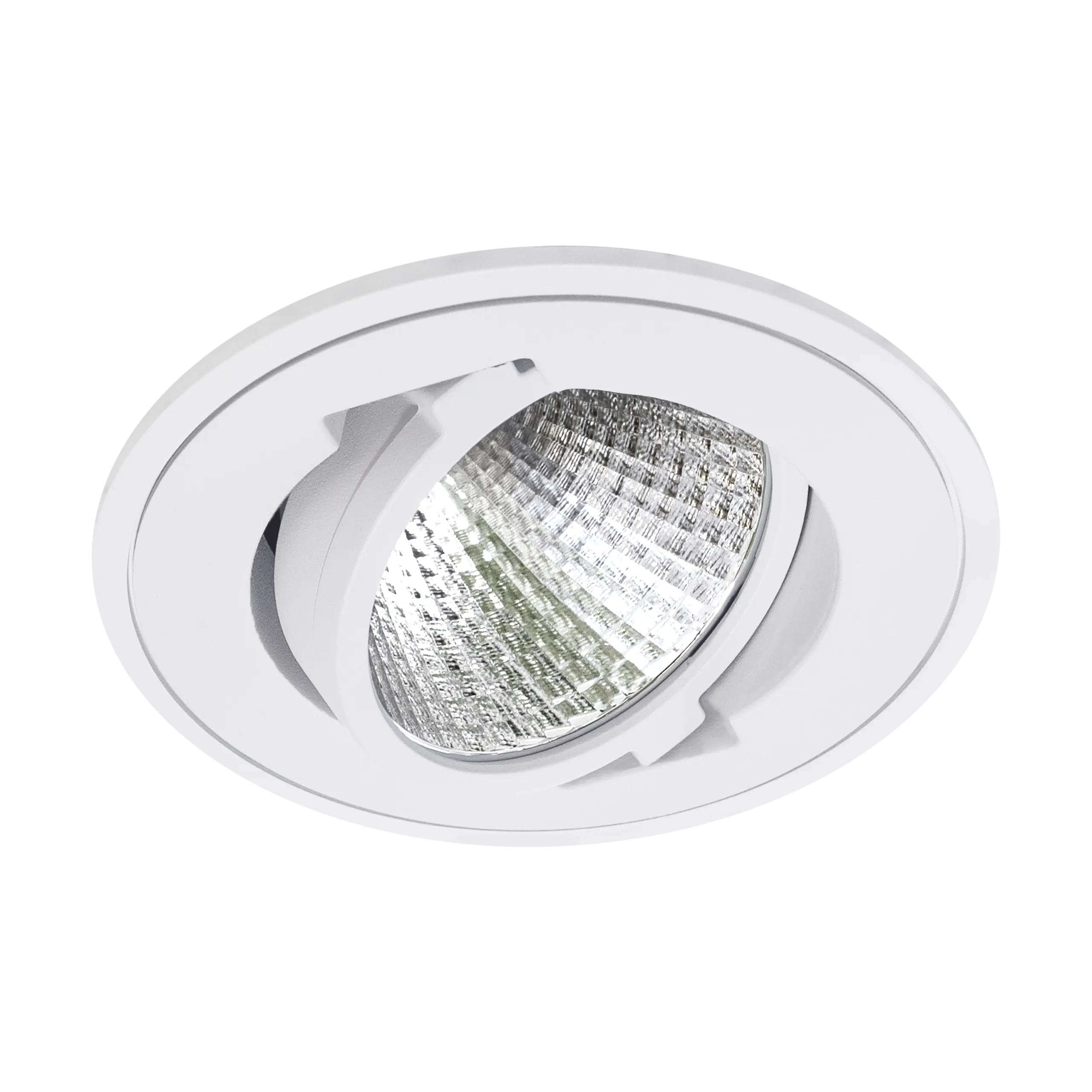

Miniature die-cast aluminum LED engine offered as a 6" recessed downlight (Nano R), an 80°-adjustable elbow (Nano E), and a 4" track head (Nano T) — 1,500–7,300 delivered lumens, 84/90/95/97 CRI, 15°–60° optics, and single-to-quad multi-head configurations; CSA listed, assembled in Canada.
| Wattage | 15–55 W |
|---|---|
| Luminous flux | 1500–7300 lm |
| Efficacy | 133 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Beam angle | 15° / 18° / 24° / 25° / 35° / 36° / 45° / 60° |
| Mounting | Recessed downlight (Nano R), Adjustable elbow, 80° tilt (Nano E), Track head — Global / Stucchi / Lightolier / Juno / Halo (Nano T), Canopy mount |
| Dimensions | 6" recessed Nano R/E (single, double, triple & quad configurations) and 4" Nano T track head; die-cast aluminum, gimbal to 80° + 350° rotation |
| Distribution | Direct |
| Finishes | RAL 9016 White, RAL 9005 Black, RAL 9006 Silver, Custom color |
| Dimming | 0–10V (0.1–5%), DALI, DMX, TRIAC, Casambi; 120/277/347V input |
| Rated environments | Dry |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Nano is ON LIGHT's compact-aperture LED family built around a single Bridgelux multi-chip engine and offered in three form factors that share the brand's EZ Swap tool-less reflector system: Nano R, a 6" recessed downlight (Ø161 mm / 6"–7" openings in single, double, triple and quad square or round configurations); Nano E, a 6" adjustable elbow with a gimbal pivoting to 80° and 350° rotation for wall-wash and accent aiming; and Nano T, a 4" track head for Global, Stucchi, Lightolier, Juno and Halo circuits (or canopy mount) rotating 350° and pivoting 90°. Delivered output runs 1,500–5,100 lm (15–49 W) on Nano R, 2,000–5,100 lm on Nano E, and 2,000–7,300 lm (to 55 W) on Nano T, with nominal efficacy up to 196 LM/W. Standard white CCTs are 2700K, 3000K, 3500K and 4000K (Nano T adds tunable-white 1800K–6500K variants; food-color renderings for bread, meat and fish are offered), and CRI options are 84 (nominal, min 80), 90, 95 and 97, at 3-step MacAdam consistency. Faceted pure-aluminum reflectors ship in 15°, 18°, 24°, 25°, 35°, 36°, 45° and 60° beam spreads. Drivers offer 0–10V (0.1–5%), DALI, DMX, TRIAC and Casambi with 120V, 277V or 347V input, and the textured powder-coat finish comes in RAL 9016 white, RAL 9005 black, RAL 9006 silver and custom colors. Photometrically tested to IESNA LM-79 by an NVLAP-accredited lab with LM-80 lumen maintenance, rated 50,000 hours for dry locations, CSA certified to US and Canadian standards, RoHS, and backed by a 5-year system warranty; luminaires are assembled in Beloeil, Canada.
Pick from Nano's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
