High-output die-cast aluminum LED family — a 7" round recessed downlight, a 7×7" single-to-quad square multi-head system, and a 6"×12" surface/pendant cylinder — delivering 2,000–12,000 delivered lumens, 84/90/97 CRI, and 15°–72° optics; CSA listed, assembled in Canada.
| Wattage | 14–90 W |
|---|---|
| Luminous flux | 2000–12000 lm |
| Efficacy | 133 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Beam angle | 15° / 24° / 36° / 60° / 72° |
| Mounting | Recessed round, 7" (Carda), Recessed square, single/double/triple/quad (Carda System 7×7"), Surface cylinder (Carda Cylinder), Pendant, aircraft cable 10/15/20 ft (Carda Cylinder), Wall (Carda Cylinder) |
| Dimensions | 7" round recessed (Ø125 mm aperture, 7" opening), 7×7" square multi-head, and 6" (Ø150 mm) × 12" surface/pendant cylinder; gimbal to 38° |
| Distribution | Direct |
| Finishes | RAL 9016 White, RAL 9005 Black, RAL 9006 Silver, Custom color |
| Dimming | 0–10V (0.1–5%), DALI, DMX; 120/277/347V input; emergency battery option (90 min, 23 W / 2,600 lm) |
| Rated environments | Dry |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

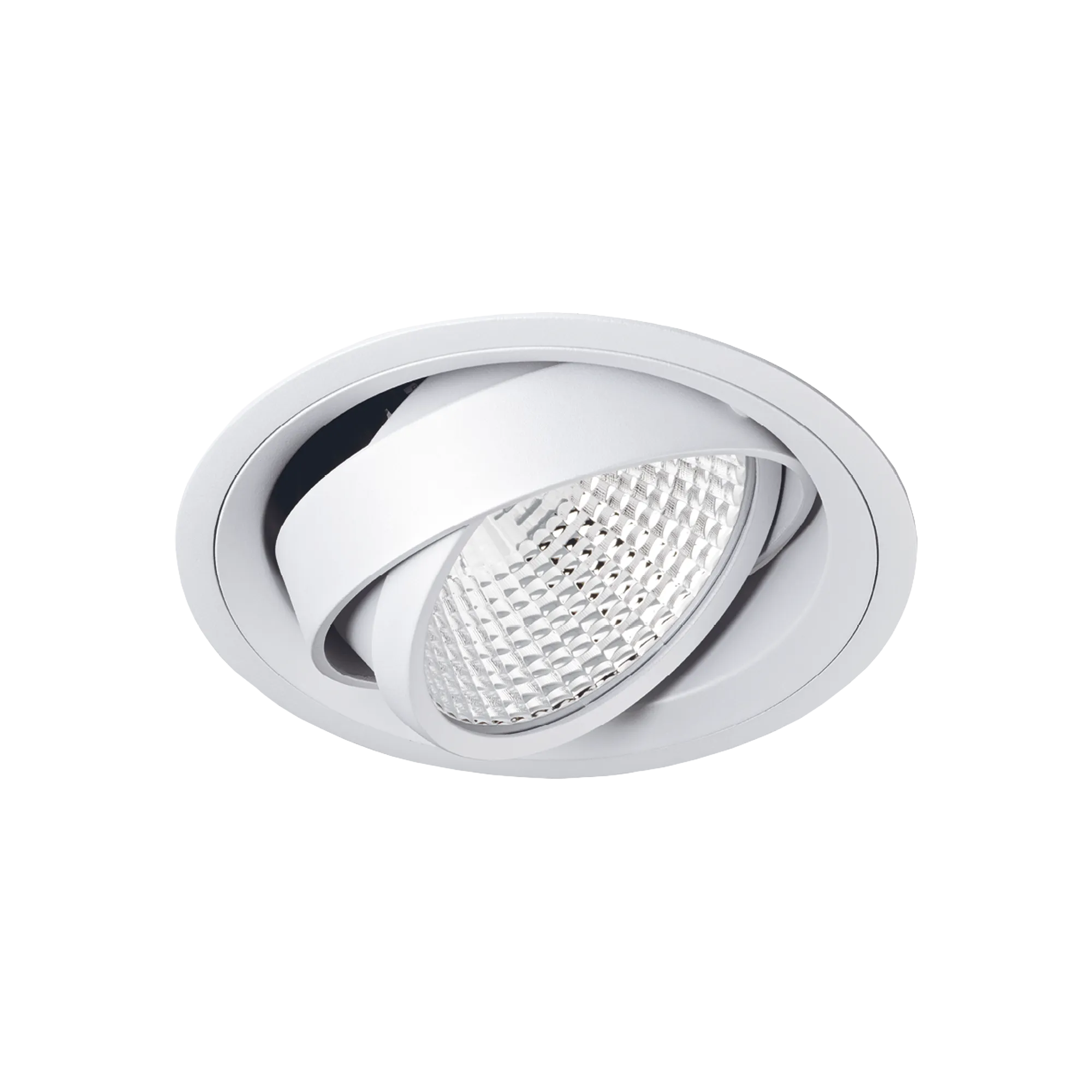

Carda is ON LIGHT's high-output LED family sharing one Bridgelux-based engine and EZ Swap tool-less reflector system across three forms: Carda, a 7" round recessed downlight (Ø125 mm aperture, 7" opening) delivering 2,000–10,500 lm (14–80 W); Carda System, a 7×7" square recessed frame in single, double, triple and quad multi-head configurations at the same 2,000–10,500 lm-per-head output; and Carda Cylinder, a 6" (Ø150 mm) × 12" surface luminaire mountable to wall, a standard 4" ceiling junction box, or on aircraft cable at 10, 15 or 20 ft, delivering 3,000–12,000 lm (25–90 W). Nominal efficacy reaches 196 LM/W. Standard white CCTs are 2700K, 3000K, 3500K and 4000K (tunable-white 1800K–6500K variants offered; food-color renderings for bread, meat and fish available), and CRI options are 84 (nominal, min 80), 90 and 97 at 3-step MacAdam consistency. Faceted pure-aluminum reflectors ship in 15°, 24°, 36°, 60° and 72° beam spreads, and the double-gimbal trim pivots up to 38°. Drivers offer 0–10V (0.1–5%), DALI and DMX with 120V, 277V or 347V input; an integral emergency battery with 90-minute illumination is available on the 23 W / 2,600 lm option. The textured powder-coat finish comes in RAL 9016 white, RAL 9005 black, RAL 9006 silver and custom colors. Photometrically tested to IESNA LM-79 by an NVLAP-accredited lab with LM-80 lumen maintenance, rated 50,000 hours for dry locations, CSA certified to US and Canadian standards, RoHS, and backed by a 5-year system warranty; luminaires are assembled in Beloeil, Canada.
Pick from Carda's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
