Meteor's adjustable recessed downlight family in 2"/4"/6" apertures plus higher-output Prime, with 359° rotation and 30° tilt, delivering 690–7,220 lm at CRI 85/93.
| Wattage | 10–60 W |
|---|---|
| Luminous flux | 690–7220 lm |
| Efficacy | 120 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥85 |
| Beam angle | 20° / 25° / 35° / 40° / 50° / 55° |
| Mounting | New construction, Retrofit, Remote power box (25/50 ft) |
| Dimensions | Apertures Ø2.6" (2"), Ø3.7" (4"), Ø5.7" (6"); heights 3.8–8.29" |
| Distribution | Adjustable accent (359° rotation, 0–30° tilt) |
| Finishes | Matte Black, Matte White, Matte Silver |
| Dimming | Superior 0–10V to 1% (dims to dark), TRC, DMX to 0.1%, DALI (VX Driver) |
| Rated environments | Indoor (Non-IC rated), 14 °F to 104 °F |
| Rated lifetime | 100,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

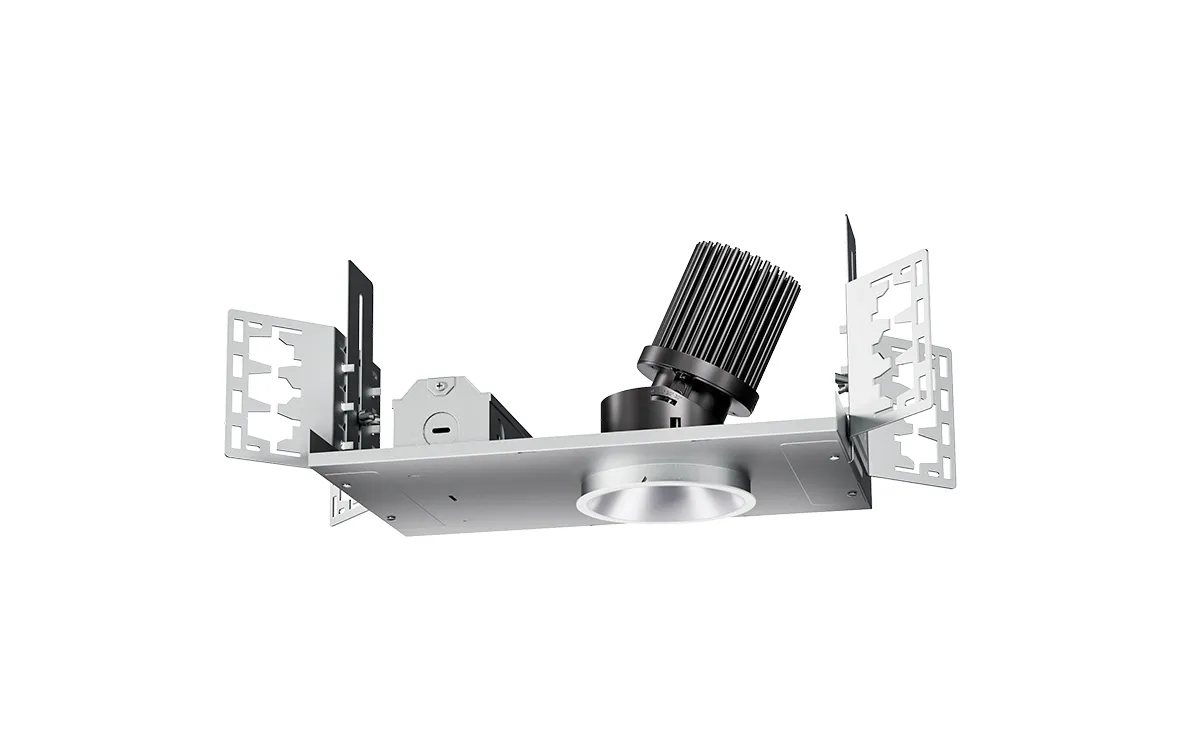

REV Flex is Meteor Lighting's family of revolutionary adjustable recessed downlights, offered in Ø2.6", Ø3.7", and Ø5.7" apertures (2", 4", and 6") plus a higher-output REV Flex Prime tier that adds up to ~60% more lumen output in the same form. Every configuration provides 359° rotation and 0–30° tilt for precise accenting, with delivered output spanning 690 lm (10W, 2") to 7,220 lm (60W, 6" Prime) across 2700K, 3000K, 3500K, and 4000K at CRI 85 or 93. A high-pressure die-cast aluminum housing pairs with a clear polycarbonate lens (2") or aluminum reflector (4"/6") in 20°–55° beam options, and Meteor's VX Driver delivers video flicker-free performance with Superior 0–10V (to 1%, dims to dark), TRC line-voltage phase control, DMX (to 0.1%), and DALI dimming. New-construction and retrofit versions are Non-IC rated for indoor use, JA8 Title 24 compliant, and ETL/CE/FCC listed with a 5-year warranty and L70 rated life beyond 100,000 hours. Tunable White and Archi-Color W+RGB color-changing variants are also published.
Pick from REV Flex's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
