Modular surface-mount point-source family — Dot round downlights, Box cuboid downlights, and Dot Cylinders in 1.5" and 2" apertures, 900–1260 delivered lumens, 20°/35°/50° beams, 80/90/95+ CRI static white or full-spectrum circadian, aimable to 90°.
| Wattage | 12.2–17.8 W |
|---|---|
| Luminous flux | 900–1260 lm |
| Efficacy | 71 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥95 |
| Beam angle | 20° / 35° / 50° |
| Mounting | Surface (ceiling / wall), Pendant (stem), Pendant (suspension cord), Direct mount |
| Dimensions | Dot & Box modules in 1.5" (Ø1 11/16") and 2" (Ø2 3/16") apertures, 2.65" or 4" height; Dot Cylinder in 6", 9", 12", and 18" bodies; aimable arm flush or 3" stem (90° tilt, 355° rotation); cylinder suspension cord 12–72" |
| Distribution | Direct, Adjustable |
| Finishes | Matte white, Matte black, Custom (RAL) |
| Dimming | 0–10V to 1% standard; canopy driver 0–10V, ELV, TRIAC; remote driver adds Lutron Hi-lume 1% EcoSystem, DALI, eldoLED 0.1% SOLOdrive & 1% ECOdrive; PoE compatible; optional Bodine emergency battery; 120V / 277V / universal 120–277V input |
| Rated environments | Dry, Damp location |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

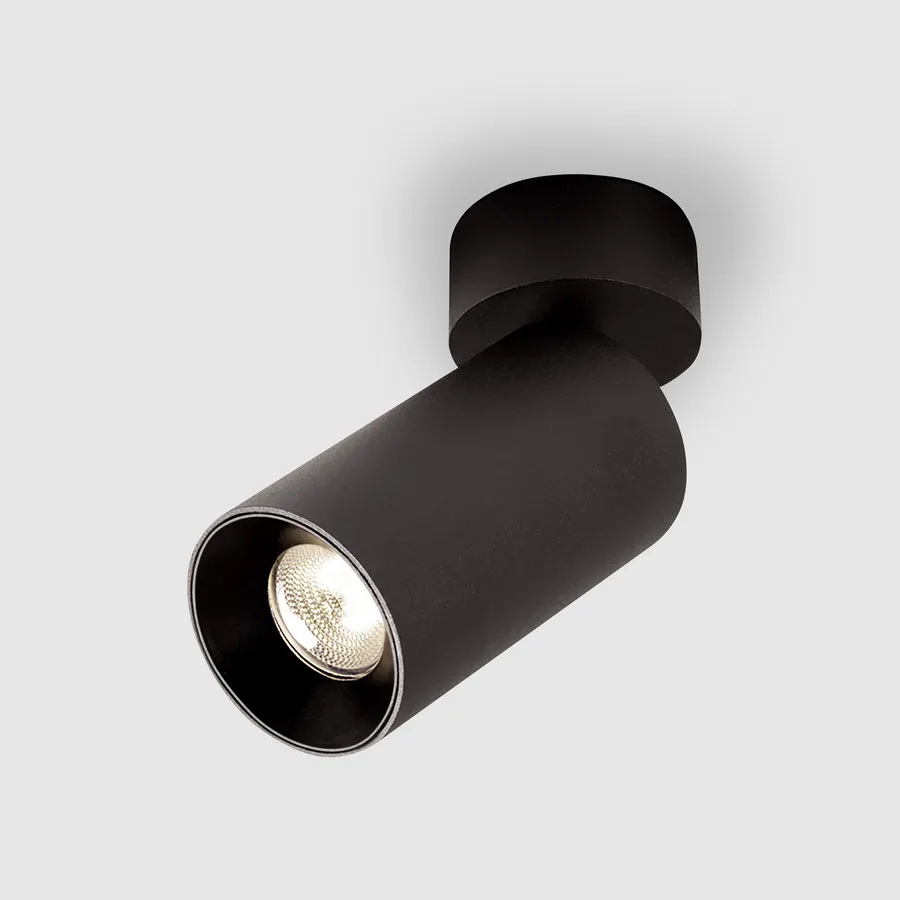

Dot, Box, and Dot Cylinder are Lumenwerx's individual surface-mount point-source luminaires, usable as standalone accent fixtures or as complements to Pivot track systems. Dot is a round module and Box a cuboid module, both offered in 1.5" (Ø1 11/16") and 2" (Ø2 3/16") apertures — Box in the 2" aperture only — with 2.65" and 4" housing heights; Dot Cylinder extends the round module into 6", 9", 12", and 18" cylinder bodies. All are ceiling- or wall-mounted (cylinders ceiling only) via flat, conduit-feed, or direct-mount canopies in round or square formats, with an aimable arm (flush or 3" stem) providing 90° tilt and 355° rotation on Dot and Box, or a 12–72" suspension power cord on Dot Cylinder. Delivered output runs 900 to 1260 lumens (12.2–17.8 W, values at 3500K/80+ CRI), directed by the compact 1.2" CircaFlex beam-splitting optic in 20° spot, 35° narrow flood, or 50° wide flood. The COB LED module is offered in 2700/3000/3500/4000K with 80+, 90+, or 95+ CRI (elevated R9 at 90+ and above, 2 SDCM), or a full-spectrum static-white option enriched in the 480 nm cyan region for healthcare and circadian strategies. Standard baffle and decorative baffle options control glare, and a wide RAL custom-finish palette supplements matte white and matte black. Dimming reaches 1% on 0–10V (canopy driver: 0–10V/ELV/TRIAC; remote driver adds Lutron Hi-lume 1% EcoSystem, DALI, and eldoLED 0.1% SOLOdrive / 1% ECOdrive), with PoE compatibility and an optional remote Bodine emergency battery. ETL listed to UL 1598 and CSA C22.2 No. 250.0 for indoor dry/damp locations, LBC Red List Declare approved, WELL-aligned, and backed by a five-year limited warranty.
Pick from Dot, Box & Dot Cylinder's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
