3-inch precision wayfinding and accent family — recessed-wall Guide and Deco faceplates plus IP66 surface Button, Oryo, and Bulb luminaires, delivering 62 to 370 lm of low-glare 90+ CRI light in round and square forms for corridors, stairways, and pathways.
| Wattage | 2–4 W |
|---|---|
| Luminous flux | 62–370 lm |
| Efficacy | 93 lm/W |
| Color temperature (CCT) | 1800K / 2200K / 2400K / 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | ≥90 |
| IP rating | IP66 |
| Mounting | Recessed wall (new construction / remodel), Surface (wall / ceiling) |
| Dimensions | 3" round or square recessed faceplate (Guide / Deco); Ø3" surface-mount body (Button, Oryo, Bulb; 1 3/16"–3 9/16" projection) |
| Distribution | Direct, Indirect |
| Finishes | Matte white, Matte black, White antimicrobial (Silverwerx), Custom (RAL) |
| Dimming | Recessed: 0–10V to 1% or DALI via remote driver, or no-dimming integral. Surface: 0–10V to 1%. PoE compatible. 120V / 277V / UNV, plus 347V on surface models |
| Rated environments | Dry, Damp location, Wet location |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

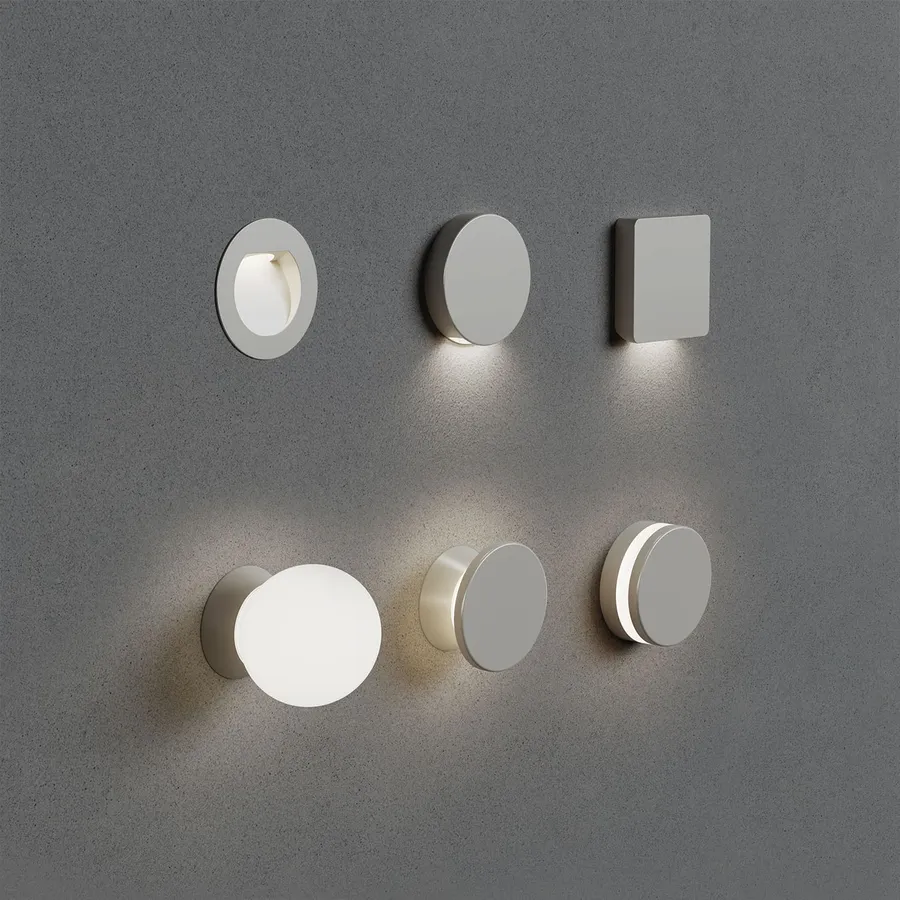

Compass is Lumenwerx's precision family of 3-inch architectural wayfinding and accent luminaires, unified by a compact footprint and a shared 90+ CRI light source with elevated R9. The recessed-wall members — Compass Guide (minimalist faceplate) and Compass Deco (decorative faceplate) — set cleanly into corridors, stairways, and transitional spaces to deliver legible, low-level directional light, each available in round and square forms with new-construction back-box, bar-hanger housing, and remodel mountings; Deco can distribute direct or indirect light. The surface members are IP66-sealed for indoor and outdoor use: Compass Button and Compass Oryo use the Radial Ambient Indirect Optic (RAIO) for diffuse, glare-controlled wall illumination, while Compass Bulb's spherical Radial Ambient Direct Optic (RADO) throws an even, all-angle glow from wall or ceiling. Delivered output spans 62 to 370 lumens (absolute LM-79 photometry) from 2 W recessed and 4 W surface COB/mid-flux LED modules, with color temperatures from 1800K to 5000K (recessed) and 2400K to 5000K (surface), held within 2 SDCM and rated for L80 lumen maintenance beyond 60,000 hours. Recessed models dim to 1% via 0-10V or DALI through a remote driver (or ship no-dimming integral) and are IC rated for indoor dry/damp locations; surface models dim to 1% via 0-10V, accept 120V/277V/UNV/347V, and carry an IP66 wet-location rating. Finishes are matte white and black powder-coat with optional antimicrobial and custom RAL colors, and every fixture is ETL listed to UL 1598 / CSA C22.2 No. 250.0 and backed by a five-year limited warranty.
Pick from Compass's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
