OCL Architectural Lighting · Sconce
OCL's slim crescent-end LED sconce (series HO1) in four lengths (24–60 in), delivering 2,050–8,000 delivered lumens at 30–100 W in 80+ or 90+ CRI, up to 80 lm/W.
| Wattage | 30–100 W |
|---|---|
| Luminous flux | 2050–8000 lm |
| Efficacy | 80 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Wall sconce, S1SA indoor ADA-compliant, 4x4" octagon or 4" round J-box (vertical or horizontal) |
| Dimensions | 24 / 36 / 48 / 60 in L; 1.5 in wide back channel |
| Distribution | Direct / indirect (narrow flood; ~51% down / 49% up) |
| Finishes | Black, Brass Metallic, Bronze, Black Textured, Graphite, Goldtastic, Matte White, Steel Gray, Silver Metallic, Sky White, White Textured, RAL / Pantone / custom |
| Dimming | 0-10V dimming to 1% standard (DM1); universal 120–277V; field-replaceable electronic driver; OCL proprietary LED arrays with Nichia 757 diodes |
| Rated environments | Dry, Damp (optional ULD label) |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

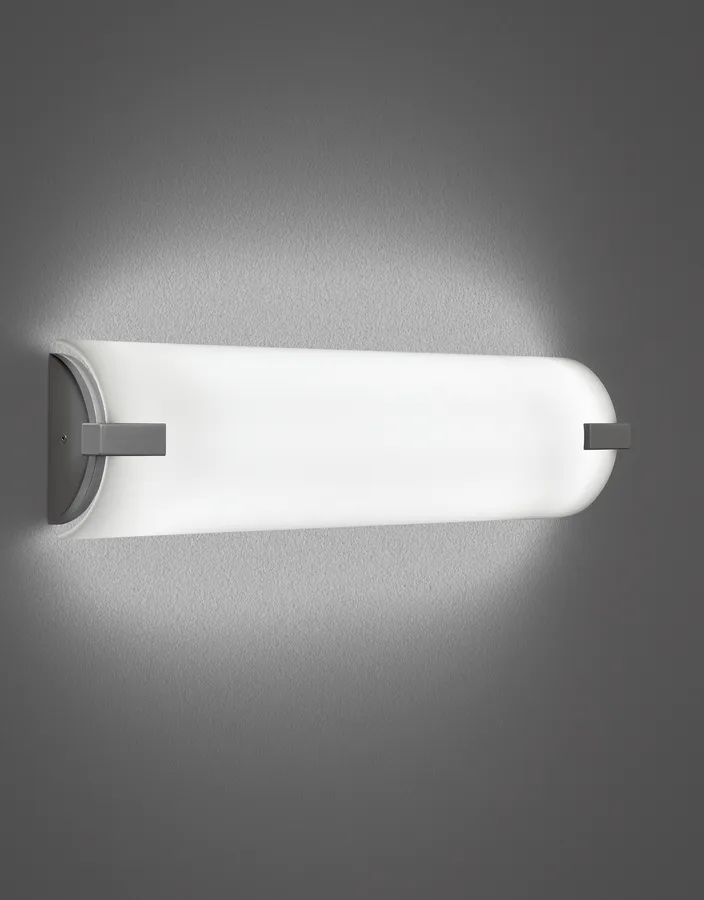

Hilo (series HO1) is OCL Architectural Lighting's understated linear wall sconce, built around a 1.50" wide matte-anodized extruded aluminum back channel with solid aluminum die-cast ends in a distinctive tapering crescent, and a 3/16" thick extruded virgin white acrylic diffuser (UV stable, UL-94 HB flame class). It can be mounted vertically or horizontally and is offered in four lengths — 24, 36, 48 and 60 in. Two LED packages are published (values at 3500K, 80+ CRI; multiply by 0.95 for 2700K, 0.97 for 3000K, 1.03 for 4000K, and 0.85 for 90+ CRI): LED1 delivers 2,050 lm (24 in, 30 W), 3,500 lm (36 in, 45 W), 5,000 lm (48 in, 65 W) and 6,400 lm (60 in, 80 W); LED2 delivers 2,550 lm (24 in, 35 W), 4,350 lm (36 in, 60 W), 6,300 lm (48 in, 80 W) and 8,000 lm (60 in, 100 W). Efficacy runs up to 80 lm/W, with a narrow-flood distribution (roughly 51% down / 49% up). Available in both 80+ CRI and 90+ CRI (R9>50), in 2700K, 3000K, 3500K and 4000K on a universal 120–277V supply with 0-10V dimming to 1% standard (DM1). The S1SA indoor ADA-compliant hanging system mounts to a 4x4" octagon or 4" round J-box (by others). OCL proprietary LED arrays use Nichia 757 diodes with a field-replaceable electronic driver. Finishes include eleven standard powder coats (black, brass metallic, bronze, black textured, graphite, goldtastic, matte white, steel gray, silver metallic, sky white, white textured), with RAL, Pantone and custom options, and a matte-white or gloss-white acrylic diffuser. Designed and fabricated in St. Louis, Missouri; ETL listed to UL 1598 for dry locations with an optional damp (ULD) label, and covered by a five-year limited warranty.
Pick from Hilo's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
