OCL Architectural Lighting · Sconce
OCL's crescent-diffuser architectural luminaire in ADA indoor sconce and surface ceiling forms — 24/36/48/60" bodies delivering 2,050–8,000 delivered lumens with a soft upward glow, at up to 80 lm/W.
| Wattage | 30–100 W |
|---|---|
| Luminous flux | 2050–8000 lm |
| Efficacy | 80 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Indoor ADA-compliant wall sconce, Surface ceiling mount |
| Dimensions | 24" / 36" / 48" / 60" long x 4" deep x 6" wide |
| Distribution | Direct/Indirect |
| Finishes | Black, Brass Metallic, Bronze, Black Textured, Graphite, Goldtastic, Matte White, Steel Gray, Silver Metallic, Sky White, White Textured, RAL / Pantone / custom |
| Dimming | 0-10V dimming to 1% standard (DM1); dimming to 0.1% and Lutron EcoSystem 1% (LDE1) available as modification with remote drivers; BIOS SkyBlue circadian option; field-replaceable LED arrays and drivers; universal 120–277V input; Nichia 757 LEDs |
| Rated environments | Dry, Damp (optional ULD label) |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

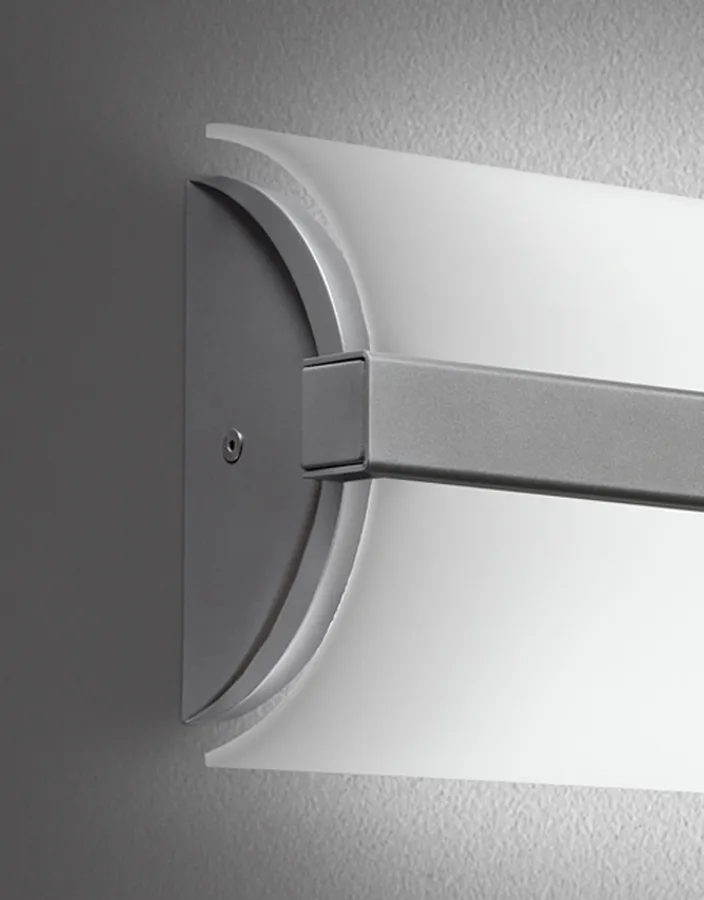

Highrise is OCL Architectural Lighting's crescent-diffuser luminaire, offered as an indoor ADA-compliant sconce (S1SA) and a surface ceiling mount (C1NA) in three profile series (HI1, HI2, HI3). Its crescent-shaped diffuser has a smooth, concave design that reflects a soft glow upward from the fixture body; the extruded diffuser is virgin white acrylic (UV stable, UL-94 HB flame rated) in gloss white or matte white. The body is extruded and machined aluminum with die-cast ends and field-replaceable LED arrays and drivers. Four sizes are offered — 24", 36", 48" and 60" — with delivered output at 3500K / 80+ CRI of 2050/3500/5000/6400 lm (LED1, 30/45/65/80 W) or 2550/4350/6300/8000 lm (LED2, 35/60/80/100 W), spanning 2050 to 8000 delivered lumens at up to 80 lm/W (multiply by 0.95 for 2700K, 0.97 for 3000K, 1.03 for 4000K; 90+ CRI uses a 0.85 multiplier; wattage and lumen data are approximate pending LM-79 testing). The distribution is near-symmetric direct/indirect (roughly 51% down / 49% up). Color temperatures are 2700K, 3000K, 3500K and 4000K in 80+ CRI (R9 > 0) or 90+ CRI (R9 > 50), with 3-step color binning. OCL proprietary LED arrays use Nichia 757 diodes on universal 120–277V input with 0-10V dimming to 1% standard (DM1); dimming to 0.1% and Lutron EcoSystem 1% are available as modifications with remote drivers, and a BIOS SkyBlue circadian light engine is offered. Eleven standard powder-coat finishes are available (black, brass metallic, bronze, black textured, graphite, goldtastic, matte white, steel gray, silver metallic, sky white, white textured) with RAL, Pantone and custom finishes. ETL listed to UL 1598 / 2108 for dry locations (optional ULD damp label), BABA compliant, WELL-aligned with the BIOS option, and backed by a five-year limited warranty.
Pick from Highrise's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
