BeWell Optics healthcare wall sconce in box, oval, and curved profiles — 830 to 1105 lm at 72 to 91 lm/W, 80/90 CRI, 2700–4000K plus BIOS SkyBlue and tunable white, at a shallow 2 in depth.
| Luminous flux | 830–1105 lm |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| IP rating | IP64 |
| Mounting | Surface (wall), Horizontal, Vertical |
| Dimensions | 10″ H × 2″ D; 12 / 18 / 24 / 36″ lengths; box, oval & curved profiles |
| Distribution | Direct/Indirect |
| Finishes | Antimicrobial white, Antimicrobial aluminum paint, Custom |
| Dimming | 0–10V 1% standard; BIOS SkyBlue (DPB); Lutron Hi-lume 1%; bi-level; DALI / DMX / Xitanium SR wireless; Axitune tunable white; PoE; low-voltage nurse-call controllers (LVC step / smooth dim); 120/277/347V, UNV, DC |
| Rated environments | Dry, Damp location, Indoor / outdoor, -20 to +40 °C (-4 to +104 °F) |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Sconce is Axis Lighting's BalancedCare healthcare wall luminaire, a surface-mounted sconce built on the patented BeWell light-guide optic that pushes controlled light onto both the vertical and horizontal planes for comfortable ambient illumination and wall glow. It is offered in three faceplate profiles — box, oval, and curved — delivering 830 lm (box), 992 lm (curved), and 1105 lm (oval) at 3500K per the LM-79 performance charts, at 72 to 91 lm/W and a rated L85 at 50,000 hours. LEDs are 80 or 90 CRI across 2700/3000/3500/4000K, with optional BIOS SkyBlue (STC and DynamicCare DCA drivers) and Axitune tunable white (2700–5000K) in select sizes, plus an optional amber nightlight. Standard dimming is 0–10V 1%, with Lutron Hi-lume 1%, bi-level, DALI, DMX, Xitanium SR wireless, PoE, and low-voltage nurse-call controllers (LVC step/smooth dim) at 120/277/347V, UNV, or DC. The extruded-aluminum housing carries a detachable backplate for quick-disconnect and room-side driver access, mounts horizontally or vertically in 12, 18, 24, and 36 in lengths at just 2 in deep (exceeding ADA), and is UL Listed and IP64 for indoor and outdoor use with antimicrobial and custom finishes. It is dry and damp rated for indoor use at -20 to +40 °C, NSF listed, and carries a limited 5-year warranty.
Pick from Sconce's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
OCL Architectural Lighting · Sconce

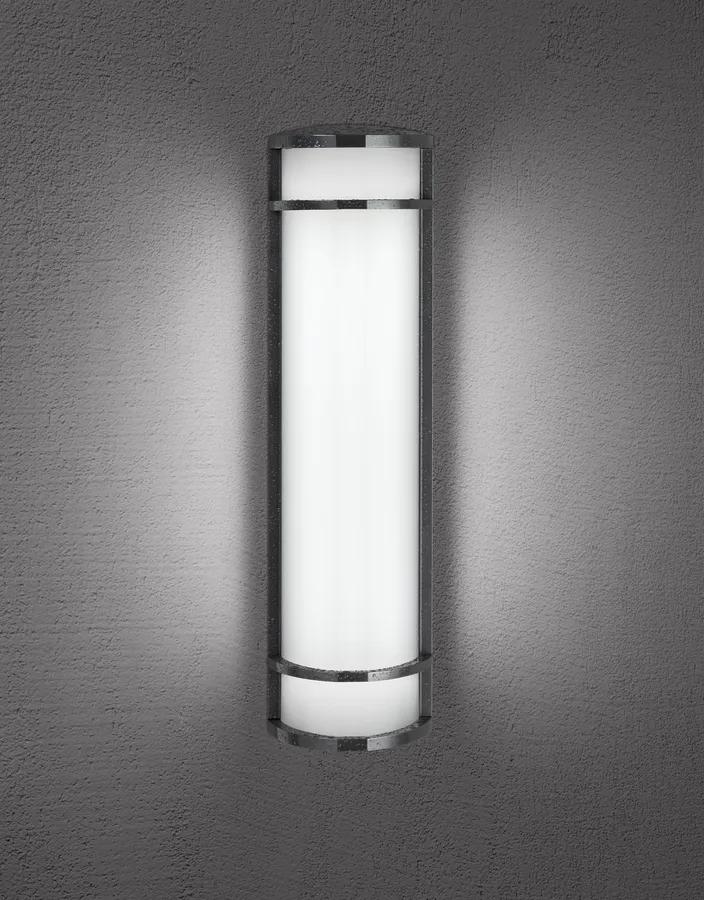

OCL's ADA-compliant architectural wall sconce with a tapering die-cast arch design and decorative horizontal bars, indoor and wet-location outdoor versions in 18/24/36/48" — delivering 1,050–4,600 delivered lumens behind extruded white acrylic, mountable vertically or horizontally.
OCL Architectural Lighting · Sconce
OCL's ADA-compliant linear wall sconce with laser-cut decorative aluminum faces over a 1.5"-wide back channel, indoor and wet-location outdoor versions in 24/36/48/60" — delivering 500–1,700 delivered lumens, mountable vertically or horizontally.
ILEX · Sconce

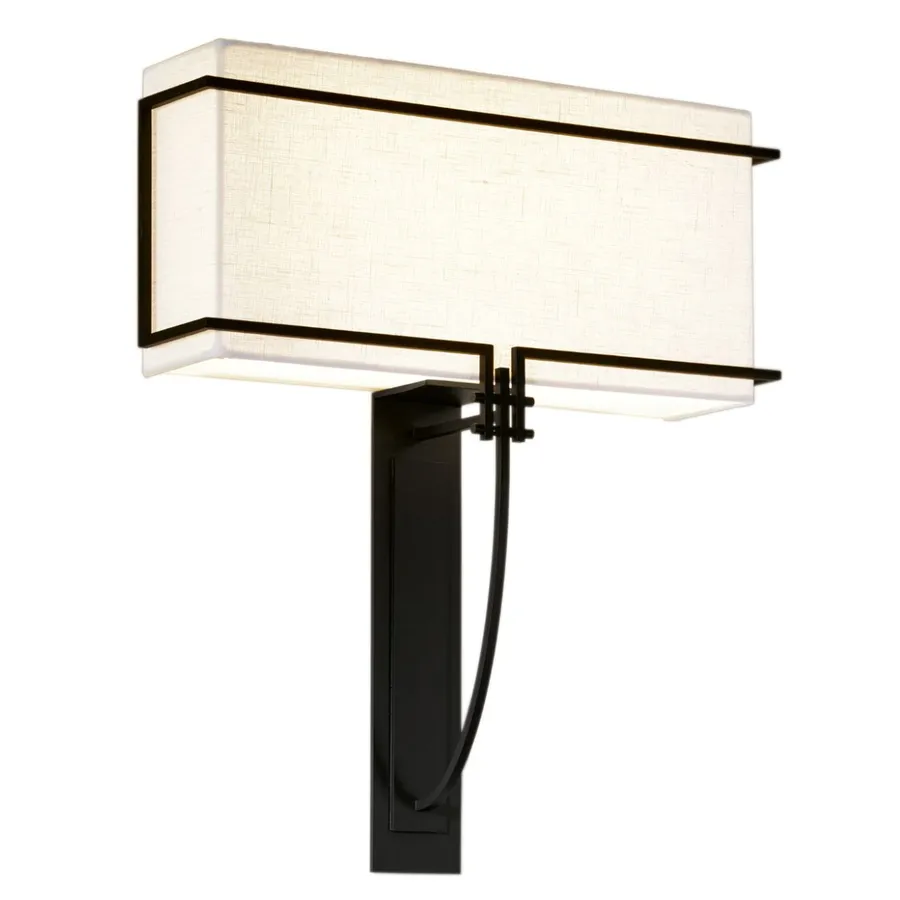

Metro Series wall sconce — a linear White Shade wrapped in slim powder-coated metalwork on a curved arm, integrated LED delivering 3,000 lm at 2700K, 90 CRI.
