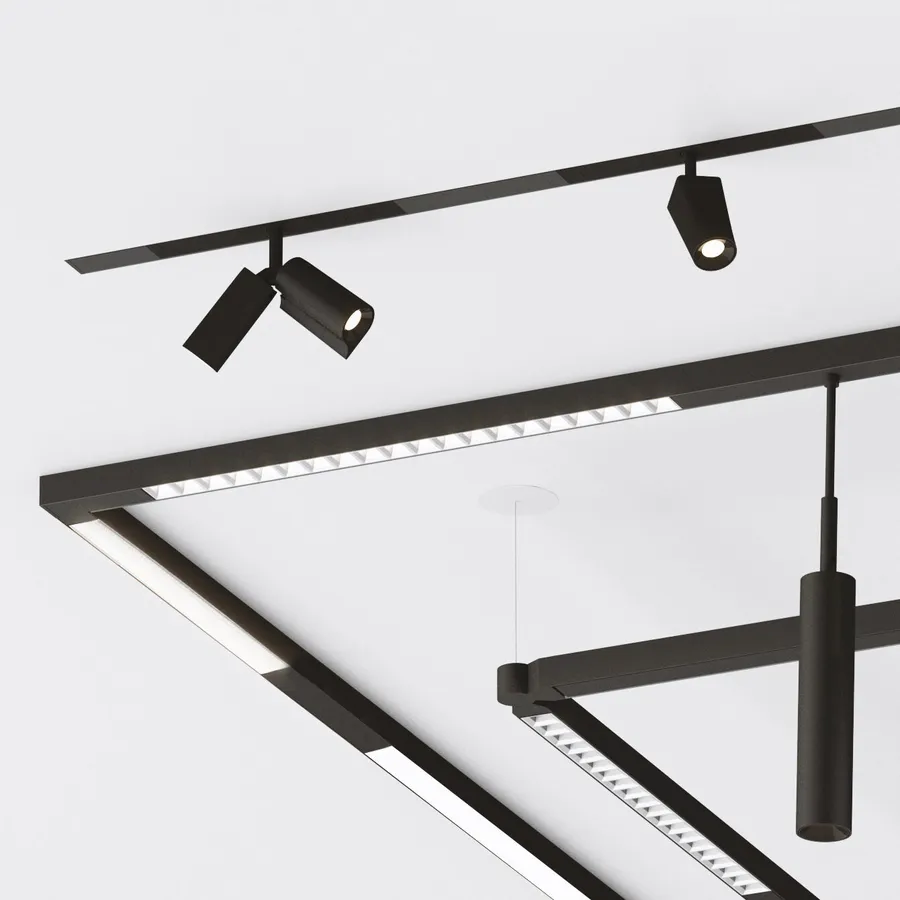

Compact 48 VDC low-voltage magnetic track system with a full menu of click-in modules — HLO/Micro-Prism/Prism linear engines (200–600 lm/ft), Solo and Duet aimable spots, Dot and Dot Cylinder point sources, and Caret/Globe/Petite Cylinder/Tab Acoustix decorative heads — in pendant, recessed, and surface tracks with continuous runs, Linx branching, and 0–10V or DALI control.
| Luminous flux | 200–3000 lm |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Beam angle | 20° / 25° / 35° / 45° / 50° |
| Mounting | Pendant (aircraft cable) track, Recessed track, Surface track |
| Dimensions | 3/4" wide magnetic track built from 3–8 ft sections in continuous runs or Linx-branched patterns; module heights vary by head (e.g. Solo 2-7/8", Globe Ø 4"/6"/8", Petite 1" Cylinder 6–18" drops) |
| Distribution | Direct, Direct/Indirect |
| Finishes | Matte black, Matte white, Custom (RAL) |
| Dimming | Non-dimming, 1% 0–10V, or DALI (on-site commissioning required); 1- or 2-circuit track; universal 120–277V input |
| Rated environments | Dry |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Mini Pivot is Lumenwerx's compact low-voltage (48 VDC) magnetic track platform: modules click magnetically into a slim 3/4-inch-wide track and are secured with a secondary screw-lock on accent modules. Track is built from 3–8 ft sections joined seamlessly on site as straight continuous runs or as patterns branched with 2-, 3-, or 4-way horizontal Linx connectors (minimum rotation angle 60°); a Bridge module spans two tracks to create a powered cross-track for additional modules, and Blank modules mask unlit track. The system's current-limiter design guarantees at least 8 W/ft and flashes to signal an overload when the modules on a section exceed the section's 48 VDC supply rating. The module menu spans linear light engines — Mini Pivot HLO (High-Efficiency Lambertian Optic, 300/450/600 lm/ft in 1–4 ft lengths), Micro-Prism (MPO, 200/300/400 lm/ft), and Prism (Diamond Prism Optic, 375–3000 lm in 7"/14"/28" segments) — plus aimable point sources: Solo (single TIR head, 25°/35°/45° beams, up to 350 lm, tilts to 95°), Duet (twin heads, 700 lm total, each tilting to 70°), Dot (1.5" and 2" apertures, 20°/35°/50° beams, 700–900 lm), and decorative pendant heads: Dot Cylinder, Petite 1" Cylinder (CircaFlex beam-splitting optic, 580/670/780 lm), Caret (conical, HLO, 500/700 lm), Globe (Isotropic Radiant Optic spheres in 4"/6"/8", 525/800/1200 lm), and Tab Acoustix (PET-felt acoustic pendant, 250 lm/ft, in 2/3/4 ft with standard and premium felt colors). LEDs are static white or full-spectrum in 2700/3000/3500/4000K at 80, 90 (elevated R9), or 95 CRI, held within 2 SDCM, tested to IESNA LM-80 with L80 lumen maintenance beyond 60,000 hours. Tracks are available as pendant (aircraft-cable, direct or direct/indirect), recessed, and surface, in matte black, matte white, or custom RAL; control is non-dimming, 1% 0–10V, or DALI (on-site commissioning required), on 1- or 2-circuit tracks with universal 120–277V input. ETL rated for indoor dry locations, conforming to UL 1574 and CAN/CSA C22.2 No. 250.0; backed by a five-year limited warranty.
Pick from Mini Pivot's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
