Low-voltage architectural track and linear framework — a 48V four-conductor track that hosts linear ISO inserts (385–750 lm/ft, 90 CRI) and track luminaires, forming lines, L/T/X corners, and free-form patterns in 2–8 ft runs.
| Luminous flux | 385–750 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Pendant (cable / stem), Recessed, Surface, Forms & patterns (L/T/X hubs) |
| Dimensions | 1 1⁄16″ W × 1 1⁄8″ H track; 2–8 ft segments & continuous runs; 48V four-conductor track with L/T/X hub corners |
| Distribution | Direct, Direct/Indirect |
| Finishes | White, Black |
| Dimming | 48V constant-voltage track with remote driver: 0–10V (DPCV) or DALI-2 (DALI2CV), 60W or 100W; 120/277/UNV |
| Rated environments | Dry, Indoor only |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Thread is Axis Lighting's low-voltage architectural track and linear framework — a slim 1 1⁄16-inch-wide by 1 1⁄8-inch-tall extruded four-conductor 48V track that both carries a linear ISO insert (flush lens, 385 to 750 lm/ft at 90 CRI across 2700/3000/3500/4000K) and powers compatible track luminaires such as Orb pendants and Stella spotlights, within a 60W or 100W driver budget per run. Segments run 2 to 8 ft stand-alone in 1-inch increments and extend into continuous system runs and into L-, T-, and X-hub corners plus square, rectangular, U-, and free-form patterns. Remote 48V drivers provide 0–10V (DPCV) or DALI-2 (DALI2CV) dimming at 120/277/UNV, and the pendant mounts by cable or stem in direct or direct/indirect configurations (recessed and surface framework versions are also available). Thread is cULus listed — its track certified to UL1574 and all track adapters to UL2108 — and carries a limited 5-year warranty.
Pick from Thread's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
ON LIGHT · Track
3" LED track head delivering 1,500–3,500 delivered lumens (nominal at 3500K/84 CRI) with tool-less interchangeable 17°–66° reflectors, 2700K–5000K, 84/90/97/A-Class CRI and up to 133 lm/W — fits Global, Stucchi, Lightolier, Juno and Halo track; ETL listed, made in Canada.
Axis Lighting · Track
Track-mounted multi-cell accent projector for the AxisTrak system — a compact five-cell head with narrow (16°) or wide (50°) beams, 600 lumens, 90 CRI, tilt-and-rotate adjustable.
Axis Lighting · Track

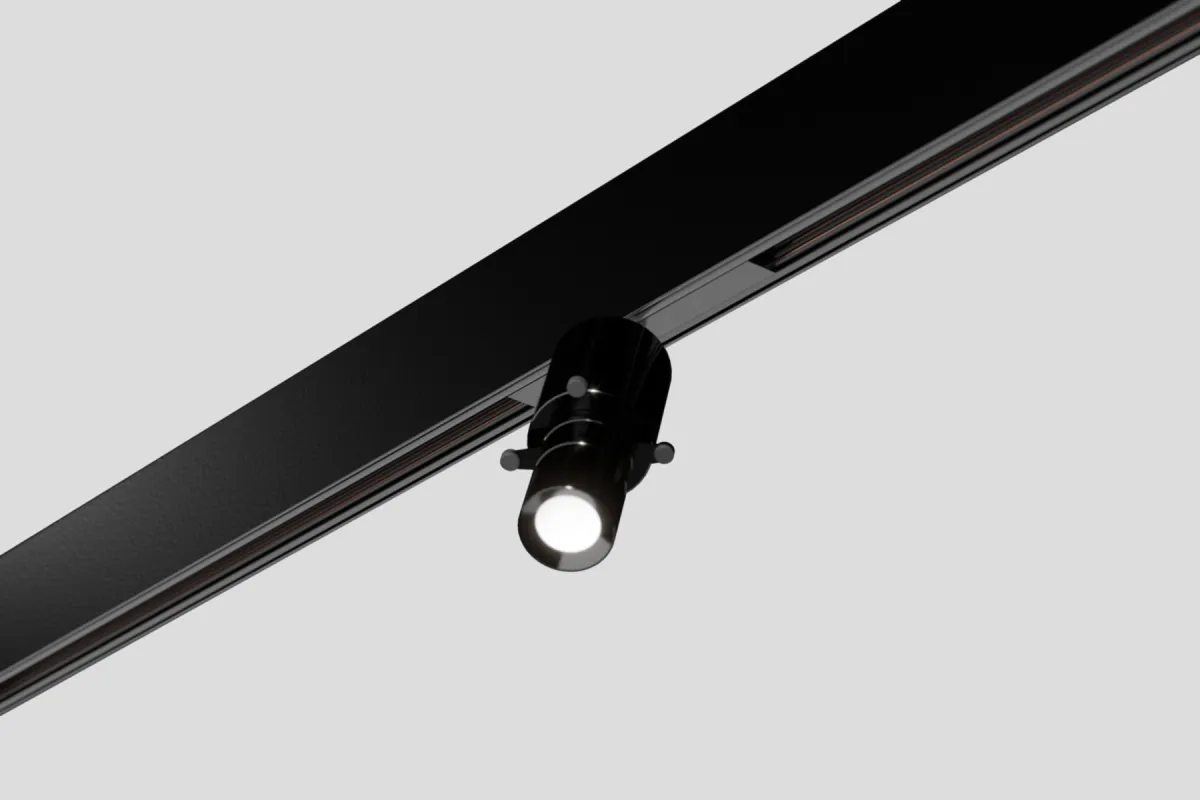

Track-mounted framing projector for the AxisTrak system — shapes crisp beams with internal shutters and optional custom gobo images, 500 lumens, 90 CRI, at 3500K with focus and unfocus modes.
