Pendant linear-plus-downlight combo pairing a 350-1,000 lm/ft flush opal-lens linear section with 1,250/1,350-lumen accent downlights, 2700-4000K, in 4/6/8 ft cable-hung lengths.
| Wattage | 4.28–12.63 W/ft |
|---|---|
| Luminous flux | 350–1000 lm/ft |
| Efficacy | 79 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (aircraft cable, 48" standard), Surface, Recessed |
| Dimensions | 4-1/4" W x 4-3/4" H profile (4-1/4" x 5-1/2" with uplight); 4 ft (2 downlights), 6 ft (2), 8 ft (4) nominal lengths + custom lengths in 1" increments |
| Distribution | Direct |
| Finishes | White, Black, Silver, Custom (RAL/Pantone powder coat, wood, anodized aluminum, chrome/gold plating) |
| Dimming | 0-10V 1% dimming standard; non-dim, Lutron EcoSystem 1%, Lutron Athena wireless node, 2-circuit direct/indirect wiring, custom controls; DALI/DMX/PoE on request; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

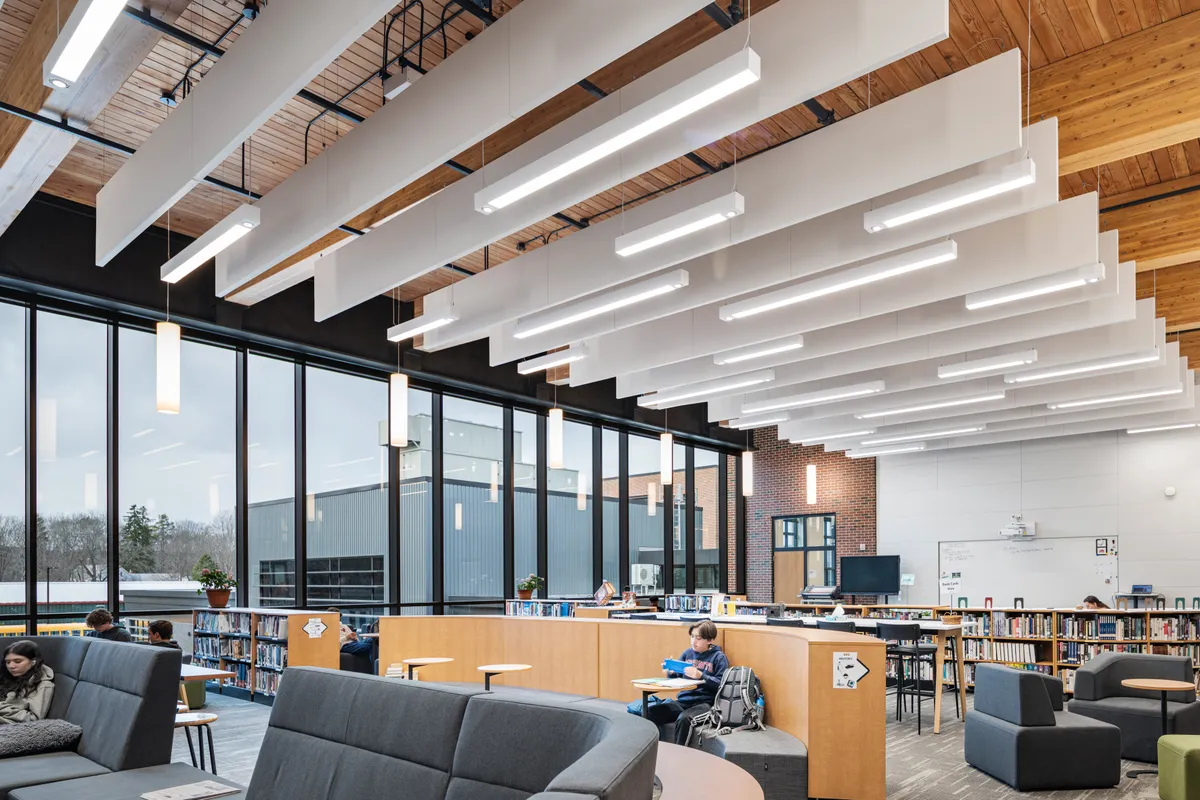

Vario Flush DL Lens Combo combines the Vario series' flush opal-white snap-in lens linear with integral accent downlights in one cable-mounted pendant housing, aimed at retail, office, and library spaces. The 4-1/4" wide by 4-3/4" high extruded-aluminum profile (5-1/2" high with indirect uplight) ships in nominal 4 ft (2 downlights), 6 ft (2 downlights), and 8 ft (4 downlights) lengths, plus custom lengths in 1-inch increments and continuous rows. The linear section is ordered at 350, 500, 750, or 1,000 lm/ft (4.28-12.63 W/ft at 3000K), while the specular-reflector downlights deliver a published 1,360 total lumens at 20 degrees or 1,250 total lumens at 30 degrees from 12.71 W each, in fixed or adjustable versions. CCTs run 2700K to 4000K with 80+ or 90+ CRI, and tunable white 2700-5000K is offered on the linear section; drivers are high-power-factor universal 110-277 VAC with 0-10V 1% dimming standard and non-dim, Lutron EcoSystem, Lutron Athena wireless, two-circuit direct/indirect wiring, emergency-battery, and PoE/DALI/DMX options. The Vario series is also available in Surface and Recessed versions. Fixtures are IBEW-manufactured and assembled in the USA, UL listed for dry and damp locations, rated for 50,000-hour LED life, and covered by a limited five-year warranty.
Pick from Vario Flush DL Lens Combo's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
