Round-lens linear LED pendant delivering 350 to 1000 lm/ft direct at up to 123 lm/W, 2700-4000K, in 3/4/6/8 ft lengths with cable or stem mounting and Surface and Wall variants.
| Wattage | 2.88–8.48 W/ft |
|---|---|
| Luminous flux | 350–1000 lm/ft |
| Efficacy | 118 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (aircraft cable / stem), Surface, Wall |
| Dimensions | 1-13/16" W x 3-1/16" H profile; 3/4/6/8 ft nominal lengths + custom (1 in. increments), continuous rows available |
| Distribution | Direct |
| Finishes | White, Black, Silver, Custom (RAL/Pantone powder coat, wood, anodized, chrome/gold plating) |
| Dimming | 0-10V 1% dimming standard (120V or 277V); non-dim, Lutron EcoSystem 1%, phase-cut 120V; DALI/DMX/PoE on request; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

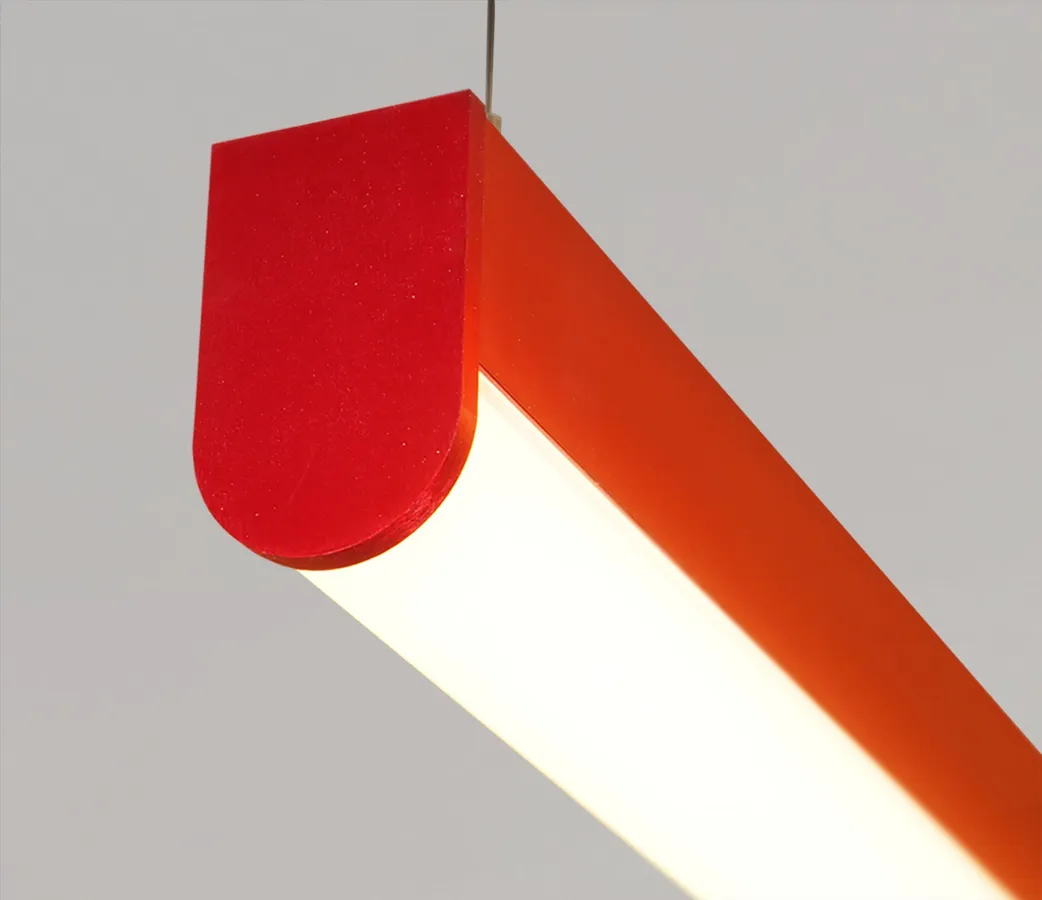

Nicole Dropped Lens is the workhorse of Picasso Lighting's Nicole series, a direct-only linear pendant with an extruded round snap-in frosted acrylic lens that drops below the extruded-aluminum housing. The 3-1/16" H x 1-13/16" W profile comes in nominal 3, 4, 6, and 8 ft lengths plus custom sizes in 1-inch increments, and fixtures may be continuously rowed; milled-aluminum end caps encapsulate the lens ends to minimize light leaks, with screwless magnetic end caps available. Output spans four packages from 350 to 1000 lm/ft at 2.88 to 8.48 W/ft (119-123 lm/W at 3000K), in 2700/3000/3500/4000K at 80+ or 90+ CRI, with tunable white (2700-5000K) and custom lumen tuning offered. Drivers are universal 110-277 VAC with 0-10V 1% dimming standard; non-dim, Lutron EcoSystem 1%, 120V phase-cut, and DALI/DMX/PoE controls are available, plus an optional emergency battery-backup driver. Cable mounting uses gripper-style locking on 48" standard cables to a J-box canopy (stem mounting available), and the series is also offered in Surface and Wall versions. Fixtures are IBEW manufactured and assembled in the USA, UL listed for dry and damp locations, with 50,000-hour rated LED life and a five-year limited warranty.
Pick from Nicole Dropped Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
