Large-format Muse pendant with regressed frosted lens, publishing 350-1000 lm per square foot of direct output plus optional 350-1000 lm indirect packages at 2700-4000K, in 3-6 ft nominal sizes.
| Luminous flux | 350–1000 lm |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (aircraft cable, round/square J-box canopy), Pendant (stem), Surface |
| Dimensions | 3/4/5/6 ft nominal sizes + custom (1" increments); direct output rated per square foot |
| Distribution | Direct, Direct/Indirect |
| Finishes | White, Black, Silver, Custom (RAL/Pantone, wood, anodized, chrome/gold plated) |
| Dimming | 0-10V dimming 1% standard; non-dim option; Lutron Athena wireless node option; Lutron/DALI/DMX/PoE via factory; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

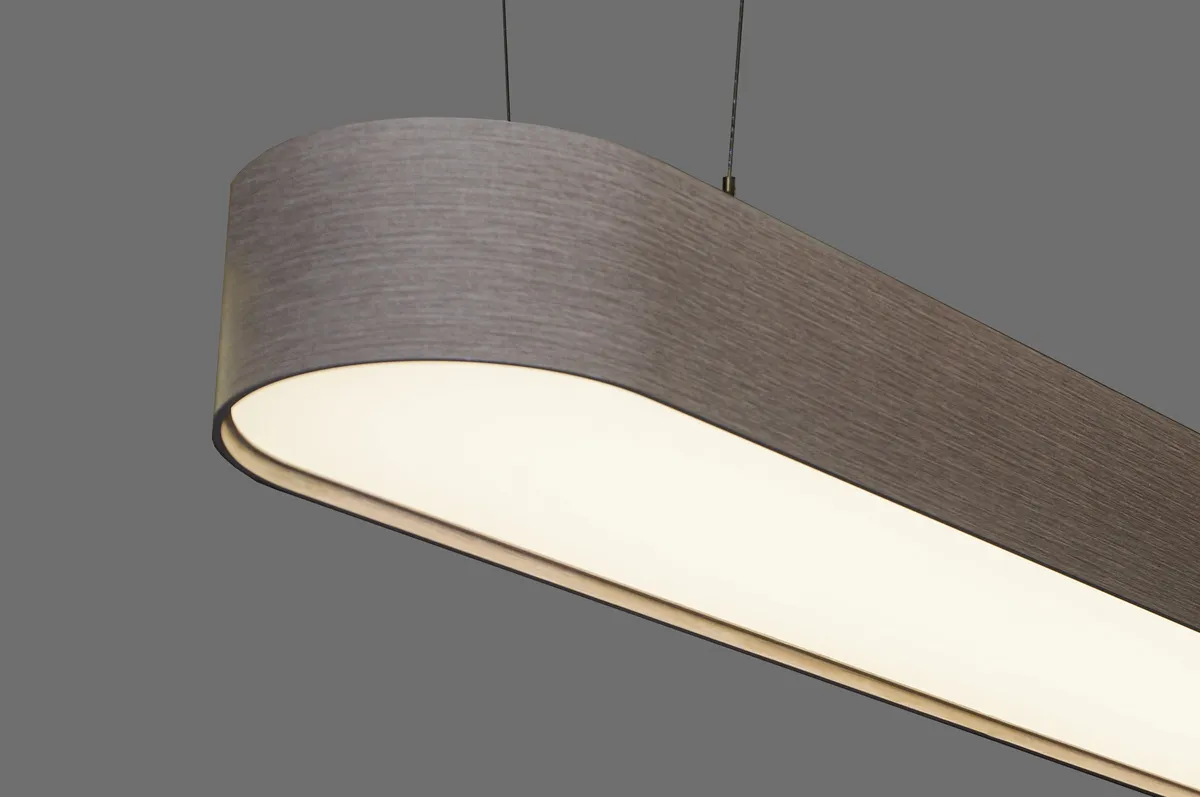

Muse XL Regress Lens is the large-format member of Picasso Lighting's Muse series, a cable- or stem-hung pendant whose direct component uses a slide-in frosted acrylic regressed lens and whose indirect LED strips sit in an extruded-aluminum channel behind a clear acrylic dust cover. Extruded-aluminum housings come in nominal 3, 4, 5, and 6 ft sizes plus custom (larger sizes ship in 2-4 sections joined by clamps), with easy access to driver and LED boards. Because of its width, direct output is published per square foot: the performance table lists 350, 500, 750, and 1000 lm/sq ft rows (79-82 lm/W at 3000K, wattages listed as coming soon), and the spec form orders direct packages of 250, 375, 500, or 625 lm/sq ft with independently selectable 350 to 1000 lm indirect packages behind Lambertian, 120-degree batwing, flat 150-degree, or asymmetric optics. Standard CCTs are 2700K-4000K with a tunable-white 2700-5000K option, in 80+ or 90+ CRI, driven at universal 110-277 VAC with 0-10V 1% dimming standard and non-dim and custom controls (Lutron, DALI, DMX, PoE via factory) available. The Muse series is also offered surface mounted. Fixtures are IBEW-built in Moonachie, NJ, UL listed for dry and damp locations, rated 50,000 hours, and covered by a limited five-year warranty.
Pick from Muse XL Regress Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
