Butterfly-profile linear pendant with regressed frosted lens, delivering 350-500 lm/ft direct plus optional 350-500 lm/ft indirect at 2700-4000K, in 2-8 ft lengths.
| Wattage | 5.3–7.5 W/ft |
|---|---|
| Luminous flux | 350–500 lm/ft |
| Efficacy | 67 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (aircraft cable, round/square J-box canopy) |
| Dimensions | 2-3/8" W x 4" H butterfly profile; 2/3/4/6/8 ft nominal lengths + custom (1" increments); continuous rows available |
| Distribution | Direct, Direct/Indirect |
| Finishes | White, Black, Silver, Custom (RAL/Pantone, wood, anodized, chrome/gold plated) |
| Dimming | 0-10V dimming 1% standard; non-dim and Lutron EcoSystem 1% options; Lutron Athena wireless node option; DALI/DMX/PoE via factory; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

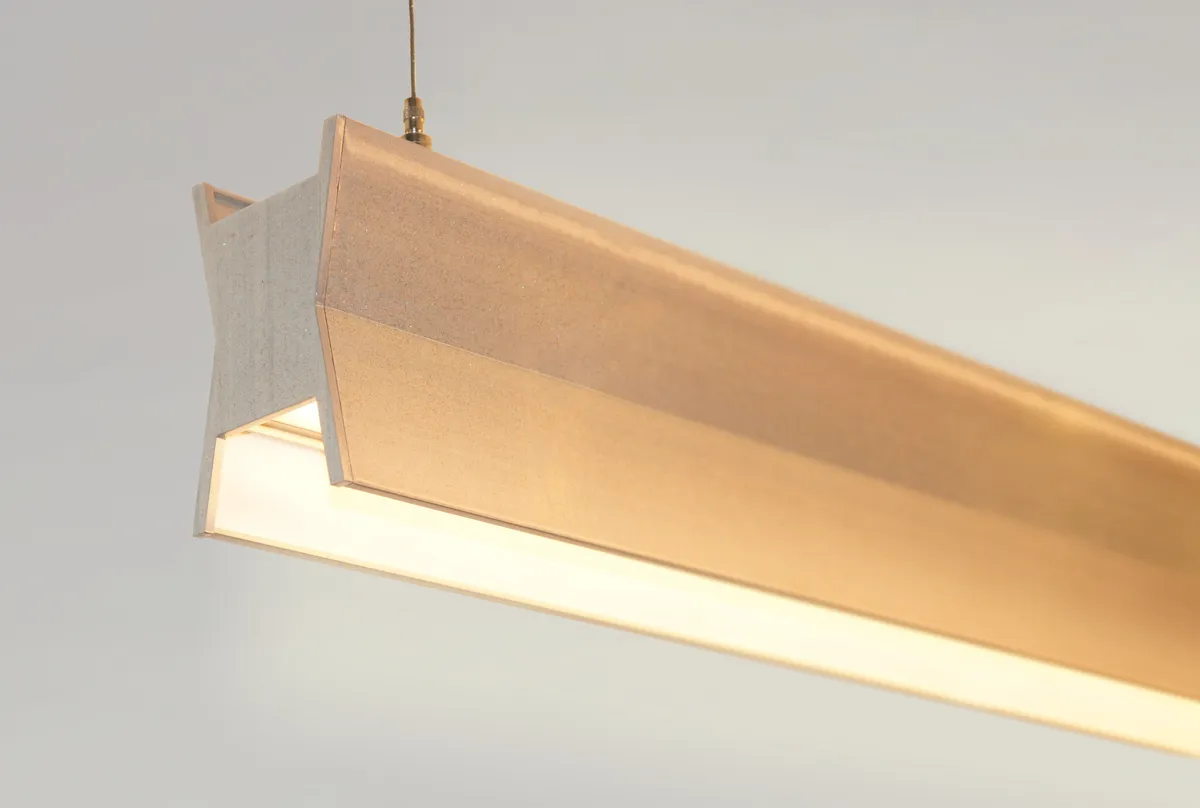

Monarch Regress Lens is a linear cable pendant whose extruded-aluminum profile echoes the shape of a monarch butterfly: a distinctive indent runs down the center of the 2-3/8 in wide by 4 in high housing, casting shadows that give it more character than a plain rectangle. Housings come in nominal 2, 3, 4, 6, and 8 ft lengths (custom lengths in 1 in increments) with continuous rows detailed at submittal, milled extruded-aluminum end caps, and selectable side-reflector colors. The direct component uses an extruded snap-in frosted acrylic regressed lens publishing 350 to 500 lm/ft (5.3 to 7.5 W/ft at 3000K), with independently selectable 350 or 500 lm/ft indirect packages behind Lambertian, 120-degree batwing, flat 150-degree, or asymmetric optics; the up light provides a 160-degree batwing distribution. Standard CCTs are 2700K-4000K with a tunable-white 2700-5000K option, in 80+ or 90+ CRI, driven at universal 110-277 VAC with 0-10V 1% dimming standard and non-dim, Lutron EcoSystem 1%, and custom controls (DALI, DMX, PoE via factory) available. It hangs on gripper-locking aircraft cable (4 ft standard) from round or square canopies, and the Monarch series is also offered in a wall version. Fixtures are IBEW-built in Moonachie, NJ, UL listed for dry and damp locations, rated 50,000 hours, and covered by a limited five-year warranty.
Pick from Monarch Regress Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
