Direct/indirect linear LED pendant with a flush frosted lens, 350 to 1100 lm/ft direct plus optional 350-1000 lm/ft uplight, 2700-4000K, in 3-12 ft lengths and square/rectangle/triangle shapes.
| Wattage | 5.23–10 W/ft |
|---|---|
| Luminous flux | 350–1100 lm/ft |
| Efficacy | 110 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (aircraft cable / stem), Surface, Wall |
| Dimensions | 2" W x 4-5/8" H profile; 3/4/5/6/8/10/12 ft lengths + custom (1 in. increments); square, rectangle, and triangle shapes available |
| Distribution | Direct, Direct/Indirect |
| Finishes | White, Black, Silver, Custom (RAL/Pantone powder coat, wood, anodized, chrome/gold plating) |
| Dimming | 0-10V 1% dimming standard (120V or 277V); non-dim, Lutron EcoSystem 1%; DALI/DMX/PoE on request; 2-circuit direct/indirect wiring option; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

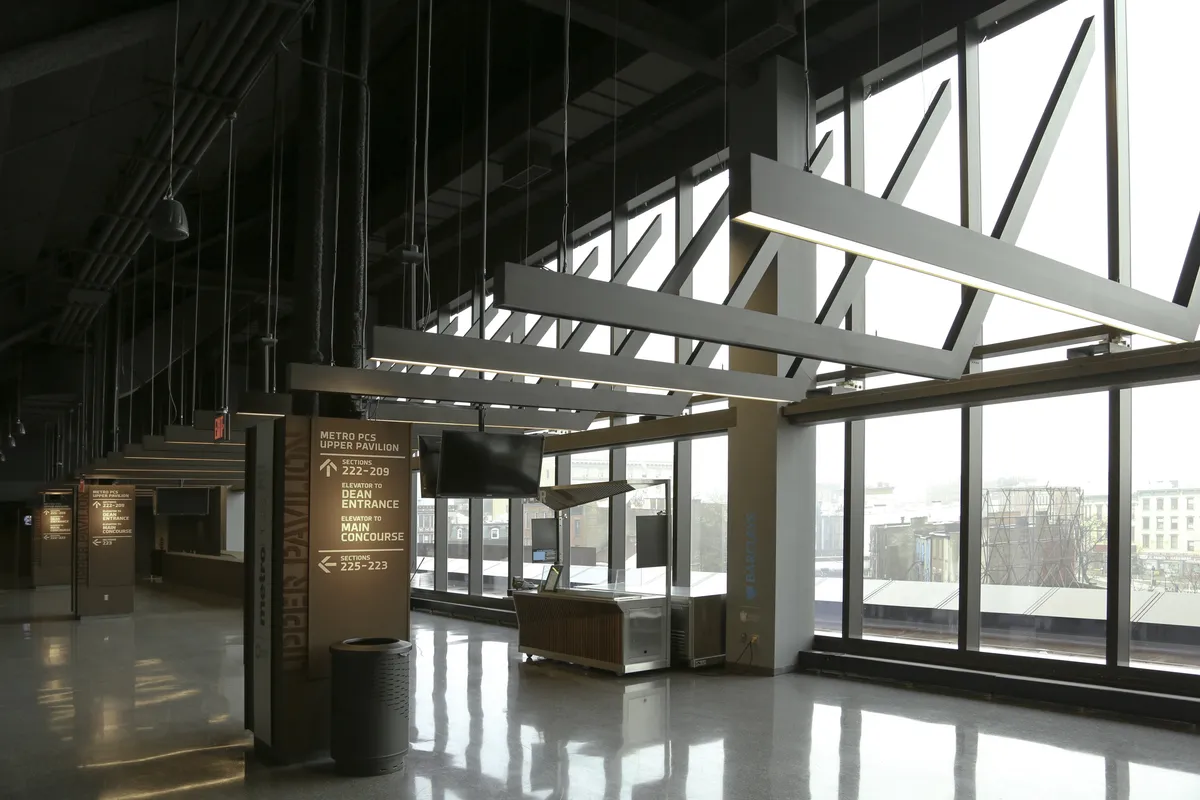

Kayla Flush Lens is the flush-lens version of Picasso Lighting's Kayla direct/indirect linear pendant, used for general up- and down-lighting; a custom version was built for the Barclays Center. The direct component sits behind an extruded snap-in frosted acrylic lens mounted flush with the housing, while indirect LED strips ride in an extruded aluminum channel with a clear acrylic dust cover; indirect optic choices include matte clear, Lambertian white, batwing (120-degree), 150-degree flat, and asymmetric distributions. The 2" W x 4-5/8" H extruded-aluminum profile comes in lengths from 3 to 12 ft plus custom sizes, can be continuously rowed, and can be ordered as squares, rectangles, and triangles. Direct output packages run 350 to 1100 lm/ft (published loads include 5.23 W/ft at 350 lm/ft, 7.68 W/ft at 500 lm/ft, and 10 W/ft at 1100 lm/ft; indirect adds 4-8.6 W/ft), with optional indirect packages of 350 to 1000 lm/ft. CCTs are 2700/3000/3500/4000K at 80+ or 90+ CRI, with tunable white (2700-5000K) available. Drivers are universal 110-277 VAC with 0-10V 1% dimming standard; non-dim, Lutron EcoSystem 1%, DALI/DMX/PoE, two-circuit direct/indirect wiring, and an emergency battery-backup driver are optional. Cable mounting uses gripper-style locking on 48" standard cables to a J-box canopy (stem mounting available), and the series is also offered in Surface and Wall versions plus a Dropped Lens variant. Fixtures are IBEW manufactured and assembled in the USA, BABAA-qualified, UL listed for dry and damp locations, with 50,000-hour rated LED life and a five-year limited warranty.
Pick from Kayla Flush Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
