Seamless bent 5" acrylic-tube ring pendant in 6 to 20 ft outside diameters, 350 to 750 lm/ft direct opal-white packages at 2700-4000K with 80+/90+ CRI and remote drivers.
| Luminous flux | 350–750 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (aircraft cable, canopy) |
| Dimensions | 5" profile acrylic-tube ring; 6/8/10/12/16/20 ft outside diameters (10-16 week lead time); ships in 2-4 clamp-joined sections |
| Distribution | Direct |
| Finishes | White, Black, Silver, Custom (RAL/Pantone powder coat, wood, anodized aluminum, plated aluminum) |
| Dimming | 0-10V 1% dimming (120/277V) or non-dim (120/277V); custom controls on request; universal 110-277 VAC HPF drivers |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

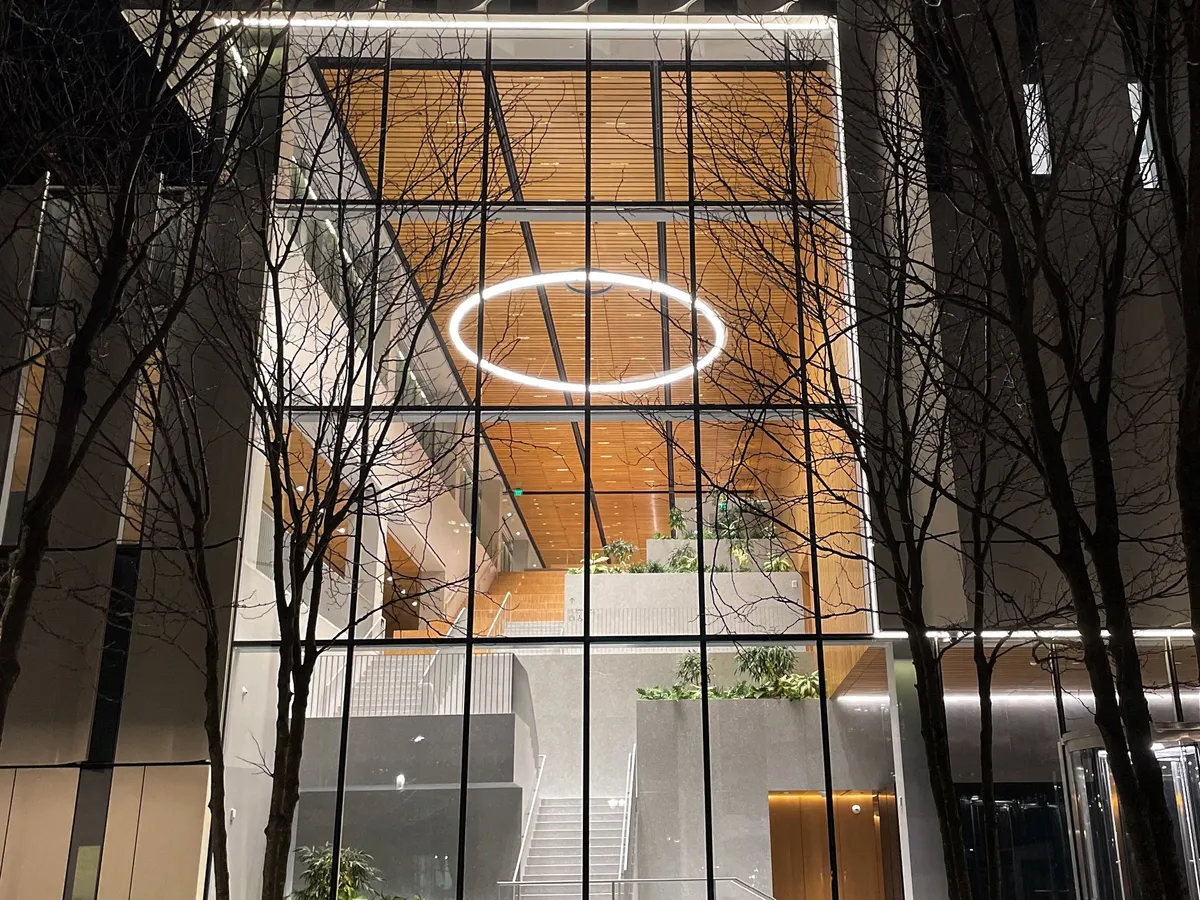

Equinox Ring is the ring-shaped member of Picasso Lighting's Equinox series, originally designed to echo reception-desk shapes and now used in transit and hospital common areas. Like the rest of the series it carries a 5" profile with at least 250 degrees of luminous white acrylic, and because Picasso bends the full 5" tube the rings have no seams like segmented competitors — the trade-off is fixed radius options, published as 6, 8, 10, 12, 16, and 20 ft outside diameters, each quoted at a 10-16 week lead time. Rings ship in 2-4 sections locked together with ring clamps for clean joints, with easy access to the driver and LED boards; per the spec overview all drivers are remote, and they can be tuned to specific lumen outputs. Direct output is offered in 350, 500, and 750 lm/ft opal-white-lens packages — the published performance table lists the 500 lm/ft package at 4.63 W/ft and 108 lm/W. CCTs run 2700K to 4000K in 80+ or 90+ CRI with 3 SDCM binning (0-10V-controlled tunable white available), and LED life is rated at 50,000 hours. Mounting is by aircraft cable with 48" gripper-adjusted cables and various canopies to a standard J-box; larger sizes may require Picasso's reinforced canopy, and big rings can add a non-lighted upper canopy ring for weight distribution. Drivers are UL-recognized, high-power-factor universal 110-277 VAC with 0-10V 1% dimming and non-dim options plus custom controls and an emergency battery driver; a BABAA-compliant build is offered. IBEW manufactured, and covered by a limited five-year warranty.
Pick from Equinox Ring's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
