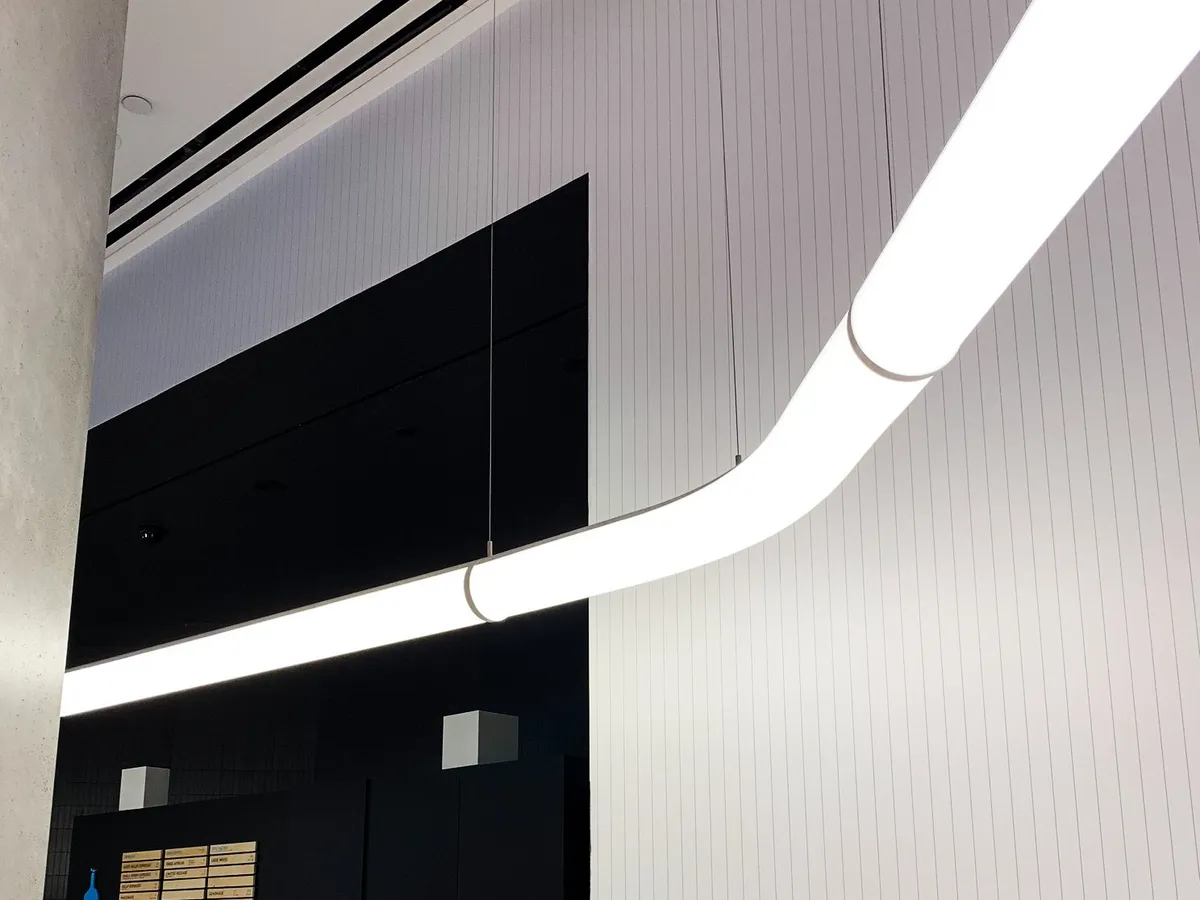

Seamless bent 5" acrylic-tube curved pendant with ~270-degree luminous area, 350 to 750 lm/ft direct packages at 2700-4000K, built into EL, ZEE, U and rectangle patterns from 36" radius corners.
| Luminous flux | 350–750 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (aircraft cable, canopy) |
| Dimensions | 5" P95 acrylic tube in a 5-1/4" x 6-1/2" profile with ~270-degree luminous area; 2/3/4/5/6 ft nominal sections (joiners above 6 ft); 36" radius 90-degree corners for EL/ZEE/U/rectangle patterns |
| Distribution | Direct |
| Finishes | White (optimal), Black, Silver, Custom (RAL/Pantone powder coat, wood, anodized aluminum, plated aluminum) |
| Dimming | 0-10V 1% dimming (120/277V) or non-dim (120/277V); Lutron EcoSystem 1%; custom controls on request; universal 110-277 VAC HPF drivers |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Equinox Curve is the curved-run member of Picasso Lighting's Equinox series, originally designed to echo reception-desk shapes and now used in transit and hospital common areas. The extruded-aluminum housing is milled to accept a full 5" P95 acrylic tube (5-1/4" x 6-1/2" overall profile) that is bent whole — so curves have no seams — giving at least 250 degrees (drawn as ~270 degrees) of luminous white acrylic; the seamless bending limits radii, with fixed 90-degree corners published at a 36" (3 ft) rounded outside radius and complex turns handled by milled-aluminum joiners. Straight sections come in 2-6 ft nominal sizes (joiners above 6 ft), and the drawing set publishes EL, ZEE, U, and rectangle/square patterns; each curve ships in 2-4 sections locked together with ring clamps. Direct output is offered in 350, 500, and 750 lm/ft opal-white packages — the published performance table lists the 500 lm/ft package at 4.63 W/ft and 108 lm/W — with drivers integral and tunable to specific outputs. CCTs run 2700K to 4000K in 80+ or 90+ CRI with 3 SDCM binning (tunable white 2700-5000K available), and LED life is rated at 50,000 hours. The fixture cable-mounts with 48" gripper-adjusted cables (1/4" stems also noted) from round or square 5" J-box canopies with slot-grid, T-grid, rod, and Unistrut adapters, larger sizes taking Picasso's reinforced canopy. Drivers are UL-recognized, high-power-factor universal 110-277 VAC with 0-10V 1% dimming, non-dim, and Lutron EcoSystem 1% options plus custom controls and a factory-installed emergency battery driver; a BABAA-compliant build is offered. IBEW manufactured, and covered by a limited five-year warranty.
Pick from Equinox Curve's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
