Acoustic linear pendant styled like a standard linear fixture — 350 to 1,000 lm/ft direct at up to 122 lm/W (matching indirect packages optional), 2700-4000K, 80+/90+ CRI, in 4 ft and 8 ft lengths with 6" to 16" tall sound-absorbing panels.
| Wattage | 2.88–8.48 W/ft |
|---|---|
| Luminous flux | 350–1000 lm/ft |
| Efficacy | 118 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (aircraft cable, canopy), Pendant (stem), Surface, Wall |
| Dimensions | 1/2" thick acoustic side panels, 6" to 16" tall; 4 ft and 8 ft lengths in 6"/8"/12"/16" panel heights; custom sizes and continuous rows available |
| Distribution | Direct, Direct/Indirect |
| Finishes | 20 acoustic PET panel colors (Chalk, Ink, Chocolate, Caramel, Khaki, Oatmeal, Zinc, Shadow, Fog, Periwinkle, Aero, Lapis, Forest, Peridot, Pear, Topaz, Carrot, Ruby, Flamingo, Plum), Premium woodgrain panels (Eucalyptus, Ironbark, Merbau, Spotted Gum) |
| Dimming | 0-10V 1% dimming standard (120/277 V); non-dim and Lutron EcoSystem 1% options; DALI, DMX, PoE and other advanced controls on request; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

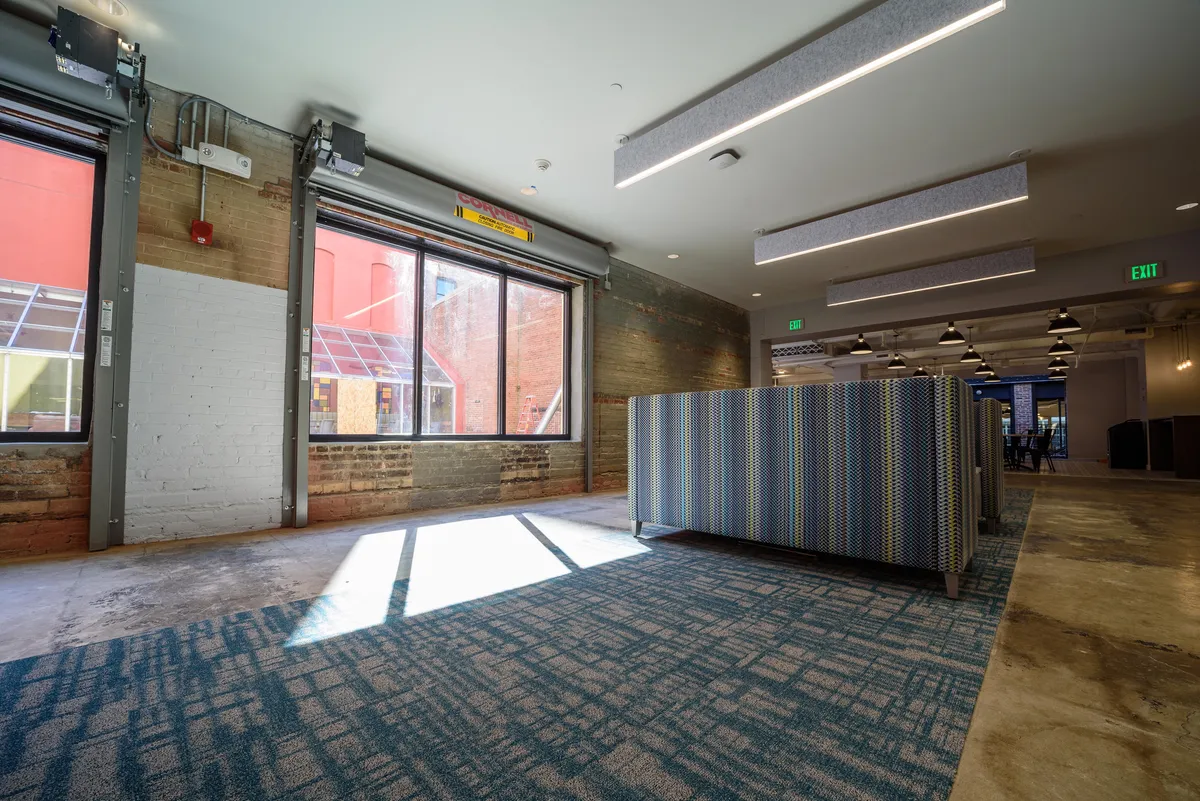

The Echo Regress Lens is the linear-fixture-styled member of Picasso Lighting's acoustic series, combining a regressed frosted-white acrylic direct lens with 1/2"-thick acoustic sound-reduction side panels 6" to 16" tall (NRC 0.45-0.9, Class A fire rated per ASTM E84). Direct output is offered in 350, 500, 750, and 1,000 lm/ft packages drawing 2.88 to 8.48 W/ft at 118-122 lm/W, with optional indirect packages at the same four lumen levels and Lambertian, 120-degree batwing, 150-degree flat, and asymmetric indirect optics; indirect LED strips mount in an extruded-aluminum channel with a clear acrylic dust cover. Standard sizes are 4 ft and 8 ft lengths in 6", 8", 12", and 16" panel heights, with custom sizes and continuous rows available. Standard CCTs span 2700K to 4000K (tunable white and warm dim available) at 80+ or 90+ CRI with 3 SDCM binning, and LED life is rated at 50,000 hours. Drivers are universal 110-277 VAC with 0-10V 1% dimming standard; non-dim, Lutron EcoSystem 1%, and DALI/DMX/PoE controls are available, and the fixture cable- or stem-mounts from J-box canopies with the Echo family also offered in surface and wall versions. Fixtures are IBEW manufactured and assembled in the USA, UL listed for dry and damp locations, and carry a limited five-year warranty.
Pick from Echo Regress Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
