Curved 2"-wide pendant from Picasso's Curve Series — direct/indirect output of 350 or 500 lm/ft, 2700-4000K plus tunable white, in 30/45/60/90-degree arcs on 2-4 ft radii, straight sections, and fully custom patterns.
| Wattage | 4.3–6.02 W/ft |
|---|---|
| Luminous flux | 350–500 lm/ft |
| Efficacy | 83 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (aircraft cable, J-box / slot grid / T-grid / Unistrut / threaded rod canopies), Pendant (stem) |
| Dimensions | 2" W x 4" H profile; 30/45/60/90-degree arcs on 2/3/4 ft radii, 4 ft and 8 ft straights, custom patterns in 1" increments |
| Distribution | Direct, Direct/Indirect |
| Finishes | White, Black, Silver, Custom (RAL/Pantone, wood, anodized, chrome/gold plated) |
| Dimming | 0-10V 1% dimming standard (120/277V); non-dim; Lutron EcoSystem 1%; Lutron Athena wireless node, POE, DALI, DMX optional; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

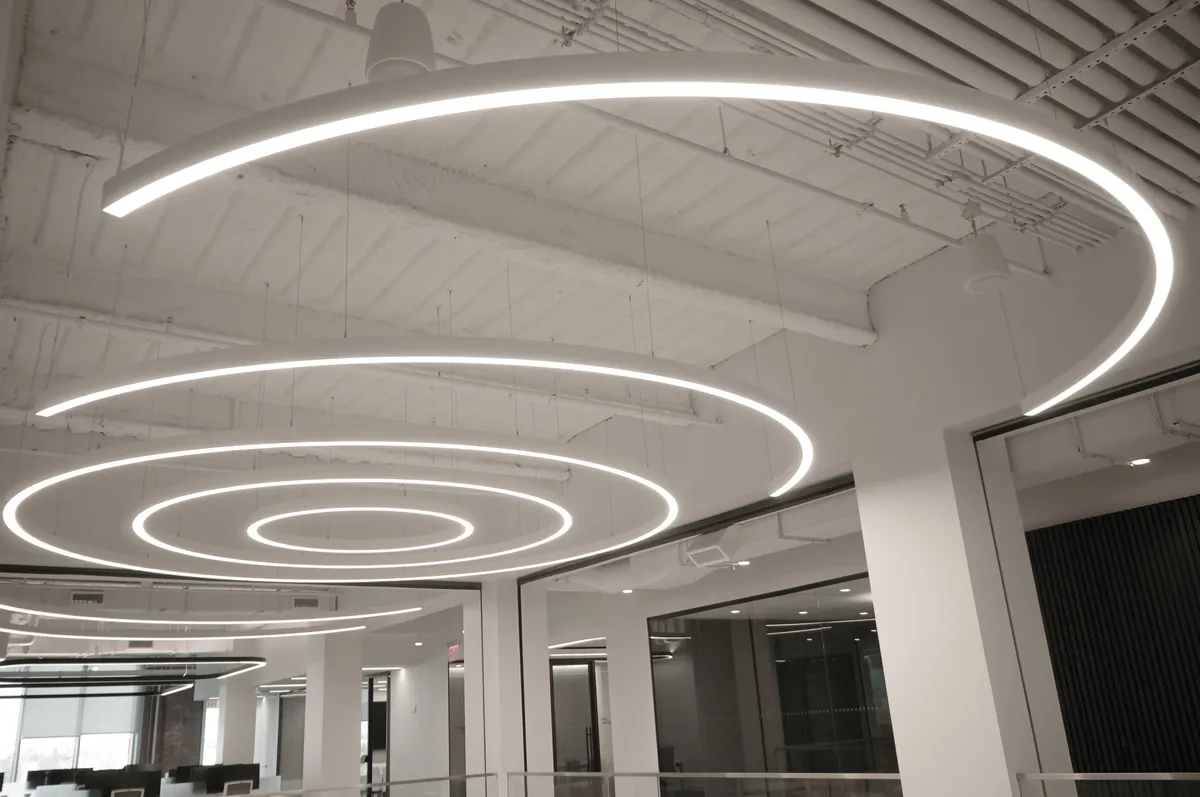

Curves-2 Flush Lens is the 2" x 4" profile of Picasso Lighting's Curve Series, a curved pendant built from aluminum extrusions bent to standard radii — 30, 45, 60, and 90-degree arcs on two, three, and four-foot radii, plus 4 ft and 8 ft straight sections and custom patterns in 1-inch increments (shapes ship in 1-4 clamp-joined sections). A slightly regressed lift-and-shift acrylic lens covers the direct side (Opal White), with an optional Matte Clear indirect optic; the LED performance table publishes 350 lm/ft (4.3 W/ft direct, 3.4 W/ft indirect) and 500 lm/ft (6.02 W/ft direct, 4.8 W/ft indirect) at 3000K. Standard CCTs run 2700K-4000K in 80+ or 90+ CRI, with tunable white (2700-5000K) and warm dim available and LED life rated at 50,000 hours. Drivers are universal-voltage 110-277 VAC with 0-10V 1% dimming standard; non-dim, Lutron EcoSystem 1%, Lutron Athena wireless nodes, emergency battery backup, and POE/DALI/DMX controls are optional. It hangs on gripper-locking aircraft cable (48" standard) from round or square canopies with J-box, slot-grid, T-grid, Unistrut, and threaded-rod adapters, or can be stem mounted; the Curve Series is also offered in recessed and surface versions. IBEW-manufactured in Moonachie, NJ (BABAA-compliant option), UL listed for dry and damp locations, with a five-year limited warranty.
Pick from Curves-2 Flush Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
