Slim 3" diameter round linear pendant with remote drivers, offered in 350 to 1,000 lm/ft direct and indirect packages, 2700-4000K, 80+/90+ CRI, in 4-8 ft and custom lengths.
| Luminous flux | 350–1000 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (cable-powered, remote driver), Recessed (trim / trimless), Surface |
| Dimensions | 3" diameter round profile; 4/6/8 ft standard lengths plus custom lengths (1" increments); continuous rows available |
| Distribution | Direct, Indirect, Direct/Indirect |
| Finishes | White, Black, Silver, Custom (RAL/Pantone powder coat, wood, anodized aluminum, plated aluminum) |
| Dimming | Remote 0-10V 1% dimming (120/277V); remote non-dim; remote Lutron EcoSystem 1%; remote custom controls on request; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

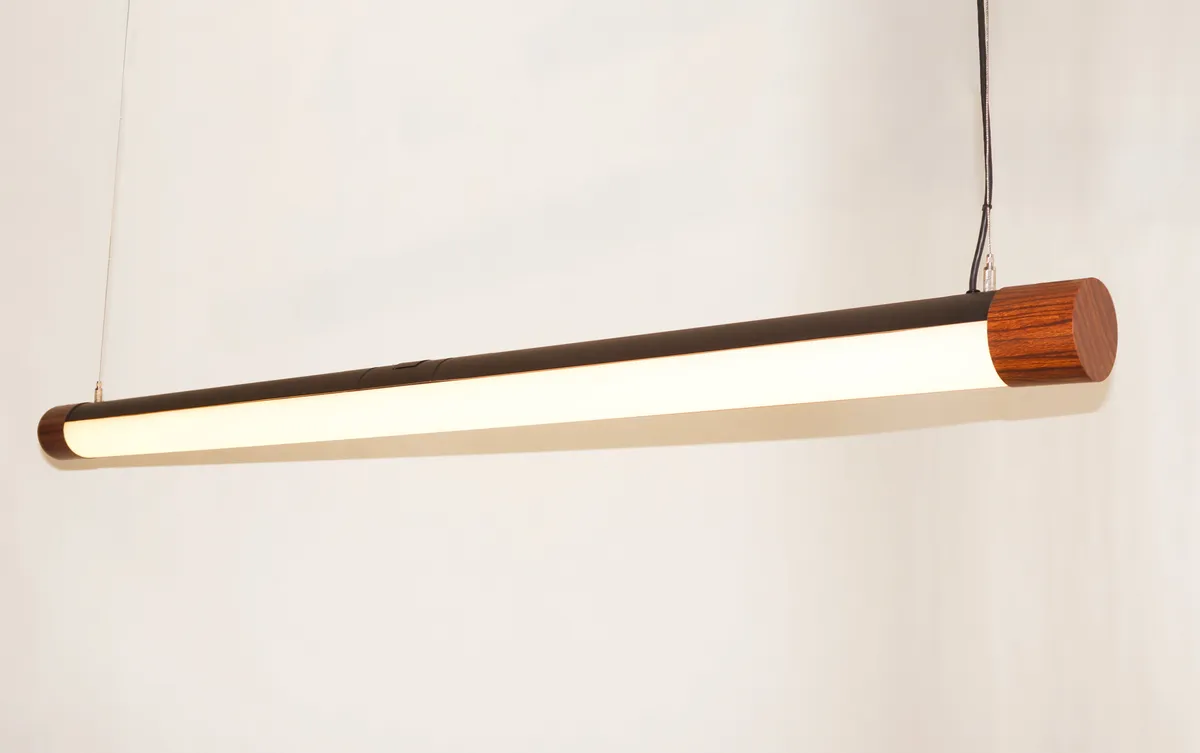

Cobra 3 is the small-profile round member of Picasso Lighting's Cobra series (descended from the Cobra X custom pendant), built around a single 3" diameter extruded-aluminum tube with a 203-degree snap-in frosted acrylic lens and decorative end caps that can match the housing or take a contrasting finish. The profile is too small for an onboard driver, so the fixture is cable-supported and powered from a remote driver with gripper-style locking, 4 ft standard cables, and round or square 5" J-box canopies (plus slot-grid, T-grid, rod, and Unistrut adapters); the spec form also publishes recessed trim/trimless and surface housings with integral drivers. It configures as direct only, indirect only, or direct/indirect (120-degree indirect element), with direct lumen packages of 350, 500, 700, and 1,000 lm/ft and indirect packages of 350, 500, 750, and 1,000 lm/ft — the published performance table lists 350 lm/ft at 5.02 W/ft (68 lm/W) and 500 lm/ft at 7.4 W/ft (66 lm/W), with indirect at 2.7 and 3.9 W/ft. Standard sizes are 4, 6, and 8 ft plus custom lengths in 1" increments, with continuous rows available. CCTs run 2700K to 4000K in 80+ or 90+ CRI with 3 SDCM binning (tunable white 2700-5000K, warm dim, and custom lumen tuning available), and LED life is rated at 50,000 hours. Remote drivers are UL-recognized, universal 110-277 VAC with 0-10V 1% dimming, non-dim, and Lutron EcoSystem 1% options plus custom controls and a remote emergency battery driver. IBEW manufactured and assembled in the USA, UL listed for dry and damp locations, and covered by a limited five-year warranty.
Pick from Cobra 3's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
