Uplight-only 2" x 2" linear pendant with integral drivers, 350-1000 lm/ft indirect output at 102-110 lm/W, 2700-4000K in 4/6/8/12 ft lengths with cable or stem mounting.
| Wattage | 3.2–10.18 W/ft |
|---|---|
| Luminous flux | 350–1000 lm/ft |
| Efficacy | 98 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (aircraft cable, gripper-adjustable), Pendant (stem), Wall |
| Dimensions | 2" x 2" nominal profile; 4/6/8/12 ft nominal lengths, custom lengths (1" increments) and continuous rows |
| Distribution | Indirect |
| Finishes | White, Black, Silver, Custom (RAL/Pantone powder coat, wood, anodized aluminum, chrome/gold plating) |
| Dimming | 0-10V 1% dimming standard (120/277V); non-dim; Lutron EcoSystem 1%; custom controls incl. DALI/DMX/PoE on request; tunable white 2700-5000K option; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

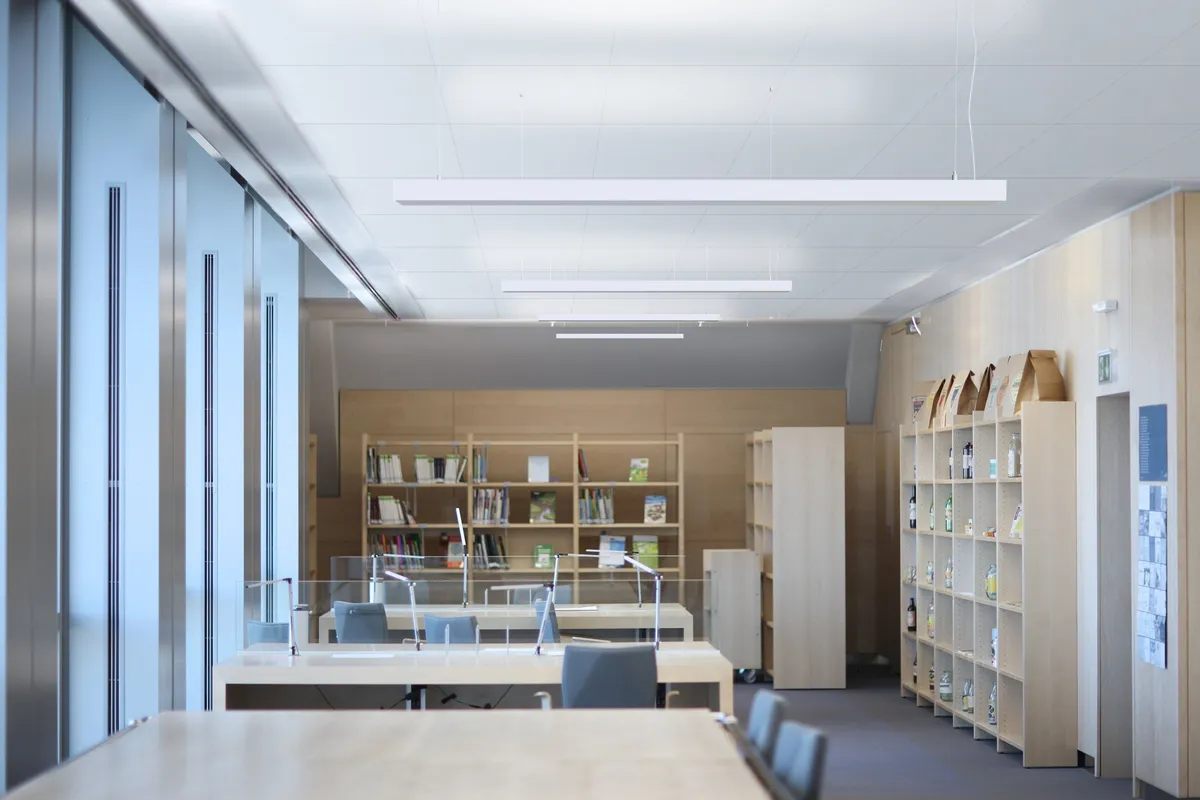

Claude 2 is Picasso Lighting's Sienna 2.5 profile turned upside down, producing uplight only through a flush extruded frosted-acrylic snap-in lens. The extruded-aluminum housing carries a nominal 2" x 2" section with integral drivers and comes in 4, 6, 8, and 12 ft nominal lengths plus custom sizes and continuous rows. Indirect output is published at 350, 500, 750, and 1000 lm/ft (3.2-10.18 W/ft, 102-110 lm/W at 3000K), with indirect optics including matte clear, 120-degree batwing, 150-degree flat, and two asymmetric distributions. Standard CCTs run 2700K to 4000K in 80+ or 90+ CRI (3 SDCM), with tunable white 2700-5000K, warm dim, and custom lumen tuning available. Drivers are UL-recognized with universal 110-277 VAC input and 0-10V 1% dimming standard; non-dim, Lutron EcoSystem 1%, and custom controls (DALI, DMX, PoE) are offered, along with an optional factory-installed emergency battery driver. Cable mounting (48" gripper-adjustable standard) with round or square 5" canopies to a standard J-box, stem mounting, and a wall-mount version are available; fixtures are IBEW-manufactured in the USA, UL listed for dry and damp locations, and carry a limited five-year warranty.
Pick from Claude 2 Indirect Up Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
