OCL Architectural Lighting · Pendant
OCL's minimal 1.75 in square-profile ring luminaire in 24/36/48/60/72 in diameters, offered as Rev In, Out, Down or Up/Down distributions with a seamless silicone diffuser and delivering 1,176–7,740 delivered lumens (80+ or 90+ CRI).
| Wattage | 19–107 W |
|---|---|
| Luminous flux | 1176–7740 lm |
| Efficacy | 72 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (angled or vertical aircraft cables; integral or remote driver), Surface / ceiling, Wall (sconce) |
| Dimensions | 1.75 in square profile ring; 24, 36, 48, 60 and 72 in nominal diameters |
| Distribution | Direct (RV3 Rev Down), Direct/Indirect (RV4 Rev Up/Down), Asymmetric (RV1 Rev In / RV2 Rev Out) |
| Finishes | Matte White, Black, Brass Metallic, Bronze, Black Textured, Graphite, Goldtastic, Steel Gray, Silver Metallic, Sky White, White Textured, Brushed Aluminum, RAL / Pantone / custom |
| Dimming | 0-10V dimming to 1% standard (DM1); optional BIOS SkyBlue dynamic circadian light engine; universal 120–277V input; field-replaceable driver |
| Rated environments | Dry, Damp (optional ULD label) |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

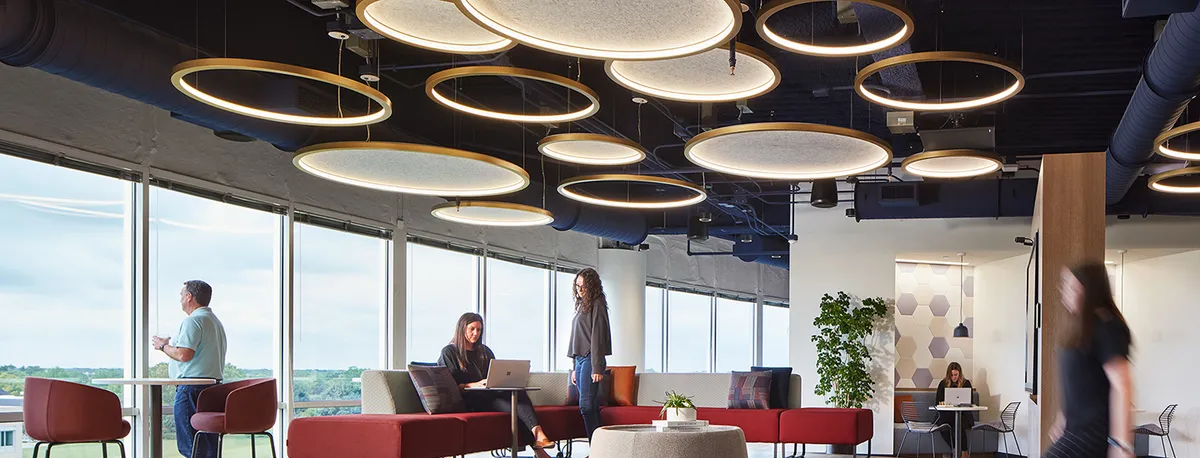

Rev is OCL Architectural Lighting's minimal ring luminaire — a 1.75 in square-profile extruded-and-welded aluminum circle with a seam-free extruded silicone diffuser that eliminates light leaks and visible joints. It is offered in four distribution series — RV1 Rev In, RV2 Rev Out, RV3 Rev Down (direct) and RV4 Rev Up/Down (direct/indirect) — across 24, 36, 48, 60 and 72 in nominal diameters, and can be clustered or built into custom shapes and arcs. At 3500K, 80+ CRI, delivered output for the direct RV3 runs 1470/2240/3080/3850/4480 lm on LED1 and 2240/3710/4760/6440/7350 lm on LED2 across the five sizes, while the RV1/RV2/RV4 series span 1176–7740 lm depending on distribution and output tier (a 0.85 multiplier applies for the 90+ CRI engine). Color temperatures are 2700K, 3000K, 3500K and 4000K in 80+ CRI (R9>0) or 90+ CRI (R9>50). Fixtures use OCL proprietary LED arrays with Nichia 757 diodes on universal 120–277V input with 0-10V dimming to 1% standard (DM1), field-replaceable LED arrays and drivers, and an optional BIOS SkyBlue dynamic circadian light engine. Pendant hanging systems offer angled or vertical aircraft cables with integral or remote drivers, and the family is also available in ceiling/surface and wall (sconce) mounts. Standard finishes include Matte White, Black, Brass Metallic, Bronze, Black Textured, Graphite, Goldtastic, Steel Gray, Silver Metallic, Sky White and White Textured powder coats plus Brushed Aluminum, with RAL, Pantone and custom finishes available. ETL listed to UL 1598/2108 for dry locations (optional damp label), Build America Buy America compliant, RoHS compliant, and backed by a five-year limited warranty.
Pick from Rev's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
