OCL Architectural Lighting · Pendant

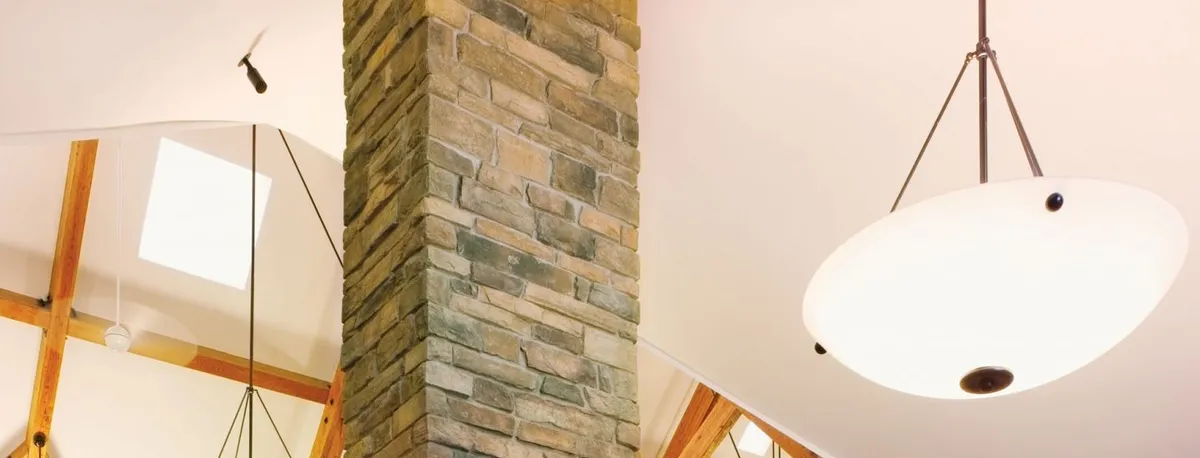

OCL's Orion is a simple shallow-dome acrylic luminaire accented by tripod hanging systems, offered in 23–42 in diameters as pendant, ceiling, and sconce mounts, delivering 4,500 lm (LED1) or 9,100 lm (LED2).
| Wattage | 50–105 W |
|---|---|
| Luminous flux | 4500–9100 lm |
| Efficacy | 87 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (suspended), Surface ceiling, Wall sconce |
| Dimensions | 23 / 30 / 36 / 42 in dia |
| Finishes | Black, Brass Metallic, Bronze, Black Textured, Graphite, Goldtastic, Matte White, Steel Gray, Silver Metallic, Sky White, White Textured, Polished Aluminum, Brushed Aluminum, Pewter, Polished Brass, Brushed Brass, Antique Brass, Statuary Bronze, Satin Nickel, Oil Rubbed Bronze |
| Dimming | 0-10V (1%) |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
The Orion is OCL Architectural Lighting's simple shallow-dome decorative luminaire, its dome accented by tripod hanging systems and constructed from solid, non-ferrous brass or aluminum. The thermally formed acrylic ranges from 3/16 to 1/4 in thick depending on size — virgin white acrylic is UV-stable (UL-94 HB flame class) and all faux acrylic colors are mixed completely through to avoid noticeable fading. It is offered in four diameters — 23, 30, 36 and 42 in — as an Orion Pendant, Ceiling, and Sconce, with pendant hanging by a single center stem (P1AA), three angled stems (P1AH), or three angled aircraft cables (P1ED) to a collector and a single center stem to canopy. The LED source delivers 4,500 delivered lumens at 50 W (LED1) or 9,100 delivered lumens at 105 W (LED2) at 3500K with standard white acrylic (0.95 multiplier at 2700K, 0.97 at 3000K, 1.03 at 4000K), on universal 120–277 V drivers with 0-10V 1% dimming; a screw-in incandescent option (three to eight E26 A19 sockets, 150 W max per lamp) is also available on 120 V. Diffusers come in Gloss White, Matte White, Faux Alabaster, and White Swirl acrylic, and metal is finished in eleven powder-coat colors plus nine premium hand-applied metal finishes including polished and brushed aluminum.
Pick from Orion's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
