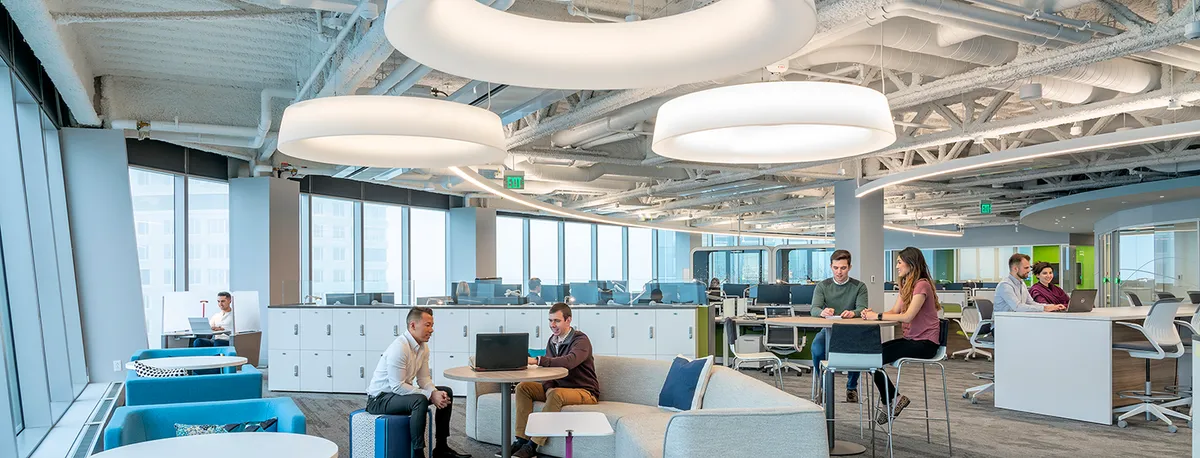

OCL Architectural Lighting · Pendant
One-piece molded tapered-drum LED pendant from OCL with an open center, offered in five diameters (14–72 in) as a suspended pendant or surface-ceiling mount and delivering 1,430–21,540 delivered lumens at 80+/90+ CRI across 2700–4000K.
| Wattage | 15–185 W |
|---|---|
| Luminous flux | 1430–21540 lm |
| Efficacy | 116 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (suspended), Surface ceiling mount (14 & 24 in) |
| Dimensions | Tapered drum: 14 / 24 / 36 / 48 / 72 in dia; 10.5 in profile (14 in), 11.5 in profile (24–72 in) |
| Distribution | Direct/Indirect |
| Finishes | Matte White, Black, Brass Metallic, Bronze, Black Textured, Graphite, Goldtastic, Steel Gray, Silver Metallic, Sky White, White Textured, Brushed Aluminum (metal) |
| Dimming | 0-10V (1%) or Lutron Hi-Lume EcoSystem 1% (LDE1) |
| Rated environments | Dry, Damp location (ULD option) |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Loop is OCL's tapered-drum LED luminaire, built around a seamless single-piece molded diffuser with an open center (except on the 14" size) that reads as a clean ring of light. It is offered in two series — LO1 (Loop) and LO2 (Loop with a metal outer shroud for directed downlight) — in five diameters: 14", 24", 36", 48", and 72". Two integrated LED outputs are published: LED1 delivers 1,430 lm (15 W) at 14", 3,610 lm (30 W) at 24", 7,590 lm (65 W) at 36", 10,830 lm (95 W) at 48", and 16,180 lm (140 W) at 72"; the higher LED2 output (unavailable on 14") delivers 4,280 lm (35 W) at 24", 8,590 lm (75 W) at 36", 12,890 lm (110 W) at 48", and 21,540 lm (185 W) at 72" — all values at 3500K, 80+ CRI, with efficacy up to 117 lm/W. The light source is available at 2700K, 3000K, 3500K, and 4000K in both 80+ CRI (R9 > 0) and 90+ CRI (R9 > 50, use a 0.85 lumen multiplier). The LO1 luminaire provides roughly 58% direct / 42% indirect distribution. Hanging systems are P1EC (three angled aircraft cables to a canopy), P1EM (four vertical aircraft cables to four mounting points), or C1NA surface ceiling mount (14" and 24" only), all field-adjustable to 48", 100", or 144" OAH. Profile height is 10.5" on the 14" and 11.5" on the 24"–72" sizes. Finished in a matte white molded diffuser with OCL's standard powder-coat and premium metal palette, it runs on 120–277V with 0-10V (1%) dimming standard or optional Lutron Hi-Lume EcoSystem 1% (LDE1); BIOS SkyBlue circadian light engines are available to order. Constructed of aluminum and steel with field-replaceable LED arrays and integral driver(s), Loop is ETL listed to UL1598 for indoor dry locations (damp-label optional) and carries a 5-year warranty. Designed and fabricated in St. Louis, Missouri.
Pick from Loop's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
