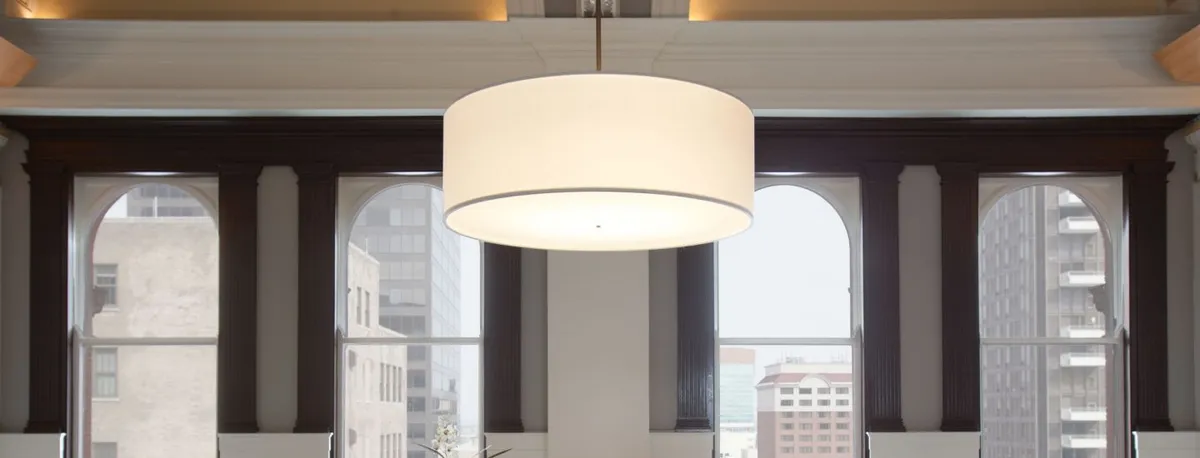

OCL Architectural Lighting · Pendant
OCL's hand-rolled fabric drum pendant in 24, 36 and 48 in diameters with a gloss-white acrylic bottom diffuser, delivering 3,150 or 6,350 delivered lumens (80+ or 90+ CRI).
| Wattage | 50–105 W |
|---|---|
| Luminous flux | 3150–6350 lm |
| Efficacy | 60 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant, 3 angled aircraft cables to canopy (P1EC), Pendant, single center stem (P1AA) |
| Dimensions | Drum: Ø24 in × 10 in H, Ø36 in × 14 in H, Ø48 in × 16 in H |
| Distribution | Direct/indirect (drum with bottom diffuser) |
| Finishes | Pure White fabric, Cream fabric, Ginger fabric, Driftwood fabric, Habanero fabric, Espresso fabric, Midnight Black fabric, Black, Brass Metallic, Bronze, Black Textured, Graphite, Goldtastic, Matte White, Steel Gray, Silver Metallic, Sky White, White Textured, Polished Aluminum, Brushed Aluminum, Pewter, Polished Brass, Brushed Brass, Antique Brass, Statuary Bronze, Satin Nickel, Oil Rubbed Bronze, RAL / Pantone / custom |
| Dimming | 0-10V dimming to 1% standard (DM1); universal 120–277V input; field-replaceable driver |
| Rated environments | Dry, Damp (optional ULD label) |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Fabric (FB1) is OCL Architectural Lighting's round drum pendant — a steel welded frame wrapped in a hand-rolled fabric shade with elegant hand-rolled trims at the top and bottom edges, closed by a gloss white acrylic bottom diffuser (UV-stable, UL-94 HB flame rated) that can optionally be specified with an etched pattern (EPD). Seven standard fabrics are offered — Pure White, Cream, Ginger, Driftwood, Habanero, Espresso and Midnight Black — with custom fabrics and customized shapes and sizes available. Two engines using OCL proprietary LED arrays with Nichia 757 diodes are offered at 3500K, 80+ CRI, with identical output across all three diameters: LED1 delivers 3,150 delivered lumens at 50 W system and LED2 delivers 6,350 delivered lumens at 105 W system, with per-CCT multipliers of 0.95 at 2700K, 0.97 at 3000K and 1.03 at 4000K and a 0.85 multiplier for the 90+ CRI (R9>50) engine. Color temperatures are 2700K, 3000K, 3500K and 4000K in 80+ CRI (R9>0) or 90+ CRI. The fixture runs on universal 120–277V input with a 0-10V electronic driver dimming to 1% standard (DM1, power factor >0.9, THD <20%, field-replaceable, rated to -40 °F). Two single-point hanging systems are offered, both mounting to a 4x4 octagon or 4 in round J-box: P1EC, a pendant with three angled aircraft cables and a white power cord to an 8 in canopy, and P1AA, a pendant with a single center stem. Diameters and heights are 24 in × 10 in H (18 lbs), 36 in × 14 in H (29 lbs) and 48 in × 16 in H (50 lbs). Finishes span solid, textured and metallic powder coats — Black, Brass Metallic, Bronze, Black Textured, Graphite, Goldtastic, Matte White, Steel Gray, Silver Metallic, Sky White, White Textured — plus premium metals Polished Aluminum, Brushed Aluminum, Pewter, Polished Brass, Brushed Brass, Antique Brass, Statuary Bronze, Satin Nickel and Oil Rubbed Bronze, with RAL, Pantone and custom finishes available. The luminaire is ETL listed to UL 1598 for indoor dry locations (optional damp label), RoHS compliant, and backed by a five-year limited warranty.
Pick from Fabric's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
