Ø 24-inch acoustic pendant family with sound-absorbing recycled-felt shades in three forms — Aera (XPoint direct/indirect), Flair (cylindrical-diffuser direct/indirect), and Globe (IRO exposed-globe direct) — delivering roughly 400–2135 lm at 80/90/95+ CRI with static-white, full-spectrum, SOLA dim-to-warm, and DUO tunable-white options.
| Wattage | 10–21 W |
|---|---|
| Luminous flux | 403–2135 lm |
| Efficacy | 102 lm/W |
| Color temperature (CCT) | 2200K / 2400K / 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | ≥90 |
| Beam angle | 15° / 25° / 35° / 50° / 80° / 90° |
| Mounting | Pendant (power cord suspension) |
| Dimensions | Ø 24" acoustic felt shade (Ø 24 15/16" actual); Aera arc shade, Flair cylindrical diffuser, Globe with Ø 6" or Ø 8" exposed globe; 36-72" power cord |
| Distribution | Direct, Direct/Indirect |
| Finishes | Matte white, Matte black, Custom RAL |
| Dimming | 0-10V 1% (D1) standard; ELV, TRIAC (120V); remote-driver Lutron Hi-lume 1% EcoSystem, DALI, eldoLED 1% ECOdrive & 0.1% SOLOdrive 0-10V, DMX, Lutron DALI-2 digital; Chromawerx SOLA dim-to-warm & DUO tunable-white drivers; PoE compatible; 120V/277V/UNV input, 347V with RD1 driver |
| Rated environments | Dry, Damp location |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

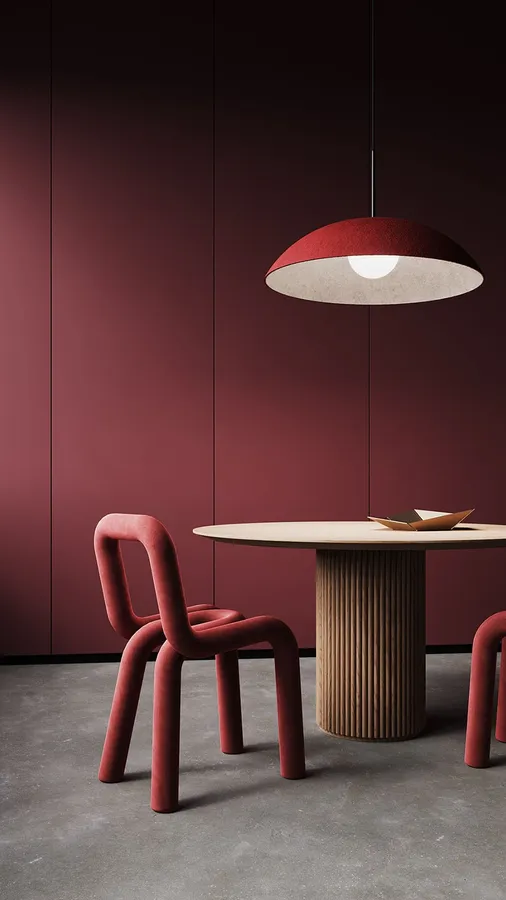

Arq Acoustix is Lumenwerx's Ø 24" acoustic pendant collection, pairing architectural light with a sound-absorbing arc-shaped shade made of felt manufactured from recycled PET bottles (100% polyester, up to 50% recycled content, ASTM E-84 Class A fire rating, moisture resistant). It ships in three shade forms sharing one platform: the Arq Aera, whose XPoint Refraction Technology optics give precise, low-glare beams in direct and direct/indirect distributions; the Arq Flair, a cylindrical-diffuser take on the same direct and direct/indirect engine; and the direct-only Arq Globe, an exposed Ø 6" or Ø 8" globe using an Isotropic Radiant Optic (IRO) for omnidirectional light. Delivered output spans roughly 400 to 2135 lm across the family (Aera/Flair direct at 10/14/20 W, indirect fully-frosted diffusers, and Globe at 15/21 W), with efficacy published up to 113 lm/W. The compact COB LED module is offered in 80+, 90+, or 95+ CRI (elevated R9 at 90+ and above, 2 SDCM), plus a full-spectrum static-white option enriched in the 480 nm cyan region for circadian strategies. Aera covers 2200/2400/2700/3000/3500/4000/5000K while Flair and Globe cover 2700–4000K; Chromawerx SOLA dim-to-warm (35K to 22K) and DUO tunable-white (6500K to 2700K) drivers are available. Aera direct beams come in 15/25/35/50/80/90 degrees and Flair in 15/25/35/50 degrees, with Solite, frosted, clear, and hex-louver accessories. Dimming is 0-10V to 1% standard, with ELV, TRIAC, Lutron Hi-lume 1% EcoSystem, DALI, eldoLED 1% ECOdrive and 0.1% SOLOdrive, DMX, and Lutron DALI-2 remote-driver options; PoE compatible; 120V/277V/UNV input (347V with the RD1 driver). Four two-tone felt combinations are offered (Fog/Cloudy, Midnight/Cloudy, Latte/Sand, Cherry/Sand) with matte white, matte black, or custom RAL cylinder and canopy finishes, on a 36-72" power cord with flat, conduit-feed, direct-mount, or deep canopies. An Acoustix Value Calculator sizes fixture counts for good/better/best reverberation reduction (up to 50%). ETL listed to UL 1598 and CSA C22.2 No. 250.0 for indoor dry/damp locations, WELL-aligned for light and sound features, and backed by a five-year limited warranty.
Pick from Arq Acoustix's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
