Edge-lit circular suspension pendant with an integrated Spot.Mate downlight, delivering 1,900–3,000 lm from Nichia LEDs at CRI > 90.
| Wattage | 33–59 W |
|---|---|
| Luminous flux | 1900–3000 lm |
| Efficacy | 51 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5700K |
| CRI | ≥90 |
| IP rating | IP40 |
| Mounting | Suspended |
| Dimensions | Ø500–Ø900 mm |
| Distribution | Direct |
| Finishes | White, Black, Custom RAL/NCS/Pantone |
| Rated lifetime | 60,000 h |
| Warranty | 2 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

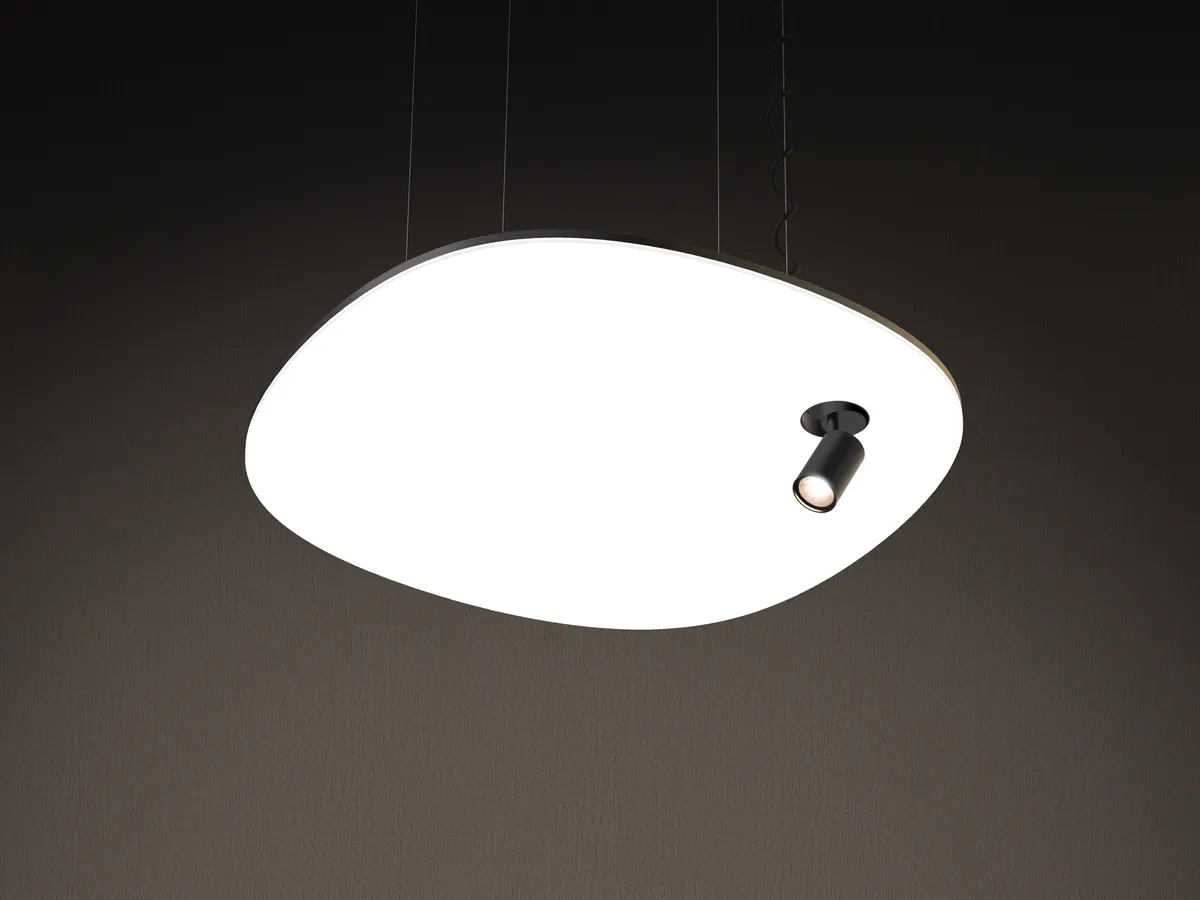

Patch is a Folio architectural suspension pendant in aluminum and methacrylate, pairing a Nichia LED ring with an integrated Spot.Mate accent spotlight. Three diameters (Ø500, Ø700, Ø900 mm) deliver 1,900 lm to 3,000 lm, with static CCTs of 2700/3000/3500/4000/5700 K and CRI Ra ≥ 90 (R9 ≥ 50). Available with remote or integrated power supply on a 24 V DC input, rated IP40 with an L90 > 60,000-hour rated lifespan.
Pick from Patch's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
