Folio's hexagonal architectural luminaire in aluminium and methacrylate, offered suspended or ceiling-mounted from Ø600 to Ø1000 mm.
| Wattage | 36–60 W |
|---|---|
| Luminous flux | 2500–4125 lm |
| Efficacy | 69 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5700K |
| CRI | ≥90 |
| IP rating | IP40 |
| Mounting | Suspended, Ceiling |
| Dimensions | Ø600–Ø1000 mm |
| Distribution | Direct |
| Finishes | White, Black, Custom RAL/NCS/Pantone |
| Rated lifetime | 60,000 h |
| Warranty | 2 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

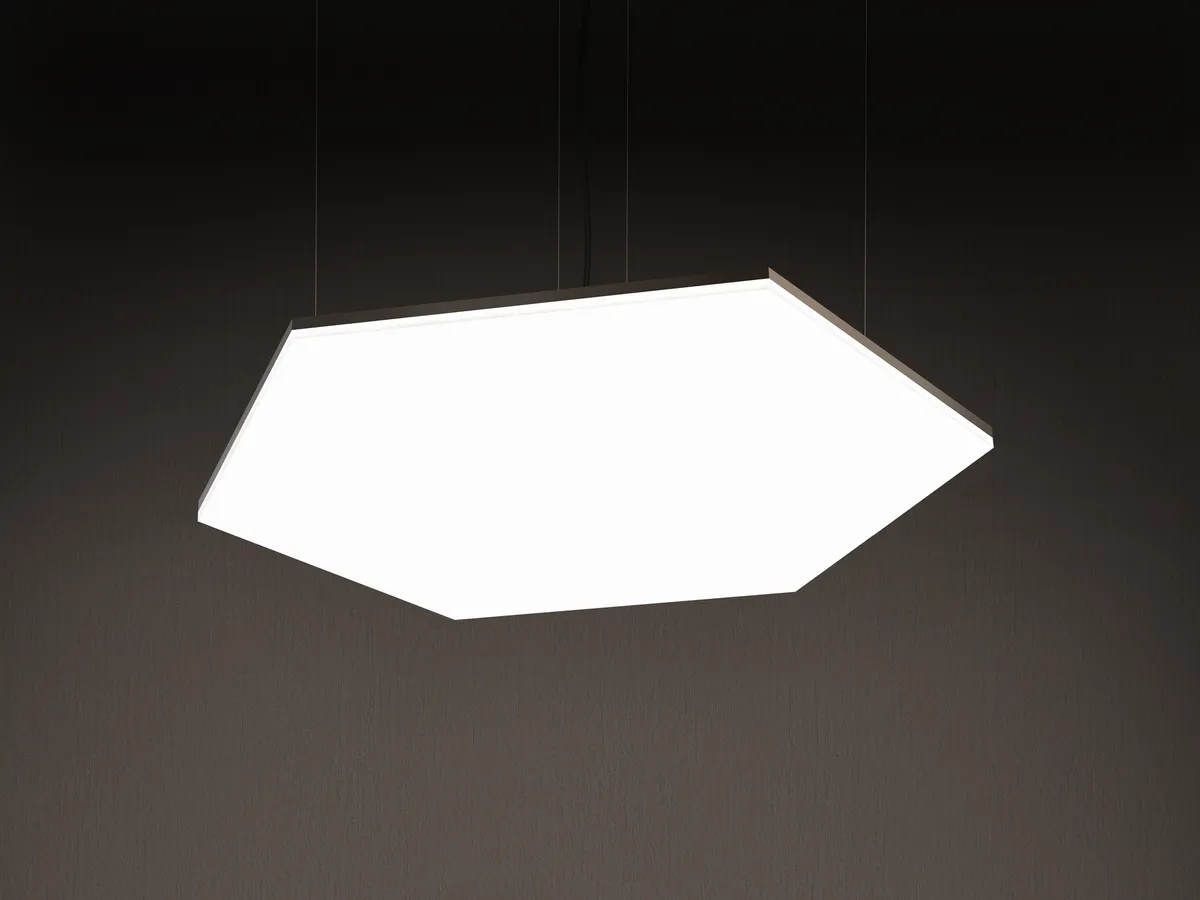

Hexa is a hexagonal LED luminaire built from aluminium and methacrylate, available as a suspended or ceiling fixture in Ø600, Ø800 and Ø1000 mm sizes. Nichia LEDs provide CRI Ra min. 90 (R9 min. 50) at standard color temperatures of 2700K, 3000K, 3500K, 4000K and 5700K, delivering from 2500 lm up to 4125 lm. It is rated IP40, powered by a 24 V DC input, and carries an L90 rated life above 60,000 hours.
Pick from Hexa's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
