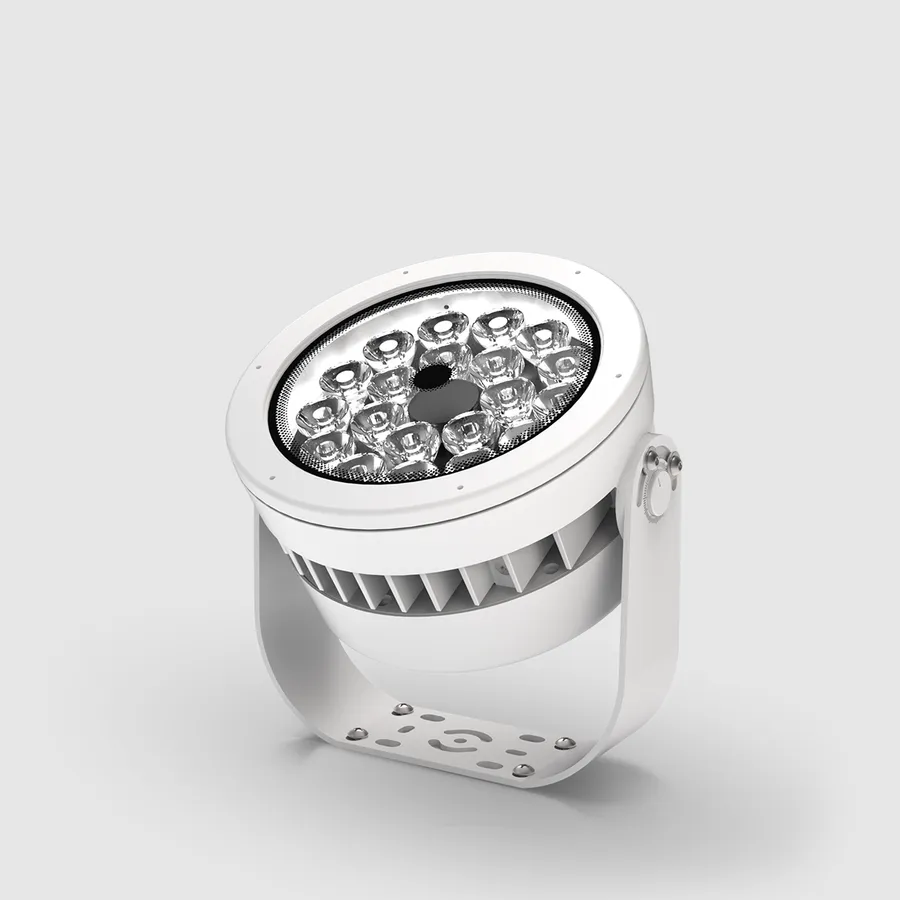

Insight Lighting · Flood Light
9" exterior performance projector delivering 3,452–5,030 lumens (up to 96 LM/W, 278,640 peak candela) from a 42–53 W A380 die-cast body with 4°–100° optics, combination beams, and wall wash — IP67, IK09, B0-U0-G0.
| Wattage | 42–53 W |
|---|---|
| Luminous flux | 3452–5030 lm |
| Efficacy | 95 lm/W |
| Color temperature (CCT) | 2200K / 2700K / 3000K / 3500K / 4000K |
| CRI | ≥82 |
| Beam angle | 4° / 10° / 20° / 30° / 40° / 60° / 100° |
| IP rating | IP67 |
| Mounting | Trunnion, Knuckle, Knuckle pole mount, Pendant, Extended arm, Extended arm up / down |
| Dimensions | Ø10.00" head × 11.50" tall (trunnion), 5.50" deep; 15 lb (6.8 kg) |
| Distribution | Direct (4°–100°), Combination beams (e.g. 10°×60°), Wall wash |
| Finishes | Textured White, Textured Black, Textured Bronze, Textured Light Bronze, Textured Gray, Textured Natural, Textured Sandstone, Custom Color |
| Dimming | 0-10V or DMX/RDM |
| Rated environments | Exterior (IP67), IK09 impact / 3G vibration (option), BUG rating B0-U0-G0, -40 °C to 50 °C, Coastal / extreme (CRF corrosion-resistant option) |
| Rated lifetime | 100,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
ProSpot 9 is the long-throw member of Insight Lighting's exterior performance-projector series, a 9" (Ø10.00") heavy-duty A380 die-cast aluminum accent projector for tall façades and monuments up to roughly eight stories. A Medium Output engine draws 42–53 W and delivers 3,452 lumens on the wall-wash distribution up to 5,030 lumens in the 4° spot (4000K, up to 96 LM/W and 278,640 peak candela) behind a tempered-glass lens, with a broad optical set spanning 4°, 10°, 20°, 30°, 40°, 60°, and 100° plus dedicated combination beams (4°×60°, 10°×60°, 60°×10°, 20°×60°, 60°×20°, 40°×60°, 60°×40°), a wall-wash distribution, and an optical kit. White-light CCTs are 2200K, 2700K, 3000K, 3500K, and 4000K, with factory static colors (red, green, blue, amber, and turtle-friendly amber) also offered. Power is an integrated multi-tap 110–277VAC supply with 0-10V or DMX/RDM control, and mounting spans trunnion, knuckle, knuckle pole mount, pendant, extended arm, and extended arm up/down with tenon and pole adaptors. High-durability powder-coat finishes cover Textured White, Black, Bronze, Light Bronze, Gray, Natural, and Sandstone plus custom color, with black or white cabling and an optional corrosion-resistant finish (CRF, ASTM B117) for coastal and extreme exterior sites. The 15 lb (6.8 kg) fixture is listed ETL/cETL to IP67 and IK09 with an optional 3G-vibration rating, a B0-U0-G0 BUG rating, and Turtle-Friendly amber, carries 100,000-hour lumen maintenance and a 5-year limited warranty, and complies with the Build America Buy America Act (BABA option).
Pick from ProSpot 9's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
