Insight Lighting · Flood Light
3" exterior performance projector delivering 399–1,322 lumens (up to 109.9 LM/W) from a 7–12 W die-cast body with 6°–55° optics, tempered-glass lens, and surface, arm, pole, stake, or J-box mounts — IP66, IK09.
| Wattage | 7–12 W |
|---|---|
| Luminous flux | 399–1322 lm |
| Efficacy | 110 lm/W |
| Color temperature (CCT) | 2200K / 2700K / 3000K / 3500K / 4000K |
| CRI | ≥82 |
| Beam angle | 6° / 13° / 20° / 30° / 40° / 55° |
| IP rating | IP66 |
| Mounting | Surface mount, Extended arm, Pole mount, Stake mount, J-box mount |
| Dimensions | Ø3.63" head × 4.50" tall; 3.0 lb |
| Distribution | Direct (6°–55° + horizontal spread lens) |
| Finishes | Textured White, Textured Black, Textured Bronze, Textured Light Bronze, Textured Gray, Textured Natural, Textured Sandstone, Custom Color |
| Dimming | Non-dimming, 0-10V, or DMX/RDM |
| Rated environments | Exterior (IP66), IK09 impact / 3G vibration (option), -30 °C to 50 °C, Coastal / extreme (CRF corrosion-resistant option) |
| Rated lifetime | 75,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

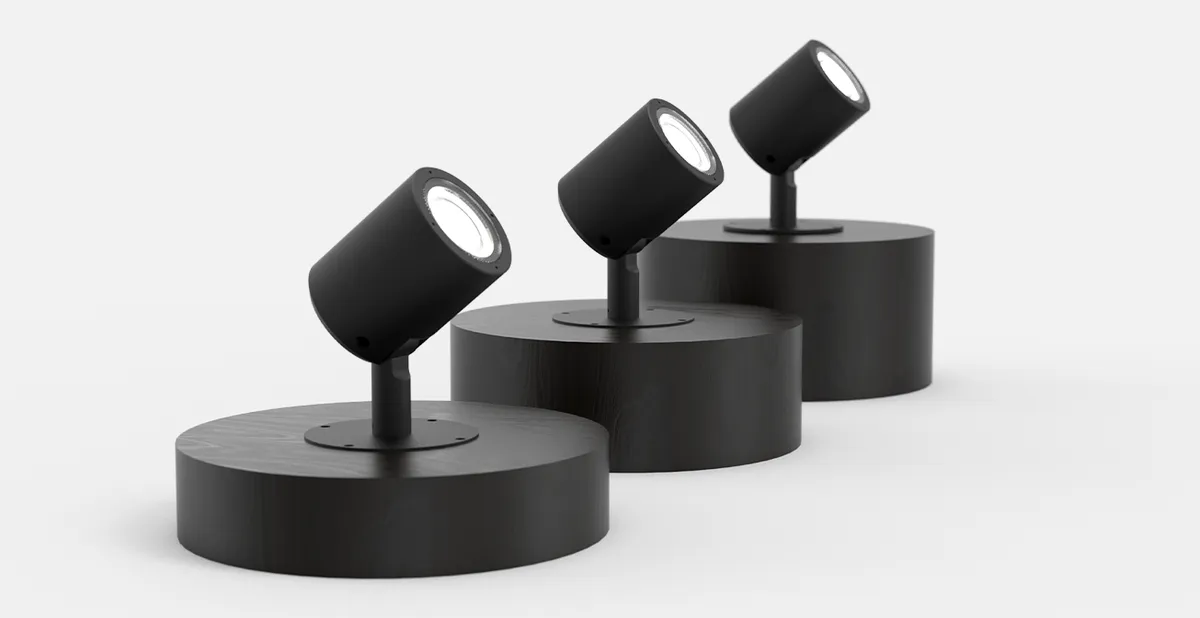

ProSpot 3 is the compact member of Insight Lighting's exterior performance-projector series, a 3" (Ø3.63") die-cast aluminum accent projector for façade, sign, and landscape aiming up to roughly two stories. A single Standard Output engine draws 7–12 W and delivers 399 lumens in the 6° spot up to 1,322 lumens in the 40° flood (4000K, up to 109.9 LM/W and 22,211 peak candela) behind a tempered-glass lens, with field-swappable 6°, 13°, 20°, 30°, 40°, and 55° optics plus a horizontal spread lens and optical kit. White-light CCTs are 2200K, 2700K, 3000K, 3500K, and 4000K, with factory static colors (red, green, blue, amber, and turtle-friendly amber) and a separate tunable-white variant also offered. Power is an integrated 120V or 277V supply with non-dimming, 0-10V, or DMX/RDM control, and mounting spans surface, extended-arm, pole, stake, and J-box. High-durability powder-coat finishes cover Textured White, Black, Bronze, Light Bronze, Gray, Natural, and Sandstone plus custom color, with an optional corrosion-resistant finish (CRF, ASTM B117) for coastal and extreme exterior sites. The 3.0 lb fixture is listed ETL/cETL to IP66 and IK09 with an optional 3G-vibration rating and Turtle-Friendly amber, carries 75,000-hour lumen maintenance and a 5-year limited warranty, and complies with the Build America Buy America Act (BABA option).
Pick from ProSpot 3's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
