Insight Lighting · Flood Light
Wet-location extruded-aluminum wall, ceiling, and pendant luminaire delivering 486–1,996 delivered lumens per engine (up to 95 LM/W, up to 8,287 peak candela) from a 7–21 W integrated supply with field-set 15°–100° and asymmetric optics — offered as an 11" single-engine or 16" direct-and-indirect fixture, ETL/cETL wet location.
| Wattage | 7–21 W |
|---|---|
| Luminous flux | 486–1996 lm |
| Efficacy | 95 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥82 |
| Beam angle | 15° / 20° / 30° / 55° / 100° |
| Mounting | Ceiling downlight, Wall downlight, Wall uplight, Wall mount direct & indirect, Pendant downlight (interior only) |
| Dimensions | 11" or 16" × 7.375" × 5.25"; 7.0 lb (11") / 14.0 lb (16") |
| Distribution | Direct or indirect (11" fixture), Direct and indirect (16" fixture) |
| Finishes | Textured White, Textured Black, Textured Bronze, Textured Light Bronze, Textured Gray, Textured Sandstone, Custom Color |
| Dimming | 0-10V (white light); DMX/RDM RGBW (color-changing variant) |
| Rated environments | Wet location (ETL / cETL), -30 °C to 45 °C, Coastal / extreme (CRF corrosion-resistant option) |
| Rated lifetime | 84,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Cynder is Insight Lighting's compact wet-location accent luminaire, an extruded-aluminum body offered as an 11" single-engine fixture (direct or indirect) or a 16" fixture with independent direct and indirect engines for combined up/down wall grazing. Each engine draws 7, 10, 14, or 21 W from an integrated 120–277 V supply and delivers 486 to 1,996 delivered lumens depending on optic and wattage (up to 95 LM/W and 8,287 peak candela at 4000K); the 16" direct-and-indirect fixture pairs two engines for up to roughly 3,992 lumens across both directions. White-light CCTs are 2700K, 3000K, 3500K, and 4000K at 82+ CRI, with an optional 90+ high-CRI (HCRI) build and a separate RGBW color-changing (DMX/RDM) variant. Field-changeable optics span 15°, 20°, 30°, 55°, 100°, and asymmetric distributions behind a tempered-glass lens. Mounting covers ceiling downlight, wall downlight, wall uplight, wall-mount direct-and-indirect, and interior-only pendant downlight. High-durability powder-coat finishes include Textured White, Black, Bronze, Light Bronze, Gray, and Sandstone plus custom color, with an optional corrosion-resistant finish (CRF, ASTM B117) for coastal and extreme exterior sites. The 7.0 lb (11") / 14.0 lb (16") fixture is listed ETL and cETL for wet location, operates from -30 °C to 45 °C, carries 84,000-hour lumen maintenance and a 5-year limited warranty.
Pick from Cynder's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
Insight Lighting · Flood Light
Exterior IP67 linear direct-view color-changing media fixture — 12" and 48" bars at 5.0 W/ft, 106–193 delivered lumens per foot, 130° distribution, DMX/RDM control with Nitro Color RGB+white mixing, driven at 120/277VAC or long-run 380VDC (Marathon).
Insight Lighting · Flood Light
Exterior IP67 performance linear grazer/wall-washer in 12"–60" lengths and continuous runs — up to 8,420 delivered lumens at 87.3 LM/W, 82 CRI (90+ option), from a tempered-glass-lensed extruded-aluminum profile.

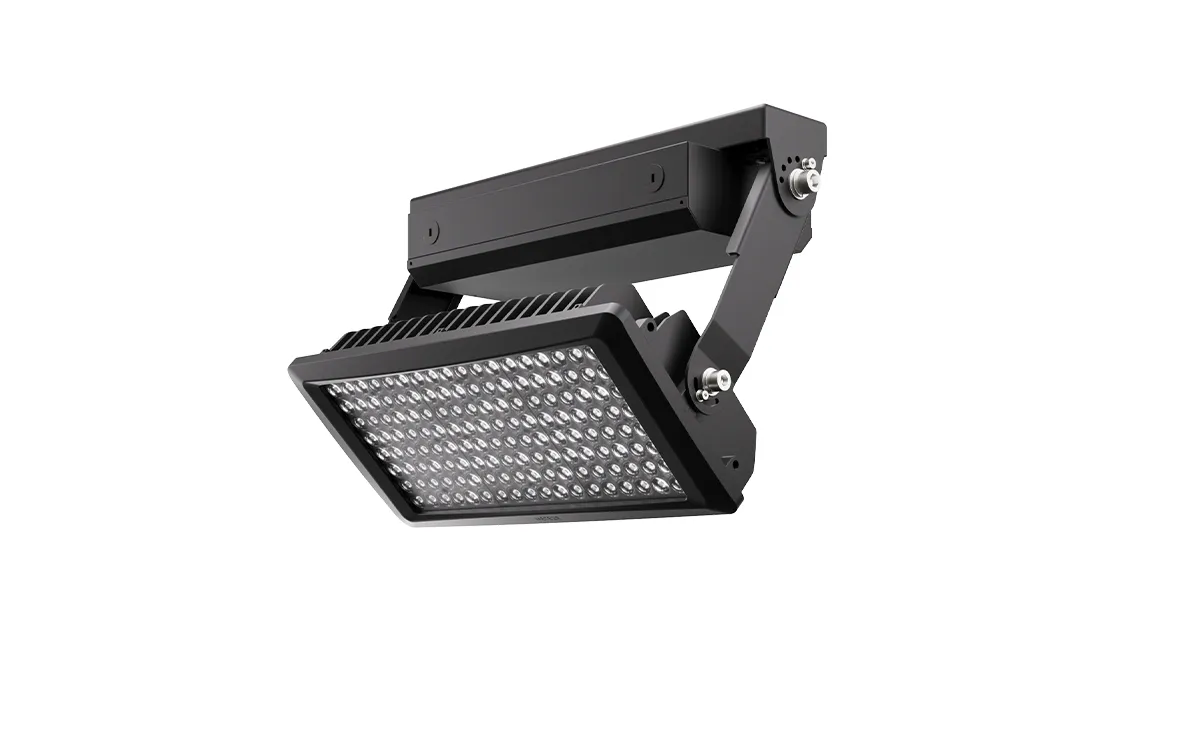

Meteor Lighting · Flood Light
