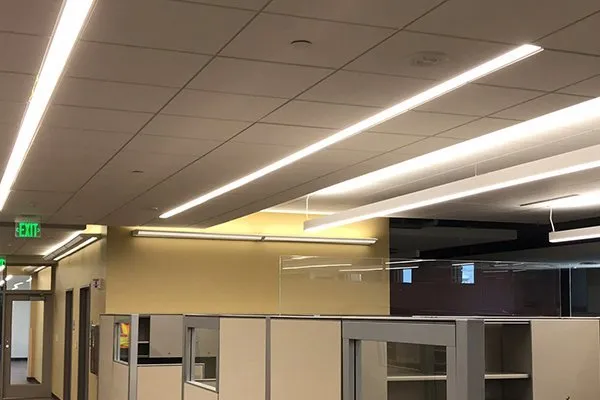

4 in wide recessed linear with a regressed lay-in frosted-white acrylic lens, 350-1,000 lm/ft at 4.28-12.63 W/ft, 2700-4000K plus tunable white, for slot-grid, T-bar, and sheetrock ceilings in 4-12 ft lengths.
| Wattage | 4.28–12.63 W/ft |
|---|---|
| Luminous flux | 350–1000 lm/ft |
| Efficacy | 79 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Recessed (9/16 or 15/16 flat-tee grid), Recessed (9/16 slot grid / Interlude tee), Recessed (sheetrock, trim or trimless) |
| Dimensions | Nominal 4" wide recessed profile, regressed lay-in lens; 4/6/8/12 ft nominal lengths + custom (1" increments) |
| Distribution | Direct |
| Finishes | White (standard powder coat), Custom colors (consult factory) |
| Dimming | 0-10V dimming 1% standard (120V or 277V); non-dim, Lutron EcoSystem 1%, Lutron Athena wireless node; DALI/DMX/PoE via factory; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Max 4 Regressed Lens is the four-inch regressed-lens member of Picasso Lighting's budget-minded Max recessed series, designed to maximize brightness in general office spaces with a clean, stark appearance. The regressed lay-in acrylic lens (frosted white) is formulated for LED sources with lift-and-shift removal, sitting above the ceiling plane over an integral powder-coated LED housing with high reflectivity for increased lumen output. Extruded-aluminum housings come in 4, 6, 8, and 12 ft nominal lengths plus custom lengths (1 in increments). Published direct output runs 350 lm/ft at 4.28 W/ft (81 lm/W) through 1,000 lm/ft at 12.63 W/ft (80 lm/W at 3000K). CCTs are 2700K, 3000K, 3500K, and 4000K plus tunable white (2700-5000K), in 80-85 or 90-95 CRI with 3 SDCM binning and 50,000-hour rated LED life. Recessed mounting covers slot-grid, T-bar, and sheetrock ceilings — 9/16 and 15/16 flat-tee grid, 9/16 slot-grid/Interlude tee, and trim or trimless options are published. Drivers are universal 110-277 VAC with 0-10V 1% dimming; non-dim, Lutron EcoSystem 1%, and Lutron Athena wireless-node options are published, with DALI/DMX/PoE via factory, plus occupancy-sensor, emergency battery-backup, 6 ft whip, and BABAA-compliant options. The Max series qualifies as Made in America, is IBEW manufactured and assembled in the USA in Moonachie, NJ, UL listed for dry and damp locations, and carries a limited five-year warranty.
Pick from Max 4 Regressed Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
