2.5 in wide recessed linear with a 1/2 in dropped frosted-white lens, 350-1,000 lm/ft at 4.1-11.8 W/ft (85 lm/W), 2700-4000K, for T-grid, slot-grid, and sheetrock ceilings in 4-12 ft lengths.
| Wattage | 4.1–11.8 W/ft |
|---|---|
| Luminous flux | 350–1000 lm/ft |
| Efficacy | 85 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Recessed (9/16 or 15/16 flat-tee grid), Recessed (9/16 slot grid / Interlude tee), Recessed (sheetrock, trim or trimless) |
| Dimensions | Nominal 2-1/2" wide recessed profile, 1/2" dropped lens; 4/6/8/12 ft nominal lengths + custom (1" increments); continuous rows available |
| Distribution | Direct |
| Finishes | White (standard powder coat), Custom colors (consult factory) |
| Dimming | 0-10V dimming 1% standard (120V or 277V); non-dim, Lutron EcoSystem 1%, Lutron Athena wireless node; DALI/DMX/PoE via factory; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

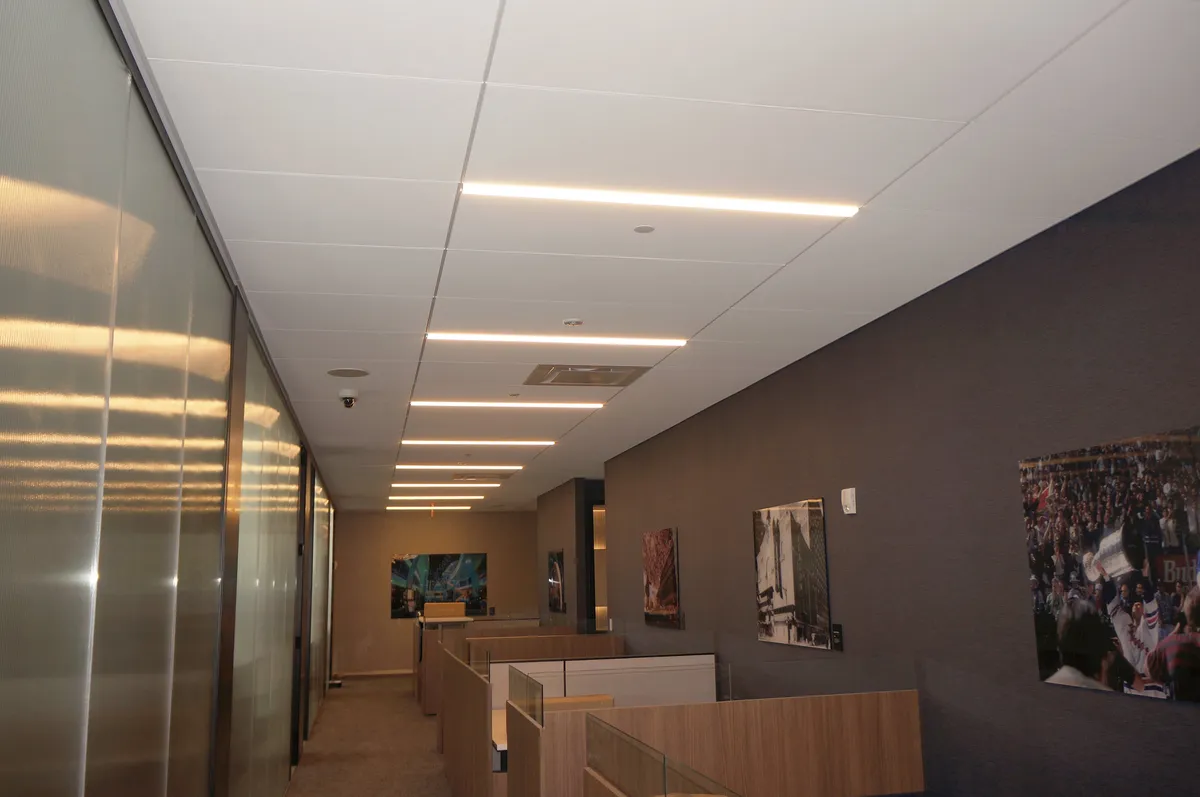

Max 2.5 Dropped Lens is the two-and-a-half-inch dropped-lens member of Picasso Lighting's budget-minded Max recessed series, built to maximize brightness in general office spaces with a clean, stark appearance. The extruded frosted-acrylic snap-in lens drops 1/2 inch below the ceiling plane, and extruded-aluminum housings come in 4, 6, 8, and 12 ft nominal lengths plus custom sizes (1 in increments) with continuous rowing available; internal components are minimum 20-gauge die-formed steel with easy driver/LED-board access and unrestricted ceiling thickness. Published direct output runs 350 lm/ft at 4.1 W/ft through 1,000 lm/ft at 11.8 W/ft (85 lm/W at 3000K). CCTs are 2700K, 3000K, 3500K, and 4000K plus tunable white (0-10V control), in 80-85 or 90-95 CRI with 3 SDCM binning and 50,000-hour rated LED life. Mounting options cover 9/16 and 15/16 flat-tee grid (tegular or flat tile), 9/16 slot-grid and Interlude tee, and trim or trimless sheetrock installs. Drivers are universal 110-277 VAC with 0-10V 1% dimming; non-dim, Lutron EcoSystem 1%, and Lutron Athena wireless-node options are published, with DALI/DMX/PoE via factory, plus occupancy-sensor, emergency battery-backup, 6 ft whip, vertical-lens, and BABAA-compliant options. The Max 2.5 profile is part of Picasso's EZ install/ship program, qualifies as Made in America, is IBEW manufactured and assembled in the USA in Moonachie, NJ, UL listed for dry and damp locations, and carries a limited five-year warranty.
Pick from Max 2.5 Dropped Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
