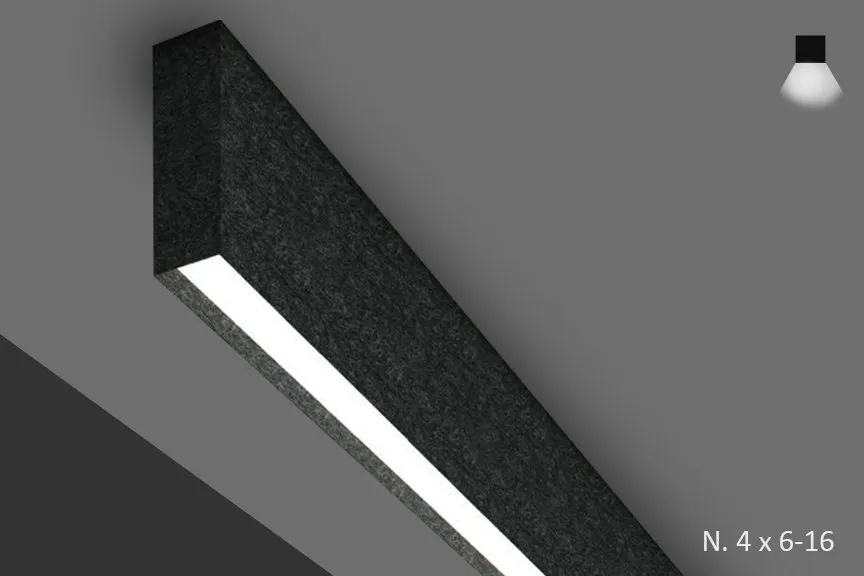

Surface-mounted direct acoustic linear with remote drivers — 350 to 1,000 lm/ft at up to 122 lm/W, 2700-4000K, 80+/90+ CRI, in 4 ft and 8 ft lengths with 6" to 16" tall sound-absorbing panels.
| Wattage | 2.88–8.48 W/ft |
|---|---|
| Luminous flux | 350–1000 lm/ft |
| Efficacy | 118 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Surface, Pendant, Wall |
| Dimensions | 1/2" thick acoustic side panels, 6" to 16" tall; 4 ft and 8 ft lengths in 6"/8"/12"/16" panel heights; custom sizes and continuous rows available |
| Distribution | Direct |
| Finishes | 24 acoustic panel colors (Frost, Chambray, Smoke, Pewter, Slate, Tar, Ecru, Bark, Linen, Sunshine, Mandarine, Grass, Ocre, Sky, Ivory, Cadet, Eucalyptus, Fossil, Greige, Ironbark, Malachite, Merbau, Spotted Gum, and more) |
| Dimming | Remote 0-10V 1% dimming standard (120/277 V); remote non-dim, Lutron EcoSystem 1%, and custom controls; DALI, DMX, PoE on request; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Echo is the surface-mounted, direct-only member of Picasso Lighting's acoustic series, designed to read as a standard linear fixture while its 1/2"-thick acoustic sound-reduction side panels (6" to 16" tall) absorb room noise. The frosted-white acrylic direct lens snaps out for maintenance, and output is offered in 350, 500, 750, and 1,000 lm/ft packages drawing 2.88 to 8.48 W/ft at 118-122 lm/W. Standard sizes are 4 ft and 8 ft lengths in 6", 8", 12", and 16" panel heights, with custom sizes and continuous rows available. Standard CCTs span 2700K to 4000K (tunable white and warm dim available) at 80+ or 90+ CRI with 3 SDCM binning, and LED life is rated at 50,000 hours. Remote drivers are universal 110-277 VAC with 0-10V 1% dimming standard; remote non-dim, Lutron EcoSystem 1%, and custom controls are available, and the Echo family is also offered in pendant and wall versions. Acoustic panels come in 24 colors including woodgrain patterns. Fixtures are IBEW manufactured and assembled in the USA, UL listed for dry and damp locations, and carry a limited five-year warranty.
Pick from Echo's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
