Three-arm (Y) suspended LED linear profile delivering 2,500–10,000 delivered lumens at 75–300 W (up to 122.9 lm/W) in 4 ft or 8 ft arms, with tool-less EZ Swap reflectors, frosted or 60° prismatic optics, and an optional 600 lm/ft uplight — CSA listed, made in Canada.
| Wattage | 75–300 W |
|---|---|
| Luminous flux | 2500–10000 lm |
| Efficacy | 33 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | ≥90 |
| Beam angle | 60° |
| Mounting | Suspended (10/15/20 ft), Track mount, Surface mount |
| Dimensions | Three-arm Y profile; width 1.97" (50 mm), height 2.86" (72.6 mm); arms 4 ft (1220 mm) or 8 ft (2440 mm); weight 6.06 lb (4 ft) / 12.12 lb (8 ft) |
| Distribution | Direct, Direct/Indirect (uplight option, 600 lm/ft) |
| Finishes | Natural anodized, Black anodized, Custom color / anodized |
| Dimming | 0–10V (5% / 0.1%), DALI, Casambi; 120V input |
| Rated environments | Dry |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

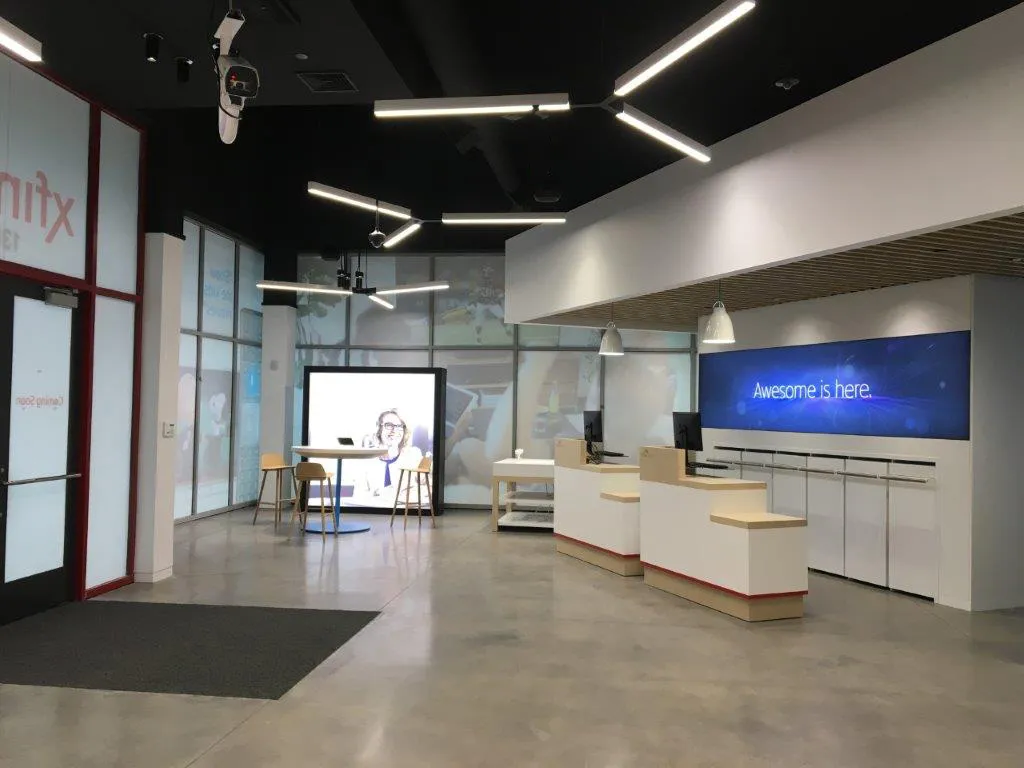

Tri Light is ON LIGHT's three-arm (Y-shaped) suspended LED linear profile, a 1.97" (50 mm) wide extruded-aluminum luminaire whose three arms radiate from a center piece for open-plan and architectural runs. Each fixture is built from 4 ft (1220 mm) or 8 ft (2440 mm) arms in single- or twin-LED-row configurations, with delivered output — nominal at 3500K and 84 CRI — of 2,500 lm (3× 4 ft, 1 row, 75 W), 5,000 lm (3× 4 ft, 2 row, 150 W or 3× 8 ft, 1 row, 150 W), and 10,000 lm (3× 8 ft, 2 row, 300 W), at up to 122.9 lm/W (custom lengths available). Standard white CCTs are 2700K, 3000K, 3500K, 4000K, and 5000K plus a tunable-white option, with 84 nominal CRI, a 90 CRI minimum option, and A-Class (3000K/3500K/4000K) rendering for accurate food color. Optics are a frosted cover (30% light reduction) or a 60° prismatic lens, with the brand's tool-less EZ Swap interchangeable reflector assembly; an optional uplight center piece adds 600 lm/ft of indirect output. Drivers run 0–10V dimming to 5% or 0.1%, DALI, and Casambi at 120V, with Class 2 output. Housing finishes are natural anodized, black anodized, or custom color/anodized, with suspended (10/15/20 ft), track, or surface mounting. Arms measure 2.86" (72.6 mm) high (3.76"/95.6 mm in the wave configuration) and weigh 6.06 lb (4 ft) or 12.12 lb (8 ft). Photometry is per IESNA LM-79 by an independent NVLAP-accredited lab with LM-80 lumen maintenance and 3-step MacAdam color consistency, rated 50,000 hours (TM-21), for dry locations only, CSA certified to US and Canadian safety standards, RoHS, and backed by a 5-year warranty; luminaires are made in Montréal, Canada.
Pick from Tri Light's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
