2" extruded-aluminum LED linear fixture delivering 350–3500 delivered lm/ft with an optional up-light component, 2700K–5000K (plus tunable white), 80/90/97 CRI and a UGR<19 dark-light optic; CSA & ETL listed, made in Canada.
| Luminous flux | 350–3500 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | ≥90 |
| Mounting | Track (Stucchi 3-circuit / 2-circuit), Surface mount, Suspended, Aircraft cable, 10 ft / 15 ft |
| Dimensions | 2" wide × 2-7/8" high extrusion; 4 ft and 8 ft sections, continuous runs to 20 ft (6 m) |
| Distribution | Direct, Direct/Indirect |
| Finishes | RAL 9016 White, RAL 9005 Black, Natural anodized, Black anodized, Custom color |
| Dimming | 0–10V, DALI, on/off; 120/277/347V input (Class 2, max 27.5 W/ft) |
| Rated environments | Dry |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

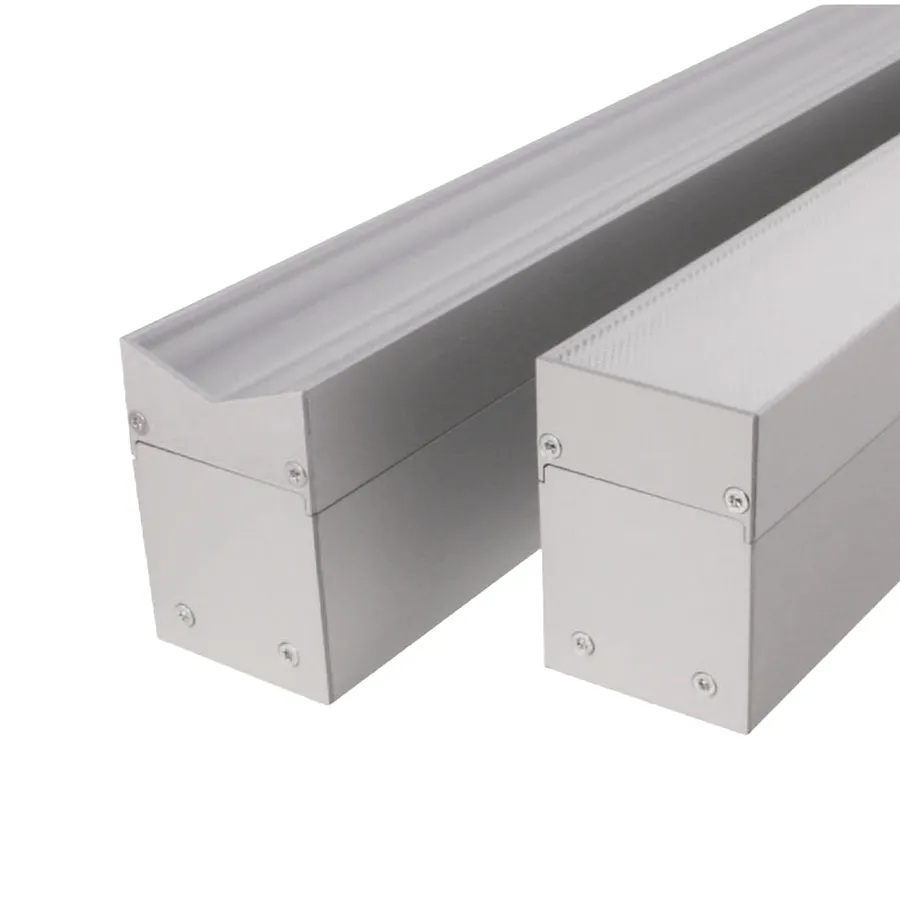

Line Up is ON LIGHT's 2-inch extruded-aluminum LED linear lighting fixture for continuous architectural runs. The downlight component is offered from 350 lm/ft up to 3500 lm/ft (350, 600, 800, 1000, 1200, 1500, 2000, 2500, 3000 and 3500 lm/ft steps), with an optional up-light component from 350 to 1200 lm/ft for direct/indirect layouts. White CCTs are 2700K, 3000K, 3500K, 4000K and 5000K at 80, 90 or 97 CRI, with a TW90 tunable-white 2700K–5000K option and food-color renderings for bread, meat and fish. Optics include an asymmetric beam for aisle lighting, a frosted polycarbonate lens and a 60-degree prismatic lens, built around a Dark Light concept rated UGR<19. Housings ship in RAL 9016 white, RAL 9005 black, natural anodized, black anodized or custom color. Drivers offer 0–10V, DALI or on/off dimming on 120V, 277V or 347V input (Class 2, max 27.5 W/ft). Mounting options span Stucchi 3-circuit and 2-circuit track, surface mount, suspension and 10 ft or 15 ft aircraft-cable mount (the cable is combined inside the power cord). The 2" wide × 2-7/8" high extrusion is available in 4 ft and 8 ft sections with continuous runs up to 20 ft (6 m). Nominal efficacy reaches 130–190 lm/W, reported life is 50,000 hours per IESNA TM-21-11, and color consistency is held to a 3-step MacAdam ellipse. Photometry was conducted by an independent NVLAP-accredited laboratory per IESNA LM-79-08 with LM-80 lumen maintenance. CSA & ETL certified to US and Canadian safety standards, RoHS, and backed by a 5-year warranty on the LED light engine, driver and all components; made in Beloeil, Canada.
Pick from Line Up's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
