OCL Architectural Lighting · Linear
OCL's minimal 1.313 in-diameter linear pendant and arm sconce in 27/39/51/63/75 in lengths, rotatable 350° and connectible into continuous runs, delivering 1,080–5,040 delivered lumens at up to 90 lm/W (80+ or 90+ CRI).
| Wattage | 12–60 W |
|---|---|
| Luminous flux | 1080–5040 lm |
| Efficacy | 84 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (P1EW; aircraft cable and power cord, remote driver), Wall / arm sconce (S1SC) |
| Dimensions | Ø1.313 in profile; 27, 39, 51, 63 and 75 in nominal lengths (26.75–74.75 in actual); connectible for continuous runs |
| Distribution | Direct (rotatable 350°) |
| Finishes | Matte White, Black, Brass Metallic, Bronze, Black Textured, Graphite, Goldtastic, Steel Gray, Silver Metallic, Sky White, White Textured, Brushed Aluminum, Everwoods wood-look collection (White Pine / Pine / Cherry / Teak / Walnut / Dark Walnut / Light Barnwood / Dark Barnwood), RAL / Pantone / custom |
| Dimming | 0-10V dimming to 1% standard (DM1); Lutron Hi-Lume EcoSystem 1% (DM3, LDE1); universal 120–277V input; field-replaceable driver |
| Rated environments | Dry, Damp (optional ULD label) |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

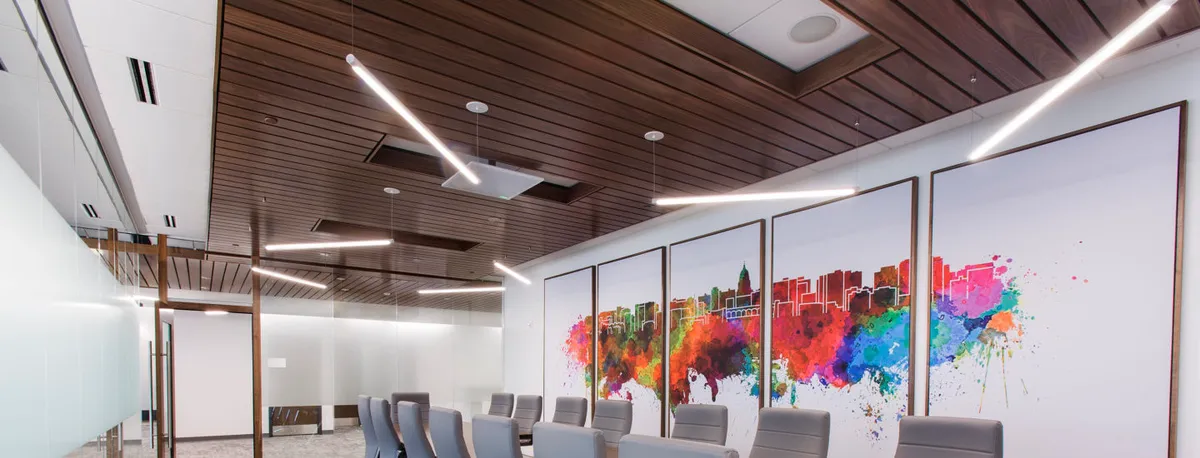

Dash is OCL Architectural Lighting's minimal linear luminaire — an extruded-and-machined aluminum tube just 1.313 in in diameter with a high-performance frosted opal acrylic diffuser, rotatable 350° and joinable with straight or adjustable connectors to build long continuous runs. It is offered as a pendant (P1EW, with an aircraft cable on one end and a power cord on the other, remote driver) or an arm sconce (S1SC) in 27, 39, 51, 63 and 75 in nominal lengths (26.75 in to 74.75 in actual; longer runs ship in connectible segments). At 3500K, 80+ CRI, delivered output runs 1080/1620/2160/2700/3240 lm on LED1 (12–36 W) and 1680/2520/3360/4200/5040 lm on LED2 (20–60 W) across the five sizes, at up to 90 lm/W (a 0.85 multiplier applies for the 90+ CRI engine). Color temperatures are 2700K, 3000K, 3500K and 4000K in 80+ CRI (R9>0) or 90+ CRI (R9>50), with 3-step LED binning. Fixtures use OCL proprietary LED arrays with Nichia 757 diodes on universal 120–277V input, with 0-10V dimming to 1% standard (DM1) or Lutron Hi-Lume EcoSystem 1% (DM3, LDE1) and field-replaceable drivers. Standard finishes include Matte White, Black, Brass Metallic, Bronze, Black Textured, Graphite, Goldtastic, Steel Gray, Silver Metallic, Sky White and White Textured powder coats plus Brushed Aluminum, along with an Everwoods powder-coat wood-look collection (White Pine, Pine, Cherry, Teak, Walnut, Dark Walnut, Light Barnwood and Dark Barnwood) on the body; RAL, Pantone and custom finishes are also available. ETL listed to UL 1598 for indoor dry locations (optional damp label), RoHS compliant, and backed by a five-year limited warranty.
Pick from Dash's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
