Ultra-slim architectural linear family in 1.5", 2", 3", and 5" apertures — direct distribution from 250 to 1200 lm/ft with shallow Lambertian or micro-prismatic optics, 80/90+ CRI, in recessed, surface, and perimeter mountings and continuous runs.
| Luminous flux | 250–1200 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | ≥90 |
| Mounting | Recessed (T-bar / tegular grid), Recessed (trim / trimless), Recessed (drywall mud flange), Recessed (wood-slat / multiple-flange), Surface, Perimeter |
| Dimensions | Ultra-slim extruded-aluminum profile in 1.5", 2", 3", and 5" apertures (1.5" surface as slim as 1/2" high x 1 11/16" wide); 2–8 ft single sections & continuous runs over 8 ft in 1 ft / 1 in increments |
| Distribution | Direct |
| Finishes | Matte white, Matte black, Aluminum, Custom (RAL) |
| Dimming | 0–10V 100–1% standard; Lutron Hi-Lume 1% Eco, eldoLED 1% ECOdrive & 0.1% SOLOdrive, ELV, TRIAC, DALI; integral or remote drivers; PoE compatible; universal 120–277V input, 347V optional |
| Rated environments | Dry, Damp location |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

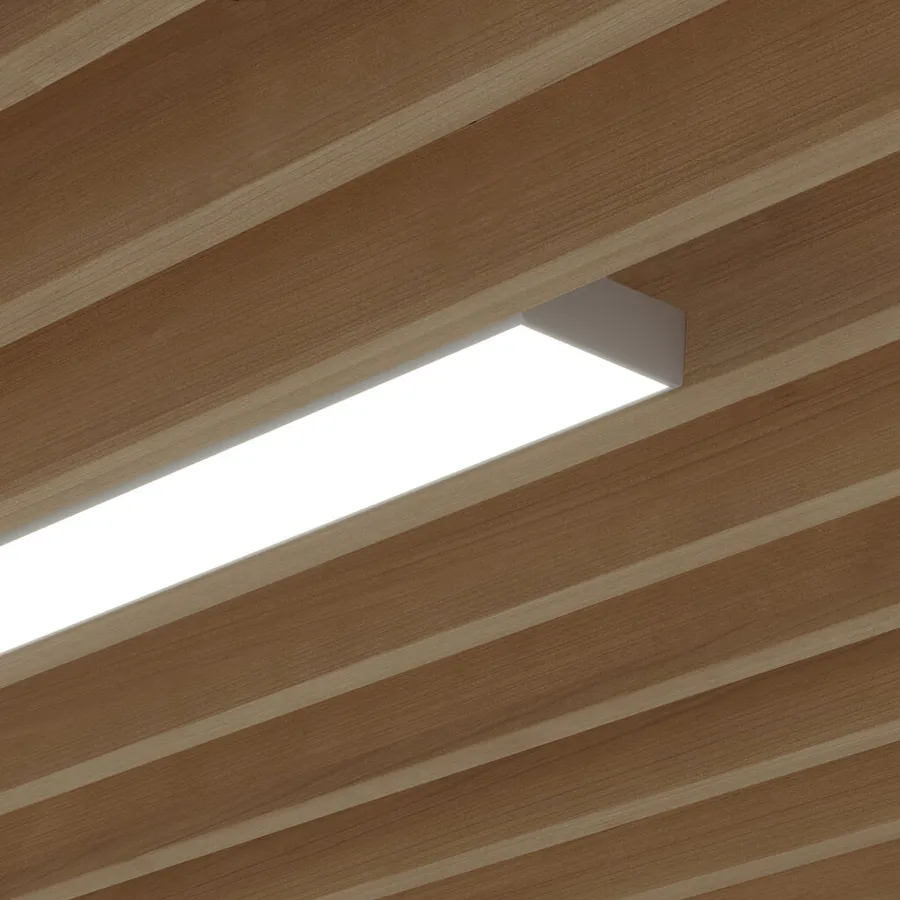

Shalo Ultra is Lumenwerx's ultra-slim member of the Shalo platform, a low-profile architectural linear family offered in 1.5-inch, 2-inch, 3-inch, and 5-inch apertures. Each aperture is documented on its own spec sheet and shares a common direct distribution, delivering 250, 350, 500, 750, 1000, and 1200 lm/ft packages (the lower apertures top out earlier: 1.5" and 2" at 750 lm/ft, 3" at 1000 lm/ft, 5" at 1200 lm/ft) with published efficacy up to 142 lm/W on the 5-inch aperture. Two low-profile optics tailor the look: the Shallow Lambertian Optic (SLO), a diffusing acrylic with matte-white reflectors for wide, even distribution, and the Shallow Micro-Prismatic Optic (SMPO), a micro-prismatic lens that balances refraction and reflection to reduce glare. The extruded-aluminum profile (up to 90% recycled content) is configurable from 2 ft single sections to seamless continuous runs over 8 ft in 1 ft and 1 in increments, joined on-site with the supplied joiner kits for a virtually seamless, leak-free result. Mountings span recessed (exposed or concealed T-bar / tegular grid, trim, trimless, drywall mud flange, wood-slat, and multiple-flange details), surface (twist-clip grid, universal ceiling clip, wood-slat bracket, or magnet on the 1.5-inch), and a dedicated perimeter configuration for 3-inch and 5-inch apertures. Static-white LEDs are available in 2700/3000/3500/4000/5000K at a minimum 80+ CRI, with an optional 90+ CRI with elevated R9, held to within 3 SDCM; LM-80 testing shows L80 lumen maintenance beyond 60,000 hours. Integral or remote drivers accept universal 120–277V (347V optional) input and dim 100% to 1% via 0–10V, with Lutron Hi-Lume 1% Eco, eldoLED 1% ECOdrive and 0.1% SOLOdrive, ELV, TRIAC, and DALI options, plus PoE compatibility and optional emergency-battery, night-light, daylight, and generator-transfer electrical sections. ETL listed to UL 1598 and CSA C22.2 No. 250.0 for indoor dry/damp locations, IC rated for direct contact with insulation, Chicago Plenum (CCEA) approved with the CP option, and backed by a five-year limited warranty.
Pick from Shalo Ultra's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
