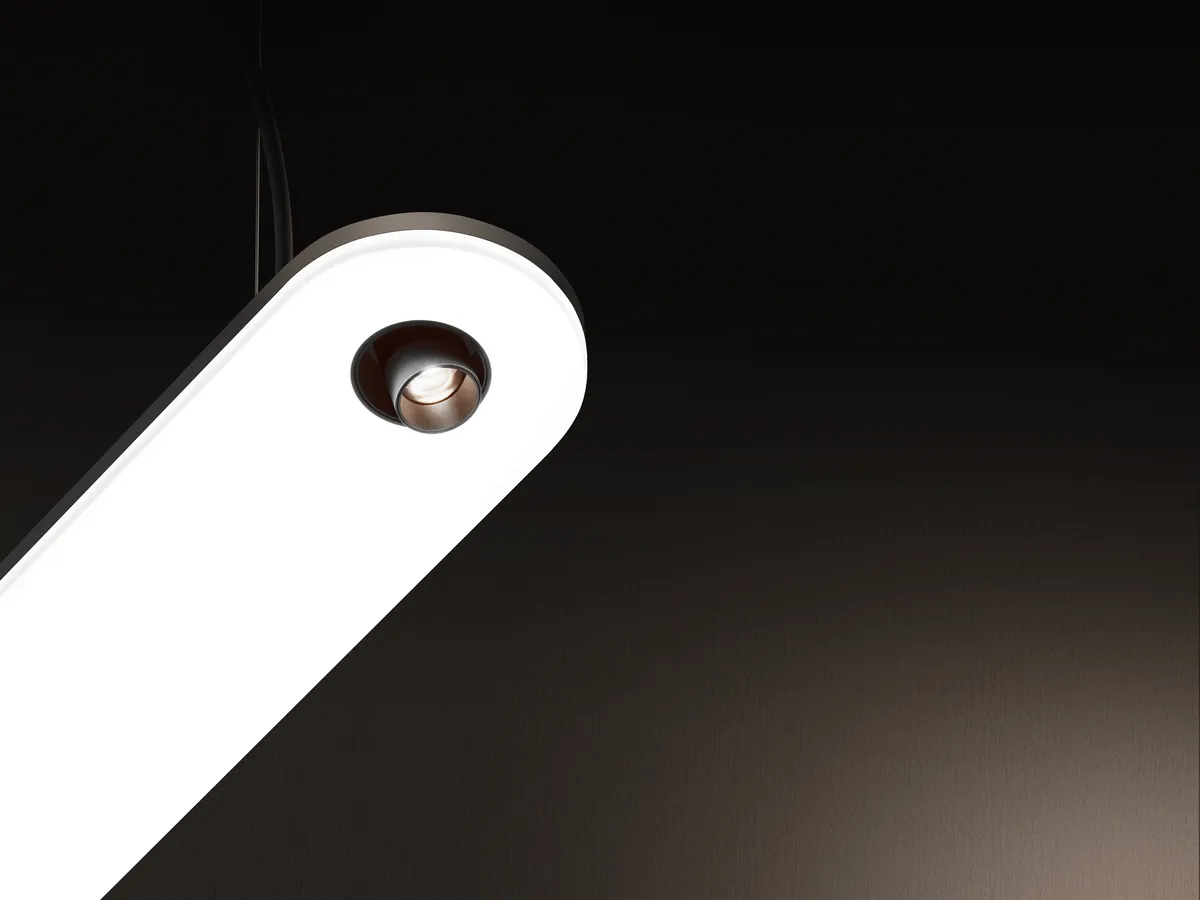

Edge-lit linear suspension luminaire with integrated Micro 40.t Spot.Mate optics, delivering 2,200–3,750 lm from Nichia LEDs at CRI > 90.
| Wattage | 48–104 W |
|---|---|
| Luminous flux | 2200–3750 lm |
| Efficacy | 36 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5700K |
| CRI | ≥90 |
| IP rating | IP40 |
| Mounting | Suspended |
| Dimensions | 150 × 1100–2500 mm |
| Distribution | Direct |
| Finishes | White, Black, Custom RAL/NCS/Pantone |
| Rated lifetime | 60,000 h |
| Warranty | 2 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Phase is a Folio architectural linear suspension luminaire built from aluminum and methacrylate, combining a Nichia LED source with an integrated Spot.Mate (Micro 40.t) accent accessory. It is offered in three 150 mm-wide sizes (1,100–2,500 mm long) delivering 2,200 lm to 3,750 lm, with static CCTs of 2700/3000/3500/4000/5700 K and CRI Ra ≥ 90 (R9 ≥ 50). Available with remote or integrated power supply on a 24 V DC input, dimmable, rated IP40 with an L90 > 60,000-hour rated lifespan.
Pick from Phase's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
