Edge-lit linear architectural luminaire in suspended, ceiling and wall versions, delivering 1,500–4,400 lm from Nichia LEDs at CRI > 90.
| Wattage | 53–132 W |
|---|---|
| Luminous flux | 1500–4400 lm |
| Efficacy | 33 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5700K |
| CRI | ≥90 |
| IP rating | IP40 |
| Mounting | Suspended, Ceiling, Wall |
| Dimensions | 100–200 × 1200–3000 mm |
| Distribution | Direct |
| Finishes | White, Black, Custom RAL/NCS/Pantone |
| Rated lifetime | 60,000 h |
| Warranty | 2 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

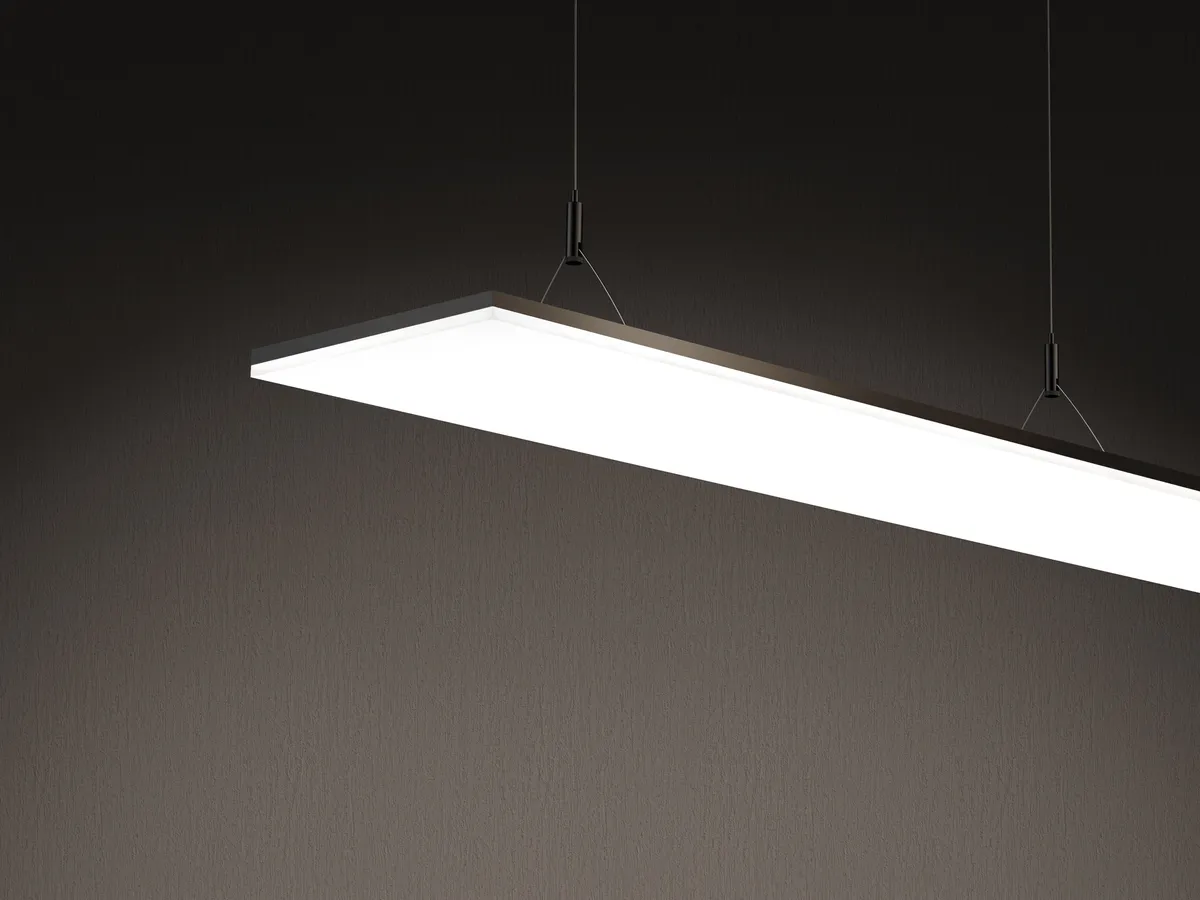

Line is a Folio architectural linear luminaire built from aluminum and methacrylate with a Nichia LED source. It is offered in suspended, ceiling and wall mountings across five sizes (100–200 mm wide, 1,200–3,000 mm long) delivering 1,500 lm to 4,400 lm, with static CCTs of 2700/3000/3500/4000/5700 K and CRI Ra ≥ 90 (R9 ≥ 50). Available with remote or integrated power supply on a 24 V DC input, dimmable, rated IP40 with an L90 > 60,000-hour rated lifespan.
Pick from Line's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
