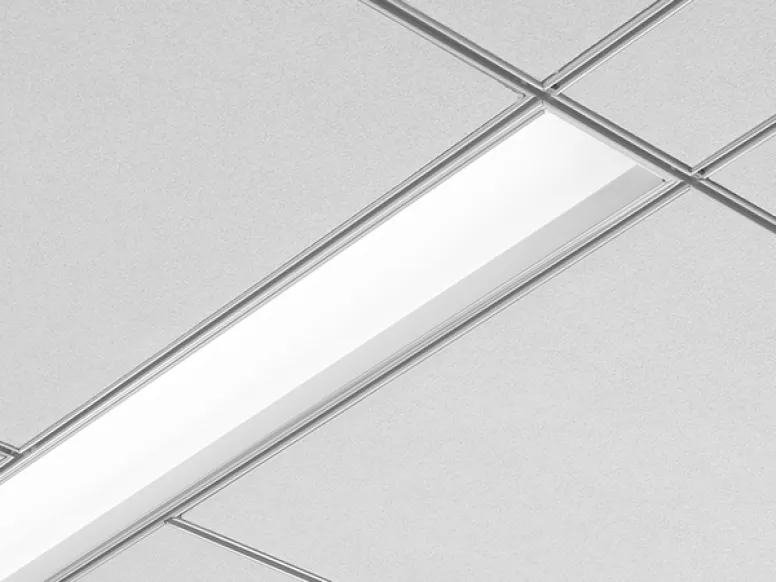

6"-wide recessed architectural linear LED for specialty 6" ceiling systems, standard grid, or drywall — 375 to 1000 delivered lumens per foot, 80/90 CRI, up to 133 LPW.
| Luminous flux | 375–1000 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Recessed (specialty 6" ceiling / grid / drywall) |
| Dimensions | 6" nominal width (6.875" max drywall frame); 4' and 8' nominal housing lengths; drywall cutout 5.625" x 47.6" (4') or 5.625" x 95.6" (8') |
| Distribution | Direct |
| Finishes | Matte White |
| Dimming | 0-10V 10% (LD1) or 1% (L11) standard on 120/277V UNV; Lutron Hi-Lume EcoSystem 1% (LH1), step dimming (SD5); Connected Solutions options: Wattstopper PLUS (WSPC), Acuity nLight 1% (NLT1), Current NX Enabled 1% (NXE1), WaveLinx Pro 1% (WLXP) |
| Rated environments | Dry, Damp location, Chicago Plenum option |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Avenue 6 LED is a 6"-wide recessed architectural linear luminaire designed to integrate with specialty 6" ceiling systems, standard grid, or drywall, delivering comfortable general illumination that complements the ceiling plane. A one-piece 20-gauge steel housing carries a proprietary linear LED module with LEDs placed for a uniform appearance, and modules and drivers are replaceable from below. Shielding is offered as corrugated regressed trim, solid regressed trim, or a flush frosted acrylic lens (.118" thick) over High Reflectance White steel reflectors. Delivered output runs 375, 625, 875, and 1000 lumens per foot (1500-4000 delivered lumens on a 4' housing), reaching up to 133 LPW; the solid regressed trim applies a 1.3 lumen multiplier and the 90+ CRI option a 0.87 multiplier. The module is available at 2700K, 3000K, 3500K, and 4000K in both 80+ and 90+ CRI at 3 SDCM. The standard 120/277V UNV driver offers 0-10V dimming to 10% (LD1) or 1% (L11), with Lutron Hi-Lume EcoSystem 1% (LH1), step dimming (SD5), and Connected Solutions options including Wattstopper PLUS (WSPC), Acuity nLight 1% (NLT1), Current NX Enabled 1% (NXE1), and WaveLinx Pro 1% (WLXP). Factory options include Chicago Plenum, emergency battery (10W for 90 minutes), and flex whips. Finished in Matte White polyester powder coat over a multi-stage pretreatment, Avenue 6 is UL and cUL listed for indoor dry or damp locations, reports L70 at greater than 60,000 hours, and carries a five-year limited warranty.
Pick from Avenue 6's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
